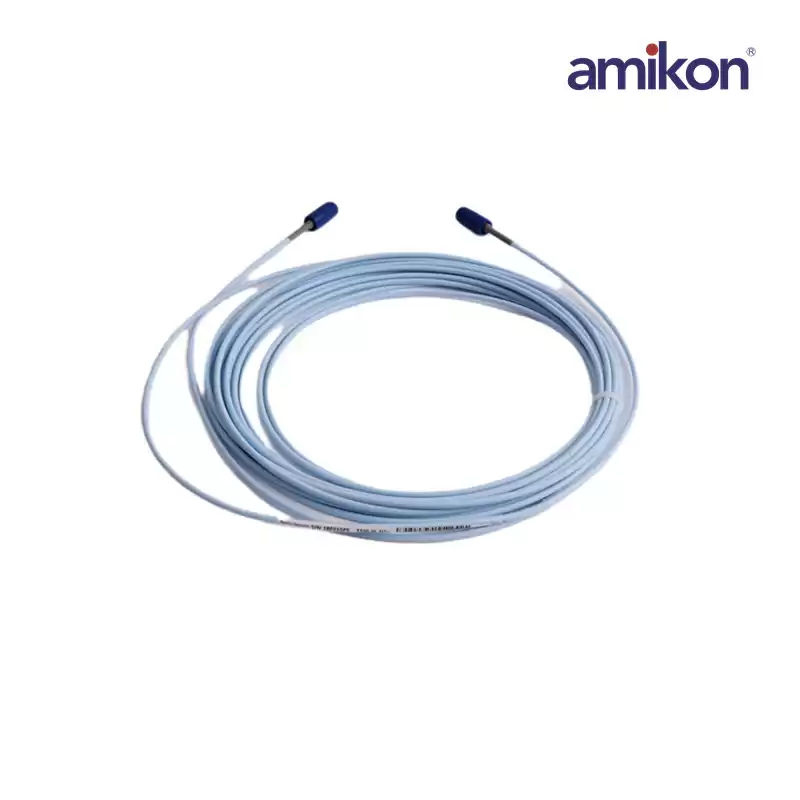

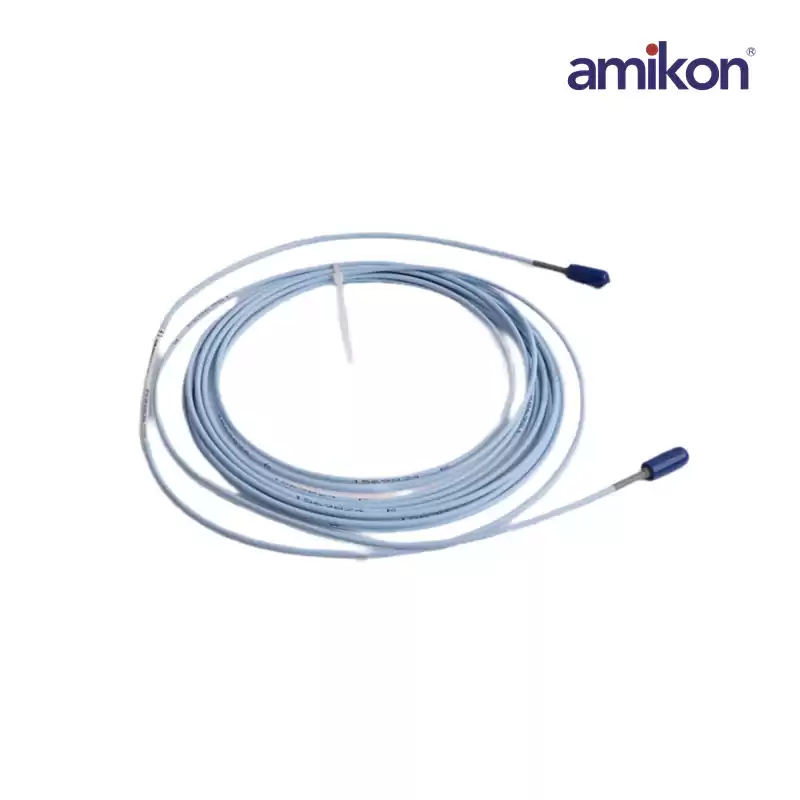

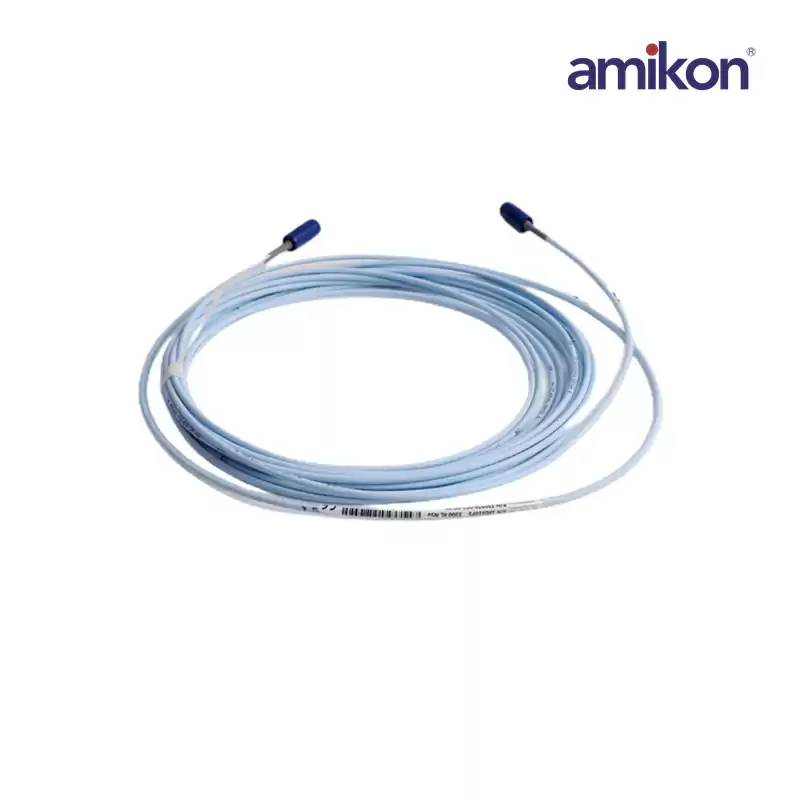

Full Description:BENTLY NEVADA 330930-060-00-05 Extension Cable The 3300 XL NSv* Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors and other machines with tight installation requirements
|
|
The 330930-060-00-00 is Standard Extension Cable.3300 XL Probes and Extension Cables can also be ordered with a FluidLoc® cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior. The connector protector option provides additional protection of the connectors in a humid or moist environment.
ClickLoc connectors lock into place, preventing the connection from becoming loose. The patented TipLoc™ molding method provides a robust bond between the probe tip and the probe body. The probe cable is securely attached to the probe tip utilizing our patented CableLoc™ design that provides 330 N (75 lb) pull strength.3300 XL Probes and Extension Cables can also be ordered with a FluidLoc® cable option
The 3300 XL 11 mm Proximity Transducer System consists of:
• 3300 XL 11 mm probe
• 3300 XL 11 mm extension cable
• 3300 XL 11 mm Proximitor® Sensor1
|
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil)
output for non-contacting vibration and displacement measurements on fluid
film bearing machines. The large 11 mm tip enables this transducer system to
have a longer linear range compared to our standard 3300 XL 8 mm Transducer
System. It is primarily used in the following applications where the longer linear
range is necessary:
• Axial (thrust) position measurements
• Ramp differential expansion measurements on steam turbines
• Rod position or rod drop measurements on reciprocating compressors
• Tachometer and zero speed measurements
• Phase reference (Keyphasor®) signals
|
