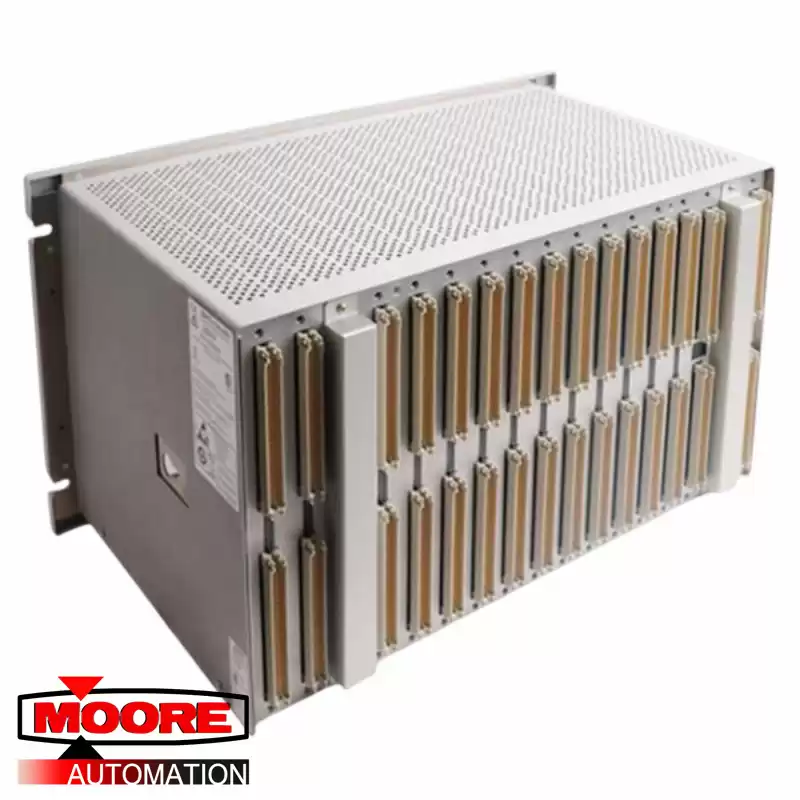

BENTLY NEVADA | 3500/05-02-04-00-00-00 | System Rack

Product Discription

Manufacturer : Bently Nevada
Product No. : 3500/05-02-04-00-00-01
Product type : System Rack
02 - Rack size : 12-inch Mini-Rack (7 module slots)
04 - Mounting options : Panel Mount Option, Mini-Rack
00 - Agency approval option : None
00 - Reserved : None
01 - European Compliance option : CE
The 3500 System rack design holds all 3500 monitor modules and rack power
supplies. It allows the various 3500 modules to communicate with one another and the power supplies to distribute power to each module as required. 3500 Racks are available in two sizes:
1. Full-size Rack – 19-inch EIA rack with 14 available module slots
2. Mini-Rack – 12-inch rack with 7 available module slots
3500 racks are available in three formats:
1. Panel mount – This rack format mounts to rectangular cut-outs in panels, and secures to the panel using clamps supplied with the rack. Wiring connections and I/O modules are accessible from the rear of the rack.
2. Rack mount – This rack format mounts the 3500 rack on 19-inch EIA rails. Wiring connections and I/O modules are accessible from the rear of the rack.
3. Bulkhead mount – This rack format mounts the rack against a wall or panel when it is not possible to access the rear of the rack. Wiring connections and I/O modules are accessible from the front of the rack. The 3500/05 Mini-Rack is not available in this format.
