General Information：
|
Part number
|
3500/15 106M1079-01
|
|
Manufacturer
|
BENTLY NEVADA
|
|
Origin
|
USA
|
|
Description
|
POWER SUPPLY MODULE
|
|
Payment
|
T/T
|
|
Lead Time
|
In stock
|
-------------------------------------------------------------

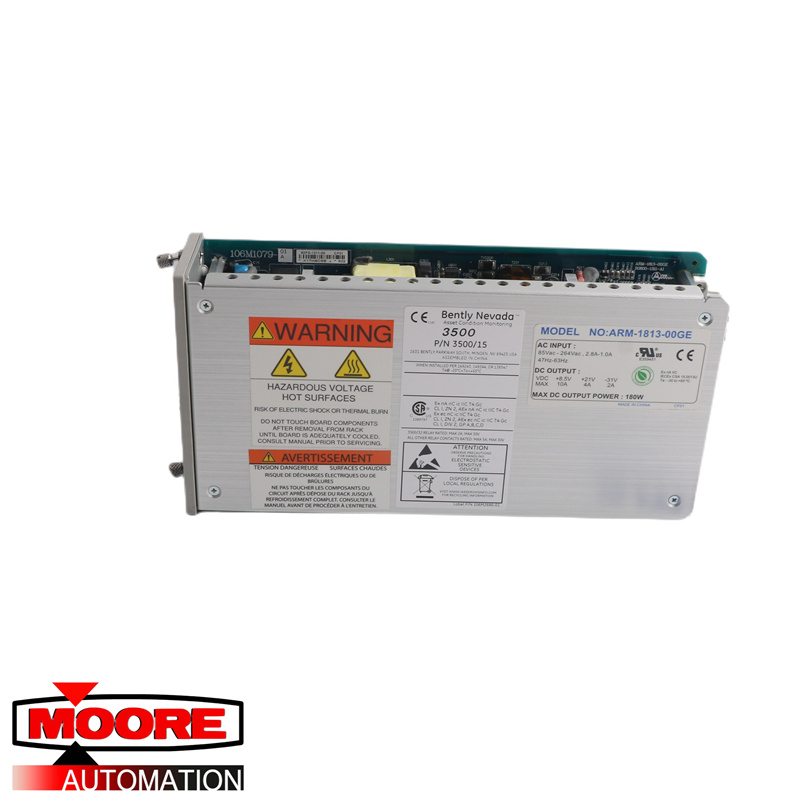

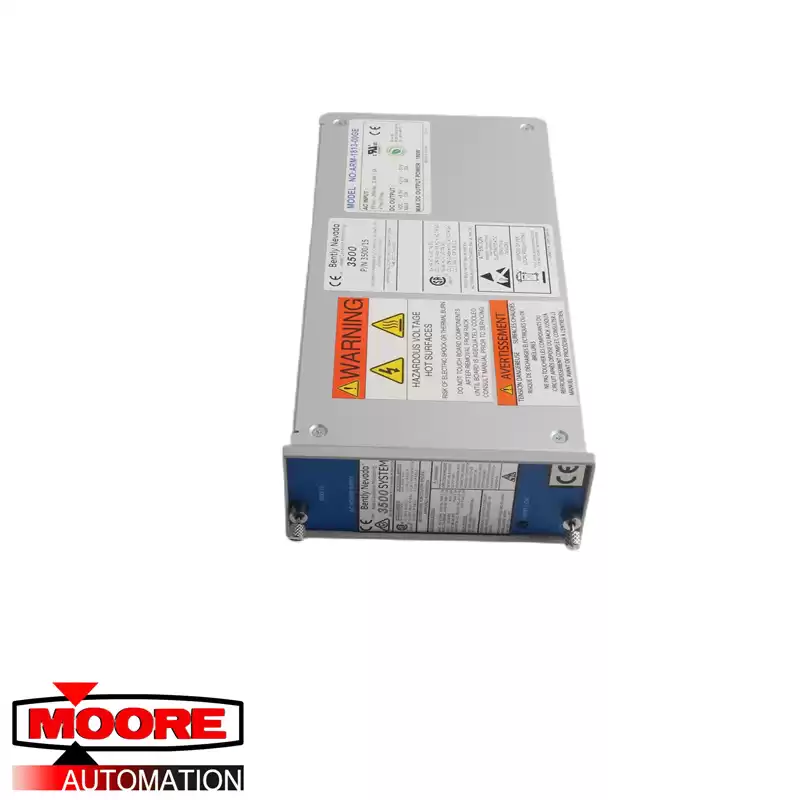

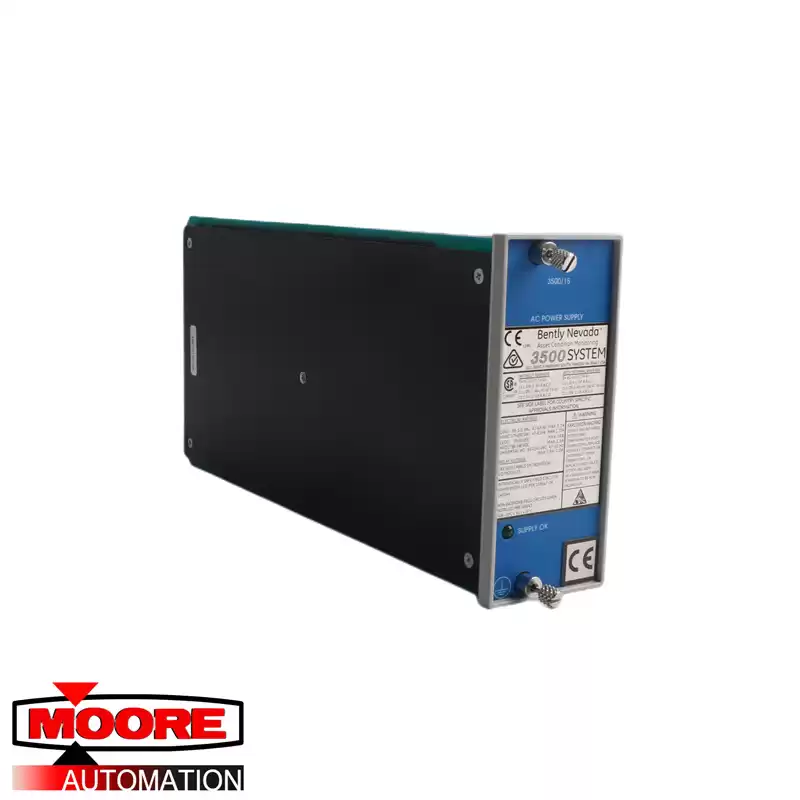

ABOUT 3500/15 106M1079-01:
The 3500/15 AC and DC Power Supplies are half-height modules and
must be installed in designated slots on the left side of the rack. The
3500 rack can contain one or two power supplies with any combinations
of AC and DC. Either supply can power a full rack.
When two power supplies are installed in a rack, the one in the lower
slot acts as the primary supply, and the other in the upper slot acts as
the backup supply. If installed, the second supply is the backup for the
primary one.
Removing or inserting either power supply module does not disrupt
operation of the rack as long as a second power supply is installed.
The 3500/15 AC and DC Power Supplies accepts a wide range of input
voltages and converts them to voltages acceptable for use by other
3500 modules. The following power supplies are available with the 3500
Series Machinery Protection System:
-Universal AC Power
-High Voltage DC Power Supply
- Low Voltage DC Power Supply
RFQ--please contact sales manager John Yang
