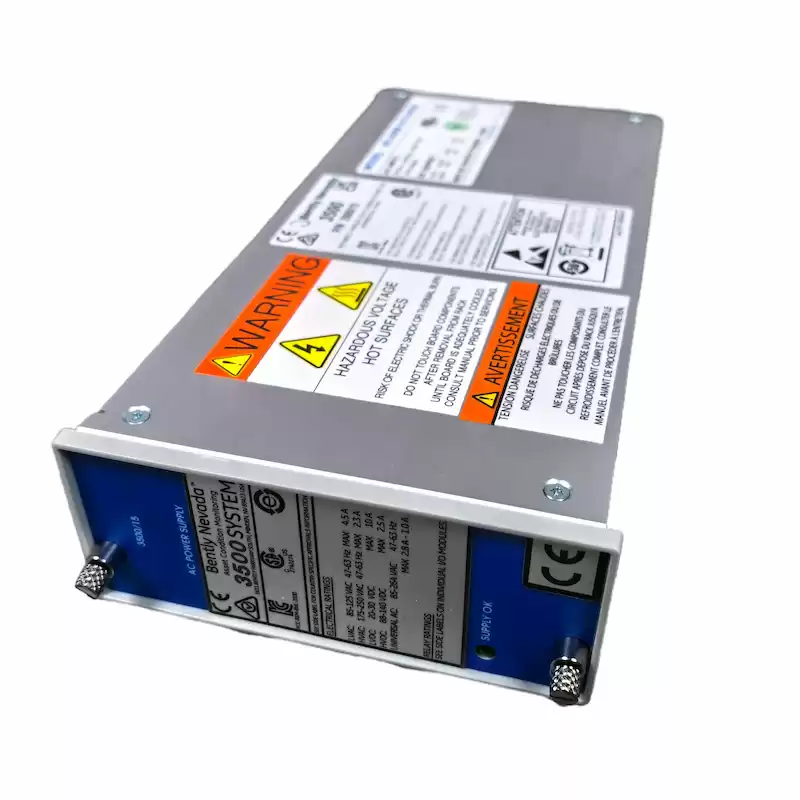

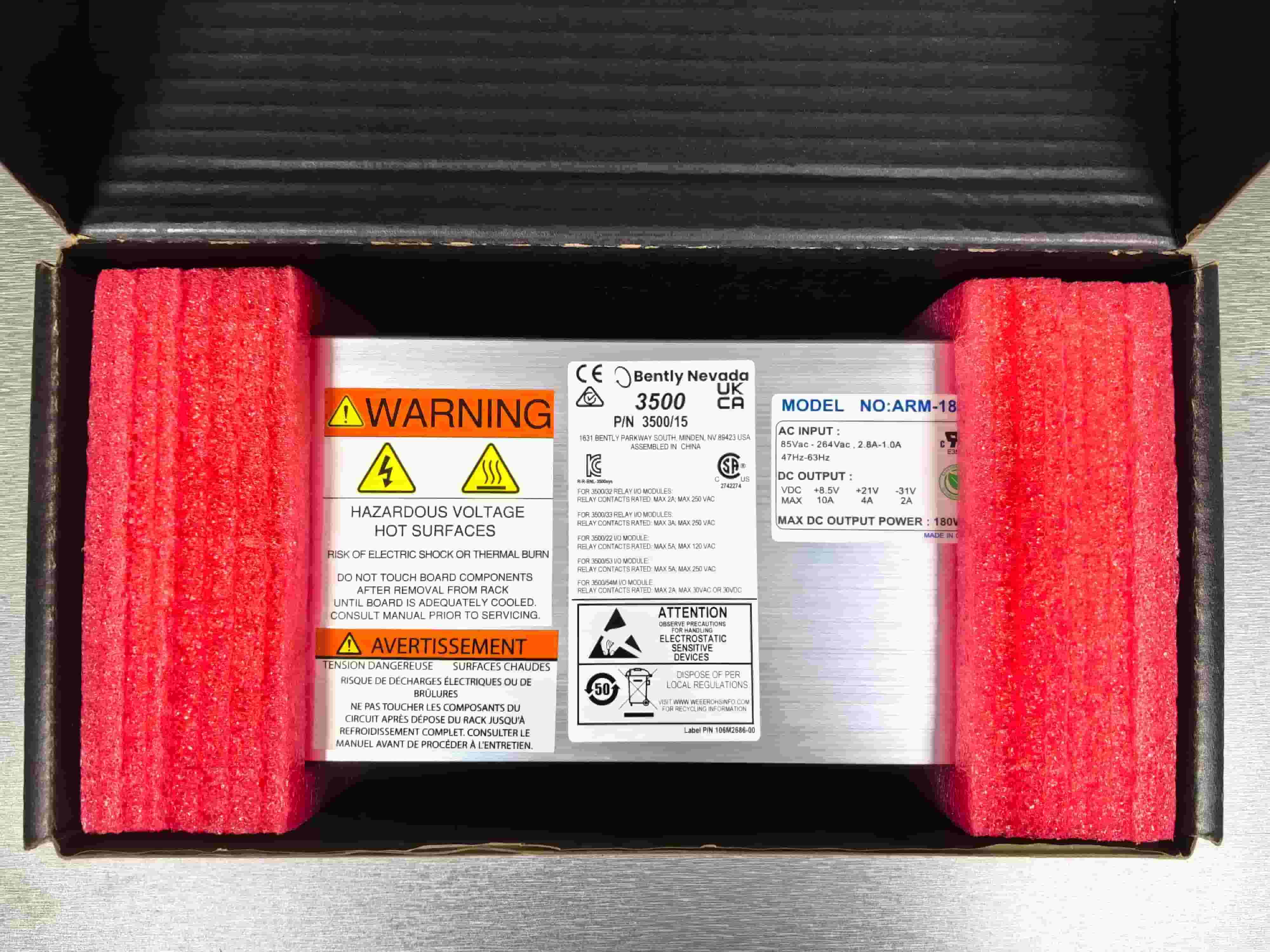

Bently Nevada 3500/15 106M1079-01 Universal AC Power Supply Module
The 3500/15 AC and DC Power Supplies are half-height modules and must be installed in designated slots on the left side of the rack. The 3500 rack can contain one or two power supplies with any combinations of AC and DC. Either supply can power a full rack.
When two power supplies are installed in a rack, the one in the lower slot acts as the primary supply, and the other in the upper slot acts as the backup supply. If installed, the second supply is the backup for the primary one.
The 3500/15 AC and DC Power Supplies accepts a wide range of input voltages and converts them to voltages acceptable for use by other 3500 modules. The following power supplies are available with the 3500 Series Machinery Protection System:
· Universal AC Power
· High Voltage DC Power Supply
· Low Voltage DC Power Supply
Technical Specifications
| Manufacturer |
Bently Nevada |
| Part Number |
106M1079-01 |
| Ordering Information |
106M1079-01 |
| Product Catalog |
3500/15 |
| Description |
Universal AC Power Supply Module |
| Voltage |
110 to 220 Vac |
| Current |
2.8 A rms |
| Dimension |
120.7 mm x 50.8 mm x 251.5 mm |
| Weight |
1.39 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
