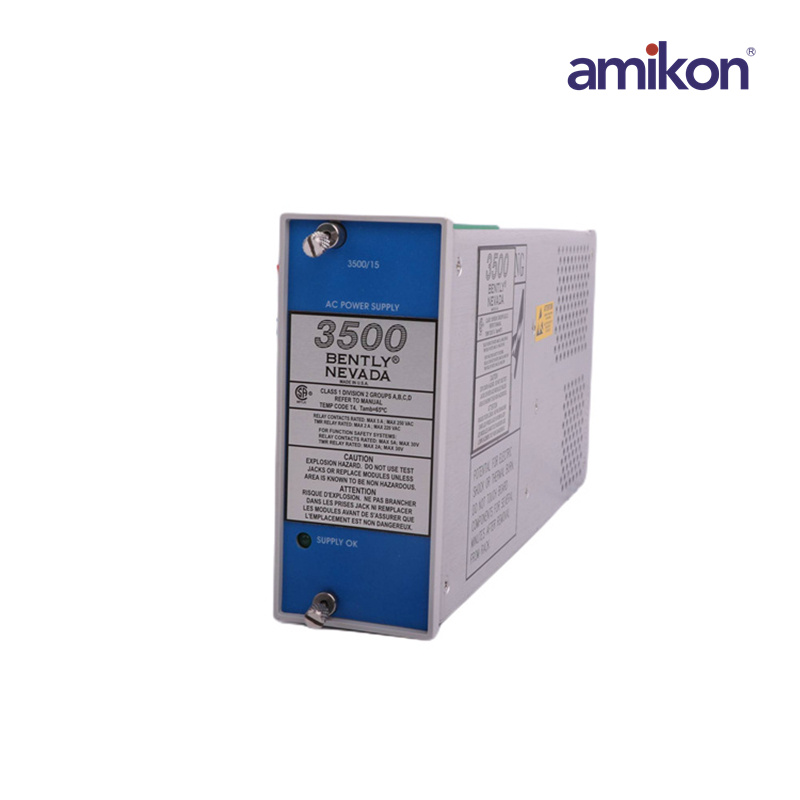

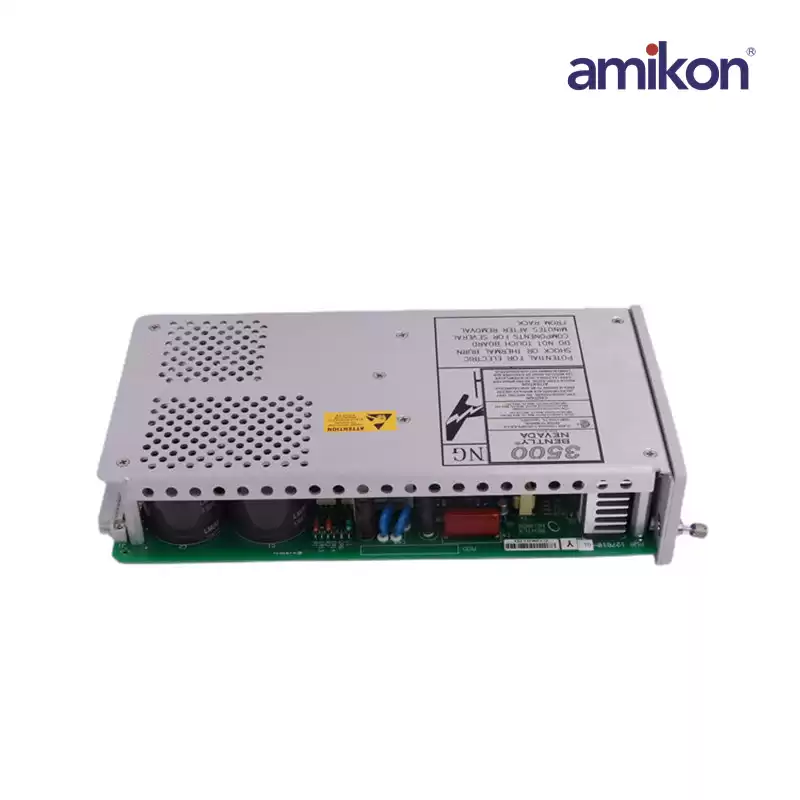

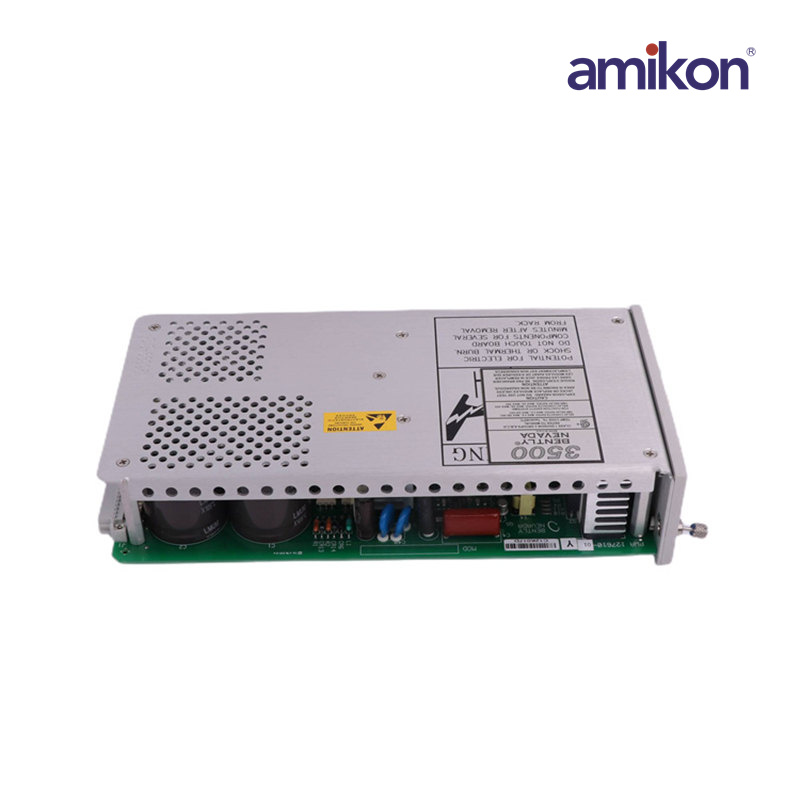

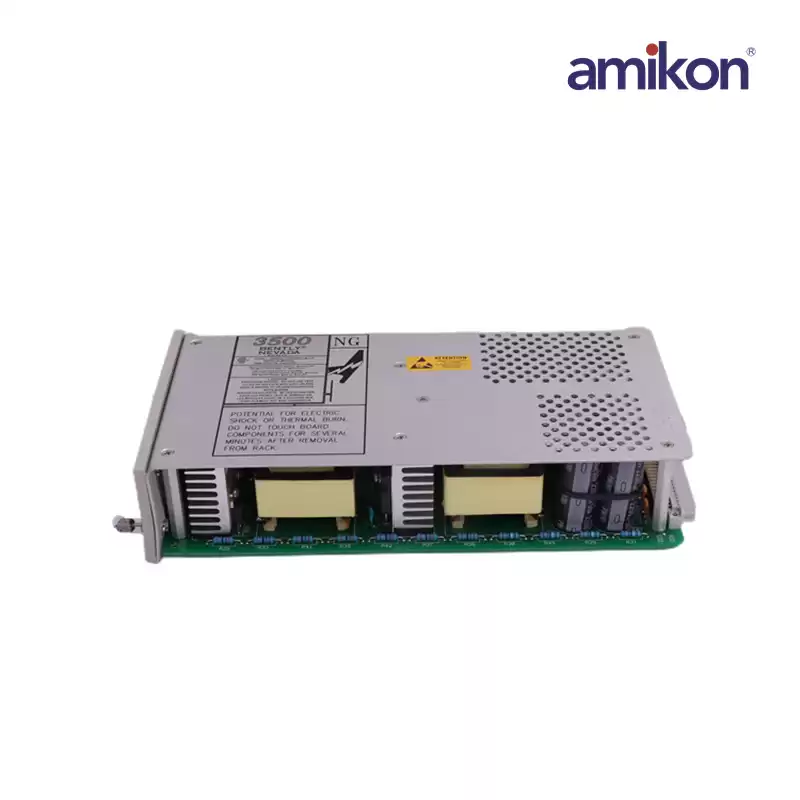

Bently Nevada 3500/15 129486-01 Power Supply Module

Bently Nevada 3500/15 129486-01 Power Supply Module

5cmx25cmx12cm

Weight：

1.15kg

Storage Temperature  ：

-30°C to +85°C

Operating Temperature：

-20°C to +65°C

The 3500/15 Power Supply is a half-height module and must be installed in designated slots on the left side of the rack. The 3500 rack can contain one ortwo power supplies with any combinations of AC and DC. Either supply can power a fullrack.

The 3500/15 Power Supply accepts a wide range of input voltages and converts them to voltages acceptable for use by other 3500 modules. When two power supplies are installed in a rack, the one in the lower slot acts as the primary supply, and the otherin the upper slot acts as the backup supply. If installed, the second supply is the backup forthe primary one.
