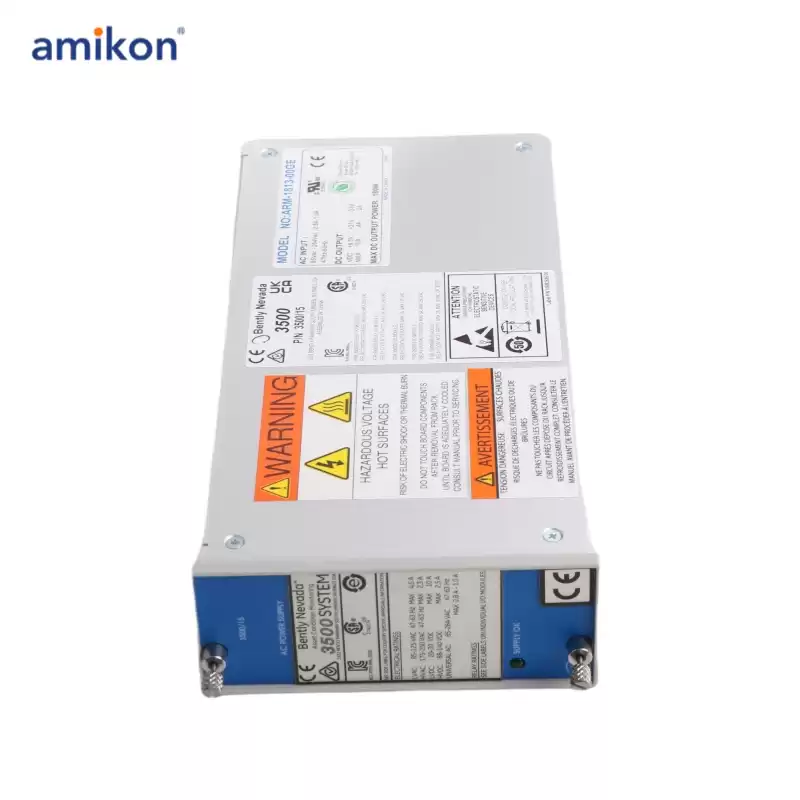

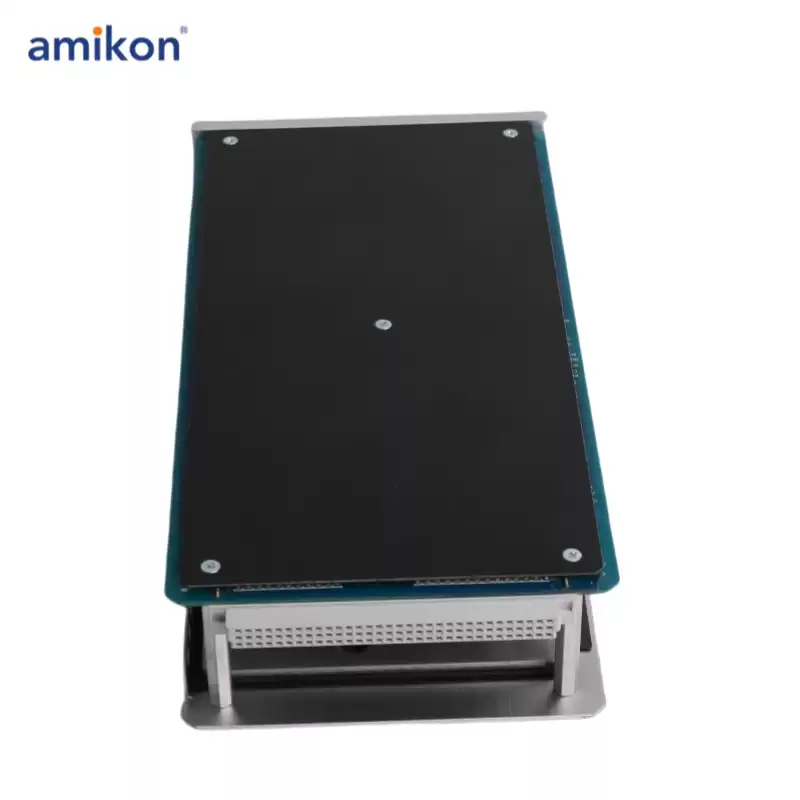

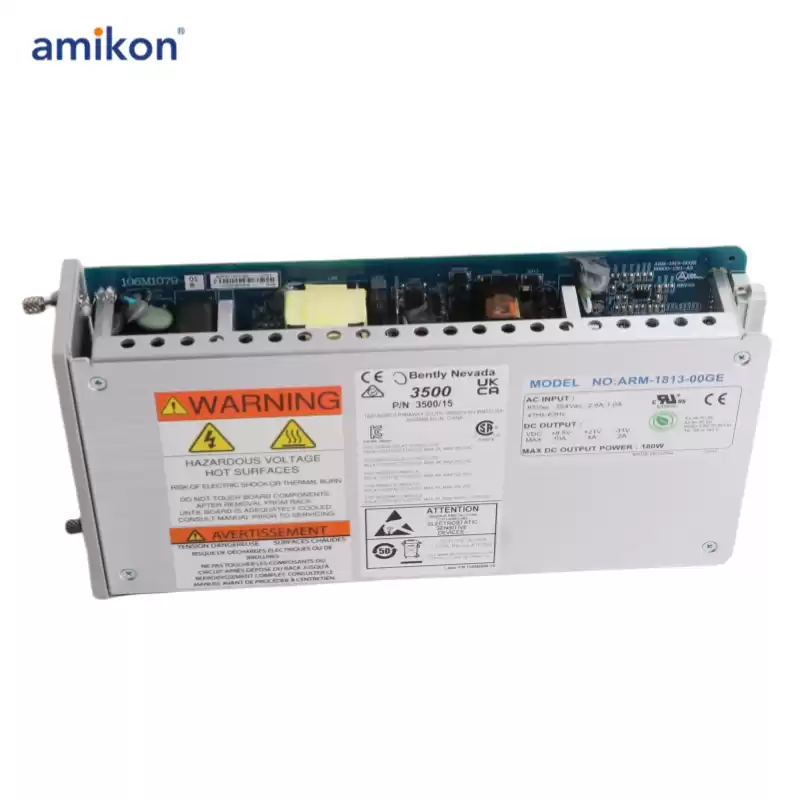

The 3500/15 Power Supply is a half-height module and must be installed in designated slots on the left side of the rack. The 3500 rack can contain one ortwo power supplies with any combinations of AC and DC. Either supply can power a fullrack.
When two power supplies are installed in a rack, the one in the lower slot acts as the primary supply, and the otherin the upper slot acts as the backup supply. If installed, the second supply is the backup forthe primary one.
Removing orinserting either power supply module does not disrupt operation of the rack as long as a second power supply is installed.
The 3500/15 Power Supply accepts a wide range of input voltages and converts them to voltages acceptable for use by other 3500 modules. The following power supplies are available with the 3500 Series Machinery Protection System:
-Legacy AC Power
-Universal AC Power
-High Voltage DC Power Supply
-Low Voltage DC Power Supply
|
High Voltage DC
|
|
Description:This option uses the High Voltage DC Power Supply and the High Voltage DC Power Input
Module (PIM).
|
|
Input voltage:88 to 140 Vdc
|
|
Low Voltage DC
|
|
Description
|
|
Description:This option uses the Low Voltage DC Power Supply and the Low Voltage DC Power Supply Input Module (PIM).
|
|
Input voltage:20 to 30 Vdc
|
