3500/22-01-01-01
|
| Dimensions ： |
2.6cmx25.8cmx24cm
|
Weight：
|
0.8kg
|
|
Storage Temperature ：
|
-30°C to +85°C
|
Operating Temperature：
|
-15°C to +65°C
|
|

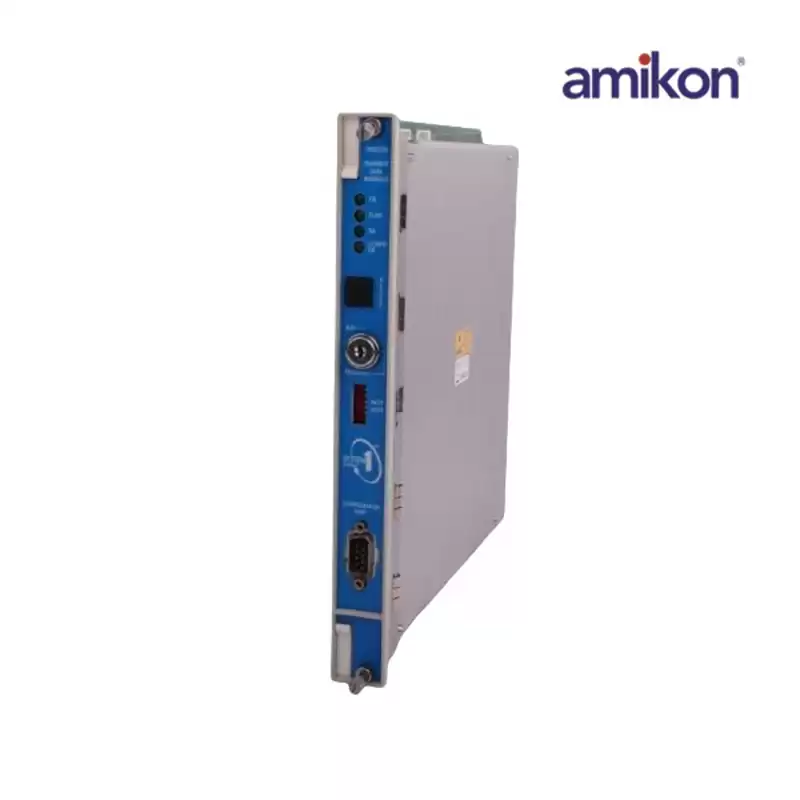

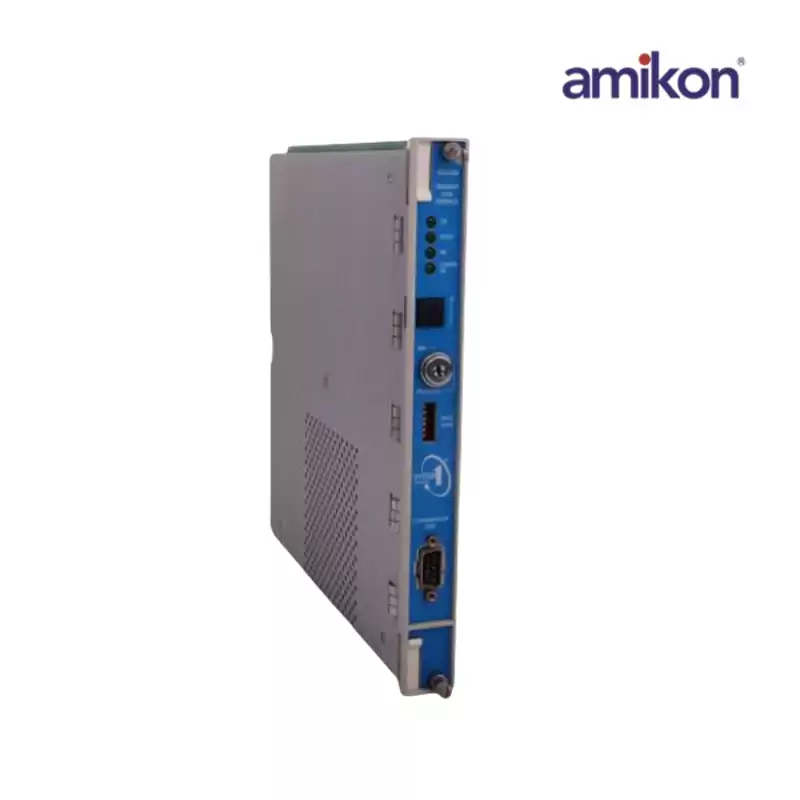

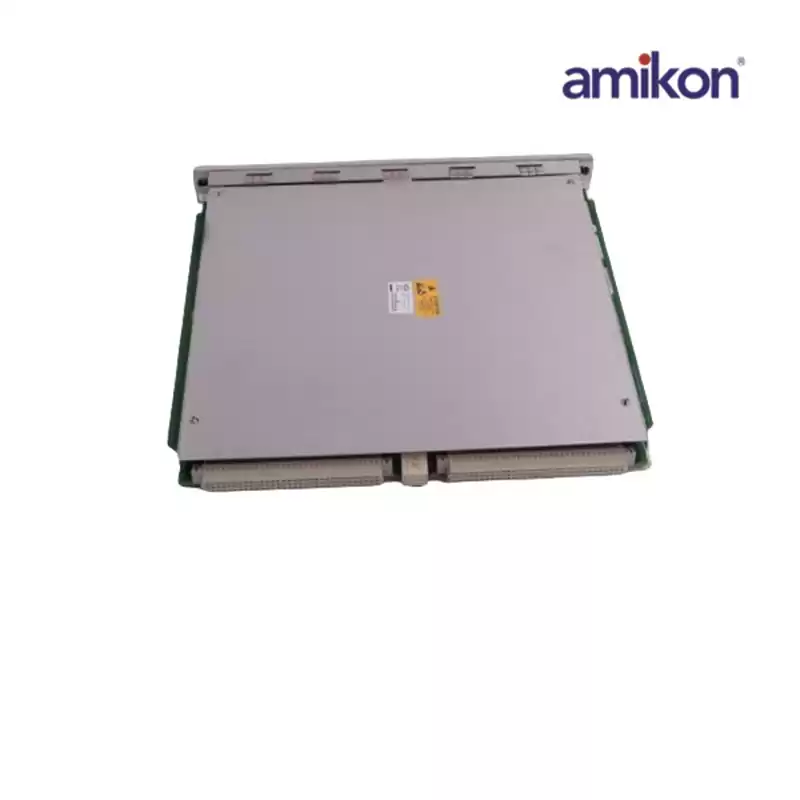

The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
The TDI resides in the slot adjacent to the power supplies of a 3500 rack. It interfaces with M series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady state and transient dynamic (waveform) data and pass this data through an Ethernet link to the host software.
|
