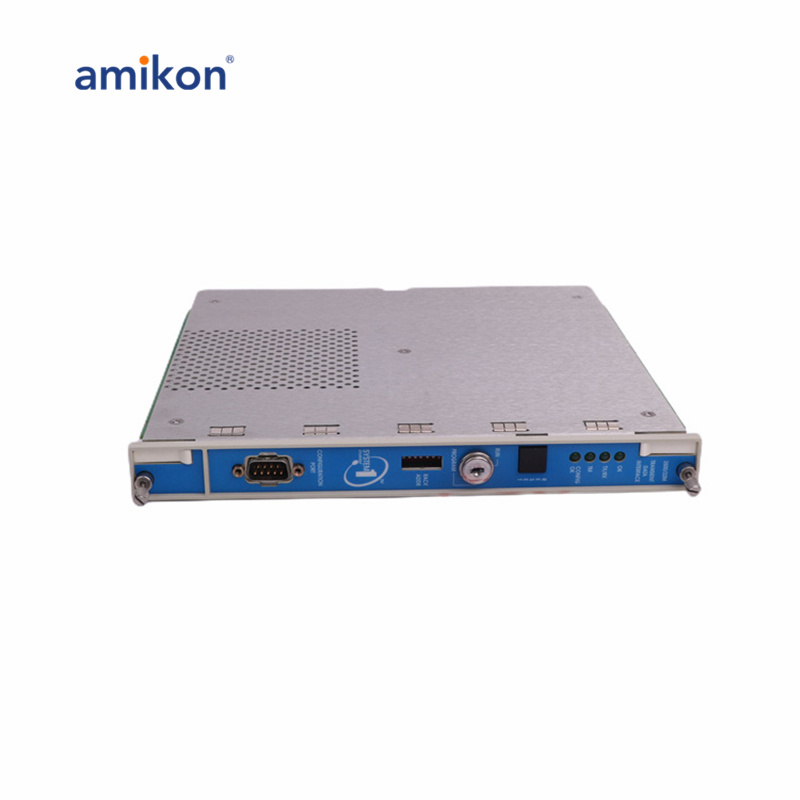

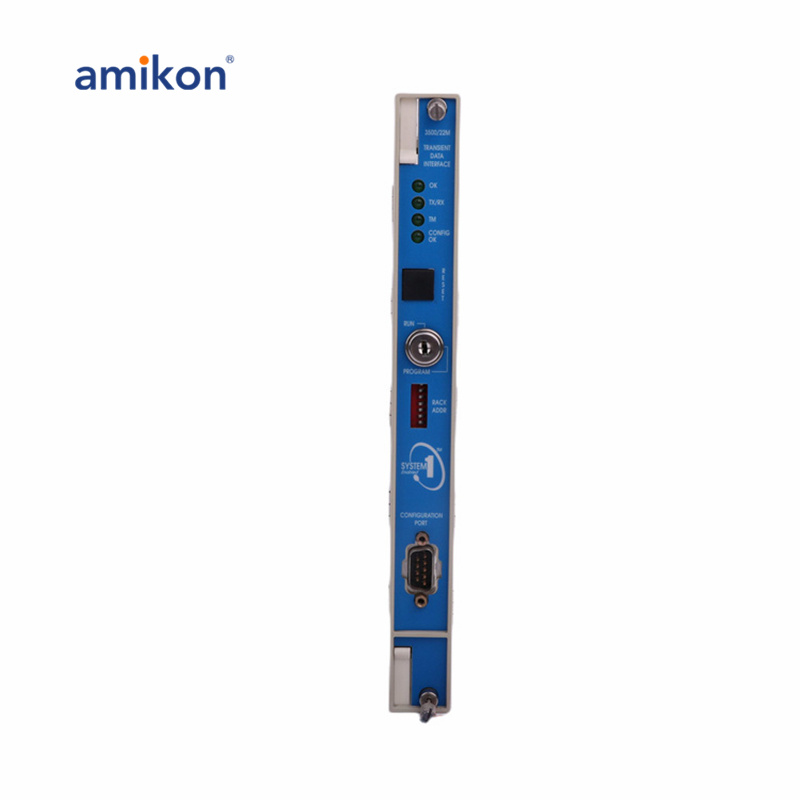

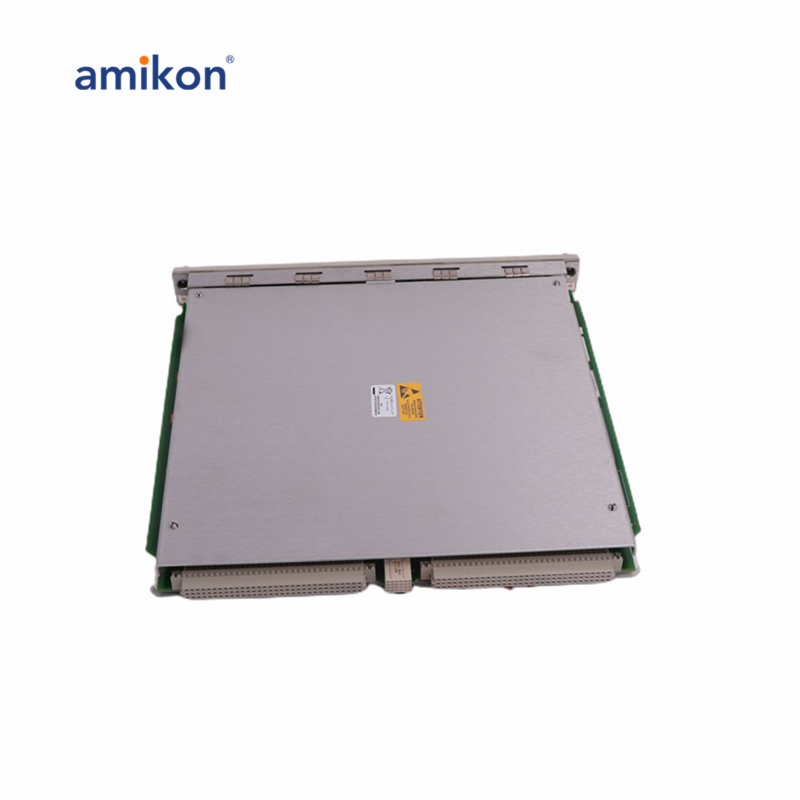

Bently Nevada 3500/22M 138607-01 Transient Data Interface Module

Brand new and original sealed//Same Day Shipment

Warranty PeriodOne Year Warranty
Dimensions2.2 cm x 12.4 cm x 12.6 cm
Weight0.8 kg
Country of OriginUSA
Brand/ManufaturerBently Nevada
Payment Term100% Advance Payment T/T Bank Wire Transfer

Facebook Twitter Pinterest LinkedIn 分享

Description

Manufacturer	Bently Nevada	Product type	3300 XL 8 mm Proximity Probes
Product No.	330104-00-06-10-01-CN	Made in	U.S.A
Place of shipment	Xiamen	Tariff Code	8537101190
The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet. The TDI resides in the slot adjacent to the power supplies of a 3500 rack. It interfaces with M series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady state and transient dynamic (waveform) data and pass this data through an Ethernet link to the host software. Refer to the Compatibility section at the end of this document for more information.Static data capture capability is standard with the TDI. However, using an optional Channel Enabling Disk will allow the TDI to capture dynamic and high-resolution transient data as well. The TDI incorporates the communication processor function within the 3500 rack. Although the TDI provides certain functions common to the entire rack, it is not part of the critical monitoring path and has no effect on the proper, normal operation of the overall monitor system for automatic machinery protection. Every 3500 rack requires one TDI or RIM, which always occupies Slot 1 (next to the power supplies).		Specification： Inputs Power Consumption：10.5 Watts Data Front Panel：USB-B 10Base-T/100Base-TX I/O：10Base-T or 100Base-TX Ethernet, autosensing 100Base-FX I/O：100Base-FX Fiber-Optic Ethernet Outputs Front Panel LEDs OK LED: Indicates when the 3500/22M is operating properly TX/RX LED: Indicates when the 3500/22M is communicating with the other modules in the rack TM LED: Indicates when the 3500 rack is in Trip Multiply mode CONFIG OK LED: Indicates that the 3500 rack has a valid configuration
