Product Discription

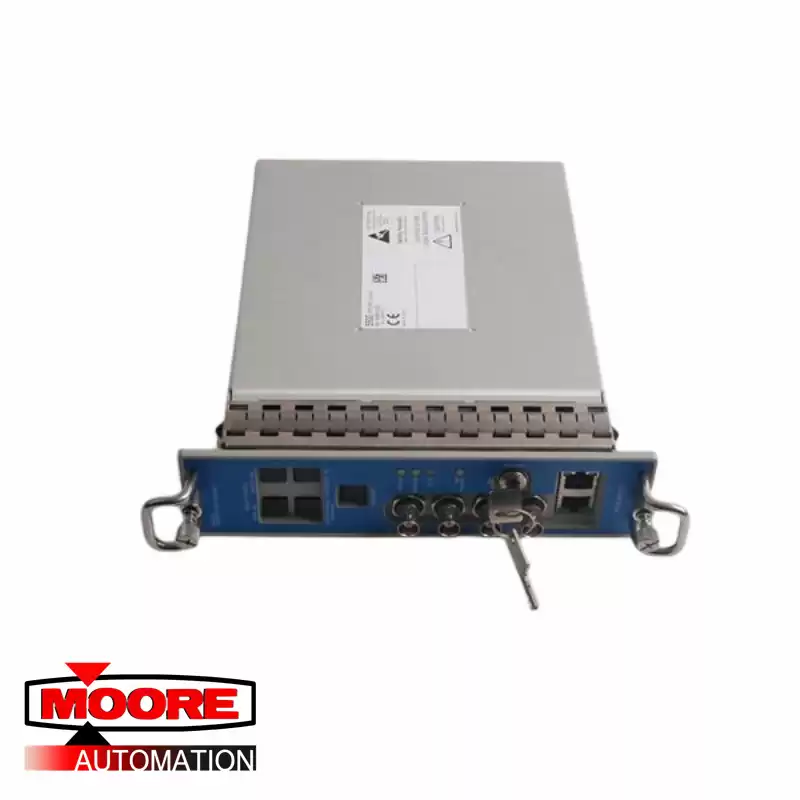

The 3500 ENCORE System provides continuous, online monitoring suitable for
machinery protection applications and is designed to fully meet the
requirements of the American Petroleum Institute’s API 670 standard for such
systems. It represents our most capable and flexible system in a traditional rackbased design, and represents numerous features and advantages not provided
in other systems. The system’s highly modular design consists of:
-
3500/05E Instrument Chassis (required)
-
3500/15E Power Supplies (AC, DC low or DC high required)
-
3500/23E Transient Data Interface (required)
-
3500 Rack Configuration Software (required)
-
One or more 3500/42E Vibration Monitor Modules
-
One or more 3500/45E Position Monitor Modules
-
One or more 3500/50E Tachometer Modules
-
One or more 3500/61E Temperature Modules
-
One or more 3500/67E Temperature Modules
-
Internal or external intrinsic safety barriers, or galvanic isolators for
hazardous area installations (optional)
-
Color front panel displays
These are described in more detail in the following section and in the individual
datasheets for each system component
