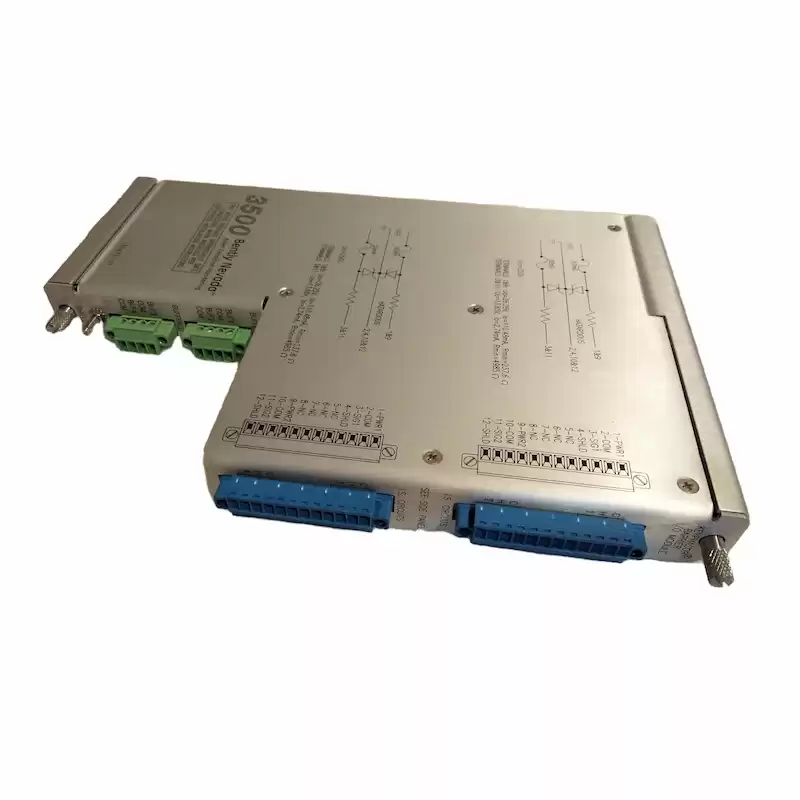

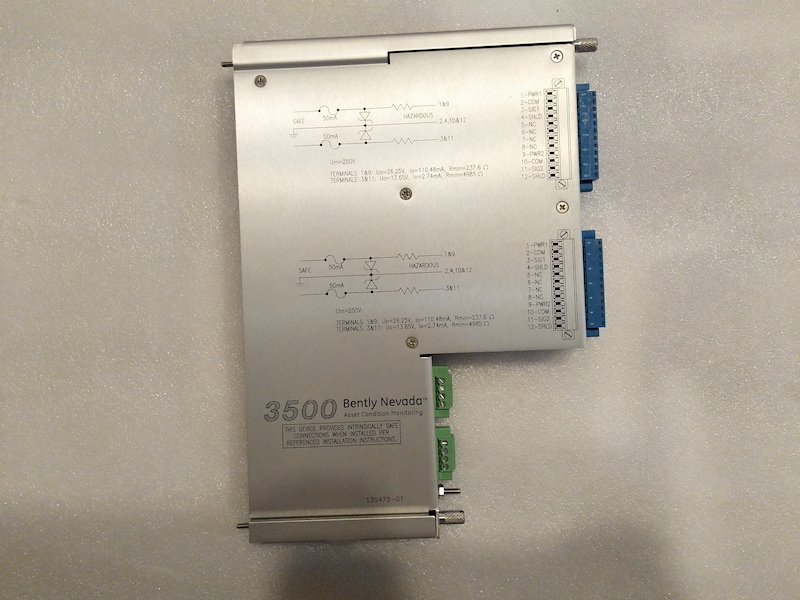

Bently Nevada 135473-01 Keyphasor I/O Module with Internal Barriers and Internal Terminations
The 135473-01 is a Keyphasor I/O Module with Internal Barriers and Internal Terminations, it's manufactured and designed by Bently Nevada. It is a part of the Bently Nevada 3500/25 Enhanced Keyphasor Module.
The Isolated Keyphasor I/O module is designed for applications where the Keyphasor signals are tied in parallel to multiple devices and require isolation from other systems, such as a control system. The Isolated I/O module was created specifically for Magnetic Pickup applications but is compatible with and will provide isolation for Proximitor* applications as long as an external power supply is provided.
The intent of this I/O module was primarily to measure shaft speed and not phase. The module can provide phase measurements, but this I/O introduces a slightly higher phase shift than the Non-Isolated I/O version. Figure 1 shows the amount of phase shift that the Isolated I/O modules will add at different machine speeds.
Enhanced product features include generation of once-per-turn event signals from multievent-per-turn inputs, field-upgradeable firmware, and asset management data reporting.
Technical Specifications
| Manufacturer |
Bently Nevada |
| Part Number |
135473-01 |
| Ordering Information |
3500/25-01-03-00 |
| Product Catalog |
3500/25-01-03-00 |
| Description |
Keyphasor I/O Module with Internal Barriers and Internal Terminations |
| Voltage |
24 Vdc |
| Current |
40 mA |
| Dimension |
241.3 mm x 24.4 mm x 103.1 mm |
| Weight |
0.46 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
