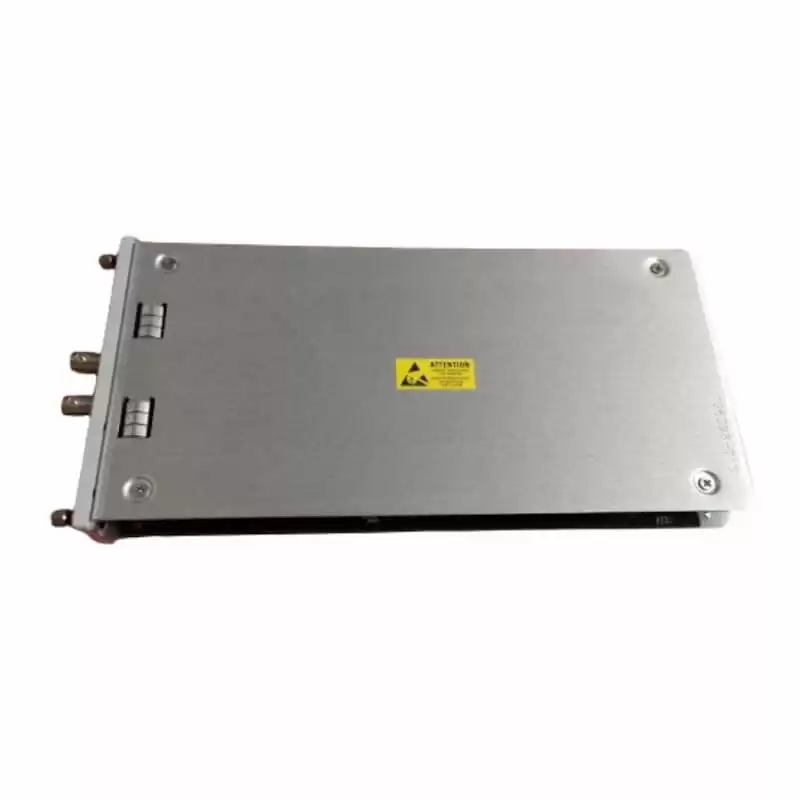

Bently Nevada 3500/25 149369-01 Enhanced Keyphasor Module
The monitor modules in a 3500 rack. The module receives input signals from proximity probes or magnetic pickups anconverts the signals to digital Key phasor signals that indicate when the Key phasor mark on the shaft coincides with the Key phasor transducer. The 3500 Machinery Protection System can accept up to four Key phasor signals for normal configuration and up to eight Key phasor signals in a paired configuration.
The Enhanced Key phasor Module is an improved 3500 system module. It offers expanded Key phasor signal processing capabilities over the previous design while maintaining complete downward-compatibility in terms of form, fit and function with existing Key phasor modules for use in legacy systems. The Key phasor module, PWA 125792-01, is completely replaced by the updated 149369-01 module.
When a system Key phasor input is required for Triple Modular Redundant (TMR) applications, the 3500 system should employ two Key phasor modules. In this configuration, the modules work in parallel to provide both a primary and secondary Key phasor signal to the other modules in the rack.
Technical Specifications
| Manufacturer |
Bently Nevada |
| Part Number |
149369-01 |
| Ordering Information |
3500/25-01-01-00 |
| Product Catalog |
3500/25 |
| Description |
Enhanced Key phasor Module |
| Inputs |
3.2 watts |
| Outputs |
-24 Vdc, 40 mA maximum per channel |
| Dimension |
119.9 mm x 24.4 mm x 256.5 mm |
| Weight |
0.34 kg |
