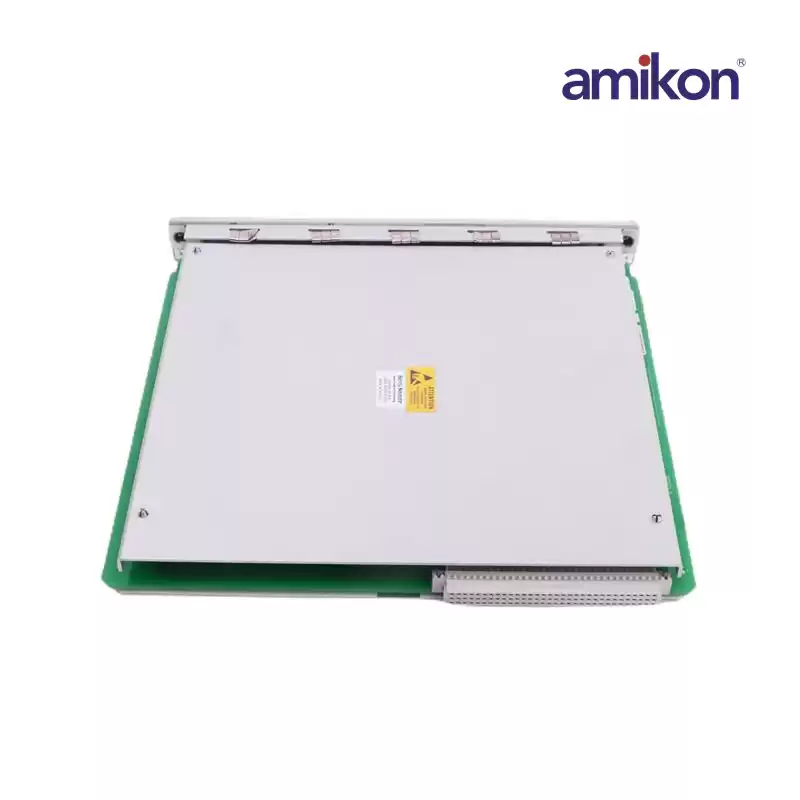

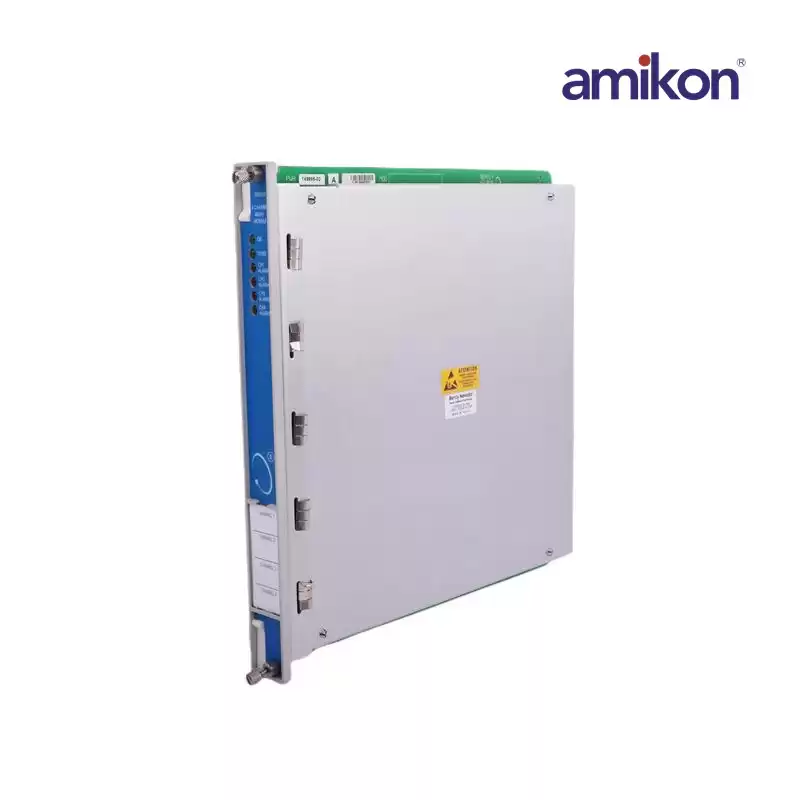

3500/32
|
|
Product Origin: USA
|
Manufacturer：Bently Nevada
|
|
Dimension: 2.6cmx25.4cmx24cm
|
Weight: 0.75KG
|
|
The 3500/32 is 4 Channel Relay Module.The 4-Channel Relay Module is a full-height module that provides four relay outputs. Any number of 4-Channel Relay Modules can be placed in any of the slots to the right of the Rack Interface Module. Each output of the 4-Channel Relay Module can be independently programmed to perform needed voting logic.
|
|
Each relay utilized on the 4-Channel Relay Module includes "Alarm Drive Logic". The Alarm Drive Logic is programmed using AND and OR logic, and can utilize alarming inputs (alerts and dangers) from any monitor channel or any combination of monitor channels in the rack. This Alarm Drive Logic programming uses the 3500 Rack Configuration Software to meet the specific needs of the application.
|
