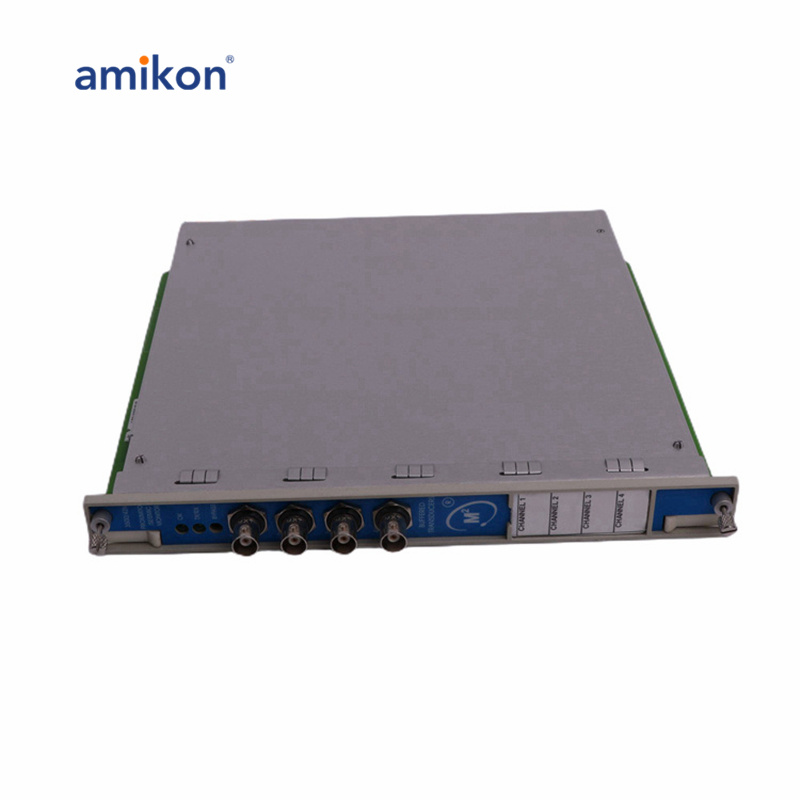

The Bently Nevada 3500/42M Proximitor Seismic Monitor is designed for machinery condition monitoring. It continuously compares monitored parameters against configured alarm setpoints to trigger alarms, ensuring machinery protection. The monitor's channels are programmed in pairs and can perform up to two functions simultaneously. For example, Channels 1 and 2 can execute one function while Channels 3 and 4 handle another or the same function.
It features user-programmable output supply parameters with a single-pole -3dB frequency range of 4 Hz to 4000 Hz or 1 Hz to 600 Hz, offering ±1% accuracy. The monitor supports multiple measurement parameters, including Direct, Gap, 1X Amplitude, 1X Phase Lag, 2X Amplitude, 2X Phase Lag, Not 1X Amplitude, and Smax Amplitude, ensuring comprehensive machinery condition assessment.
|
FAQ:
1. What is the primary function of the 3500/42M monitor?
The 3500/42M Proximitor Seismic Monitor continuously monitors machinery parameters and compares them against configured alarm setpoints to ensure machinery protection.
2. How are the channels on the 3500/42M programmed?
The channels are programmed in pairs, allowing each pair to perform one or two functions simultaneously. For example, Channels 1 and 2 can perform one function, while Channels 3 and 4 perform another or the same function.
3. What machinery does the 3500/42M monitor protect?
It is designed to protect rotating and reciprocating machinery by monitoring vibrations, displacement, and seismic activity, ensuring reliable operation and early detection of issues.
|
