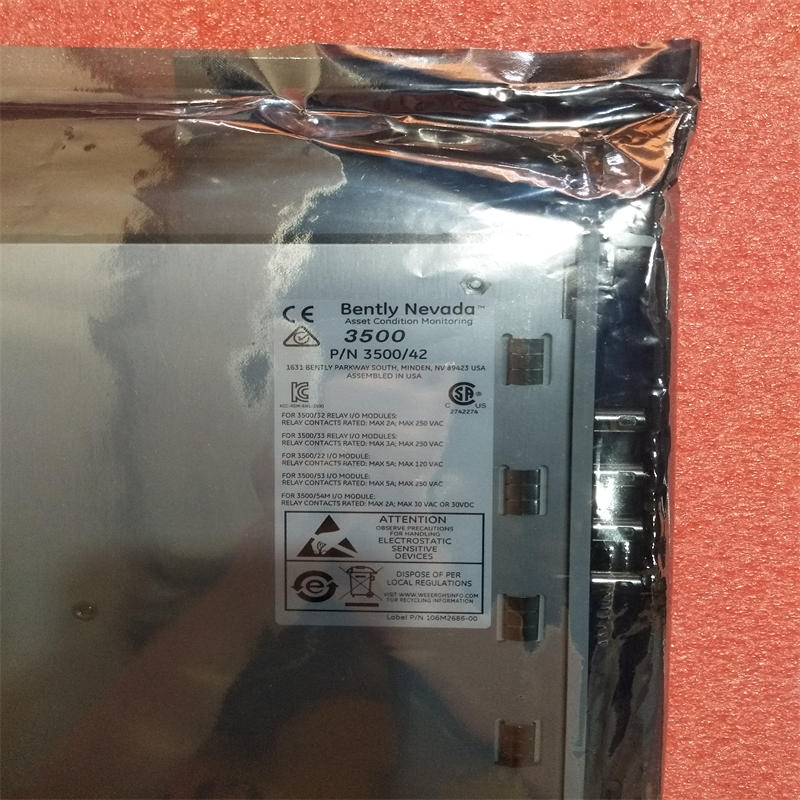

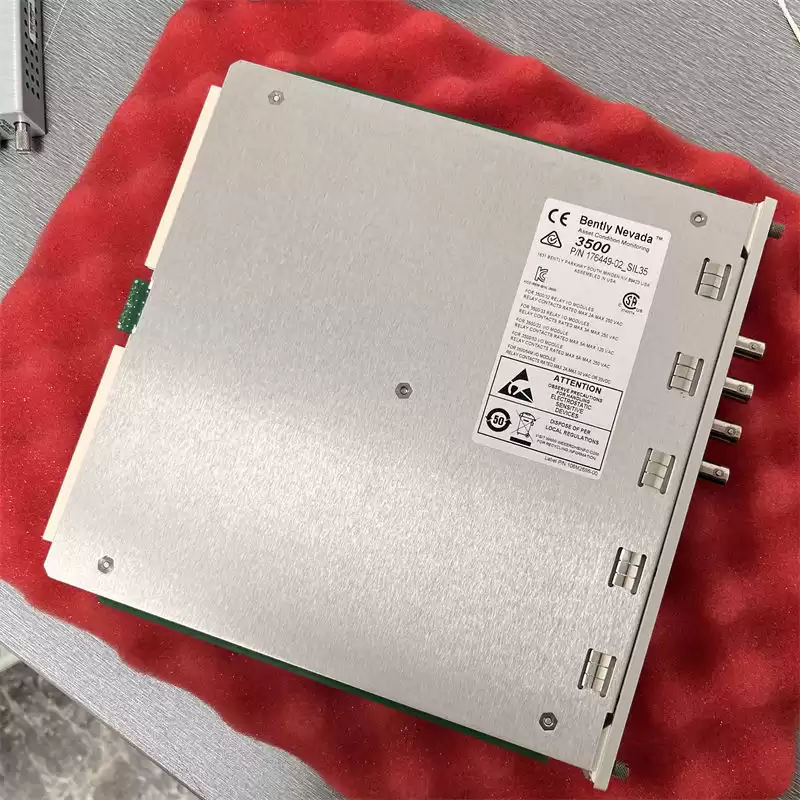

The Bently Nevada 3500/42M 176449-02 Proximitor Seismic Monitor is a component of the Bently Nevada 3500 Series Machinery Protection System. It is designed to monitor and protect critical machinery by measuring and analyzing seismic vibrations.

The 3500/42M Proximitor Seismic Monitor is specifically used for monitoring and protecting large, high-speed rotating machinery such as turbines, compressors, generators, and pumps. It can detect abnormal mechanical conditions, including excessive vibration, thrust bearing movement, and structural vibration, which can indicate potential machinery faults or impending failures.

The monitor utilizes proximity transducers, known as Proximitors, which are mounted on the machinery being monitored. These transducers convert the mechanical motion of the machine into electrical signals that are then processed and analyzed by the monitor. The monitor provides alarms and trips based on user-defined thresholds to indicate abnormal conditions and shut down the machinery if necessary to prevent further damage.

The 3500/42M Proximitor Seismic Monitor interfaces with the 3500 System Rack, which houses the necessary power supplies, processing modules, and communication interfaces for data collection and analysis. The rack can accommodate multiple monitors and other modules to provide comprehensive machinery protection and condition monitoring capabilities.

Overall, the Bently Nevada 3500/42M 176449-02 Proximitor Seismic Monitor is an essential component of the Bently Nevada 3500 Series Machinery Protection System, providing reliable monitoring and protection against potential machinery faults and failures in critical applications.

• » Datasheet Link

Bently Nevada 3500/42M Proximitor Seismic Monitor 176449-02 Datasheet
