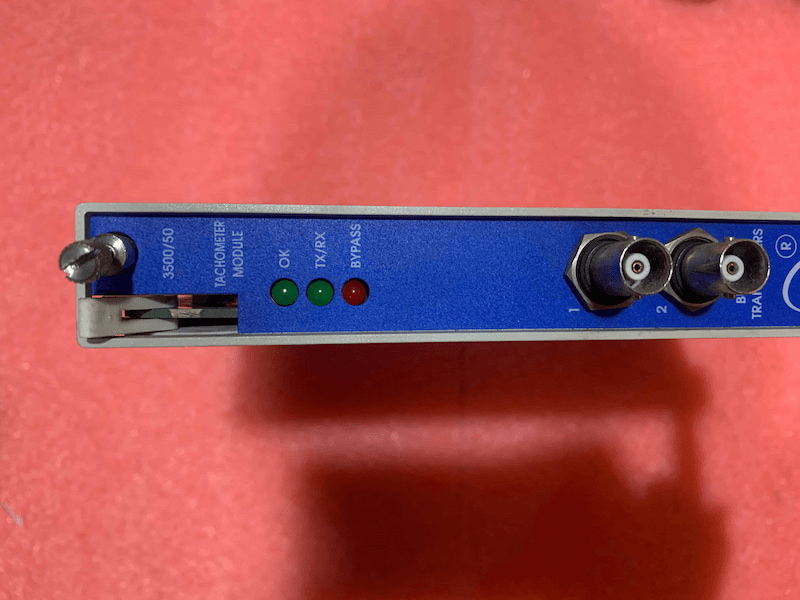

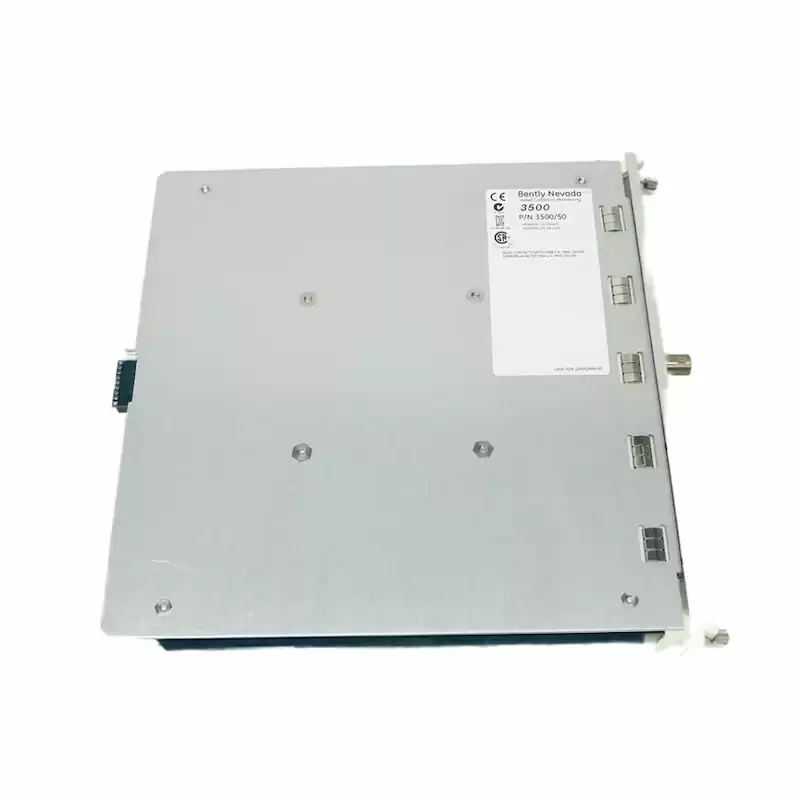

Bently Nevada 3500/50 133388-02 Tachometer Module
The 3500/50 Tachometer Module is a 2-channel module that accepts input from proximity probes or magnetic pickups (except as noted) to determine shaft rotative speed, rotor acceleration, or rotor direction,compares these measurements against user-programmable alarm setpoints, and generates alarms when these setpoints are violated.
Each Tachometer Module accepts up to two transducer signals from proximity probe transducers or magnetic pickups. The input signal range is +10.0 V to -24.0 V. Signals exceeding this range are limited internally by the module.
Technical Specifications
| Manufacturer |
Bently Nevada |
| Part Number |

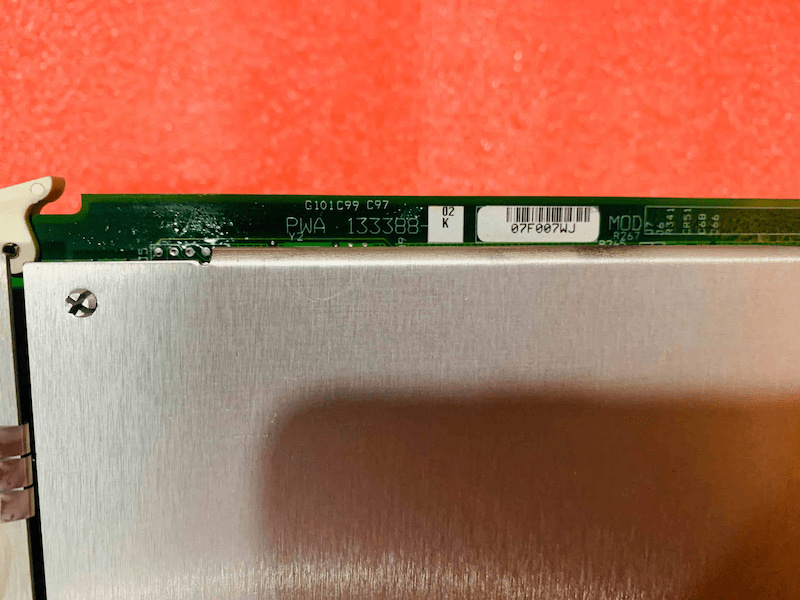

133388-02 |
| Ordering Information |
3500/50 |
| Product Catalog |
3500/50 |
| Description |
Tachometer Module |
| Voltage |
0 to 12 Vdc |
| Current |
4 to 20 mA |
| Dimension |
241.3 mm x 24.4 mm 241.8 mm |
| Weight |
0.82 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
