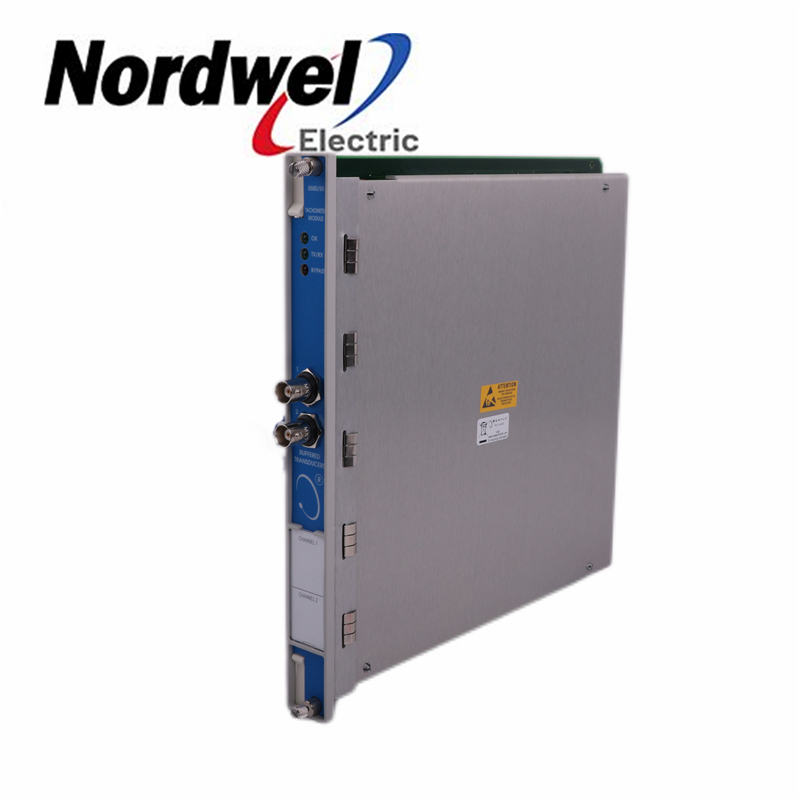

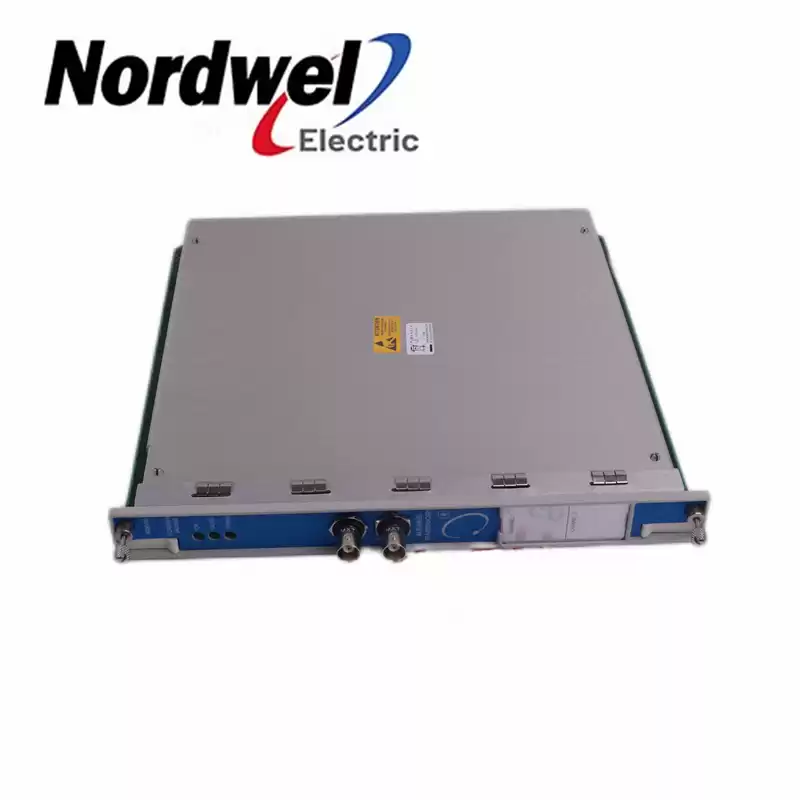

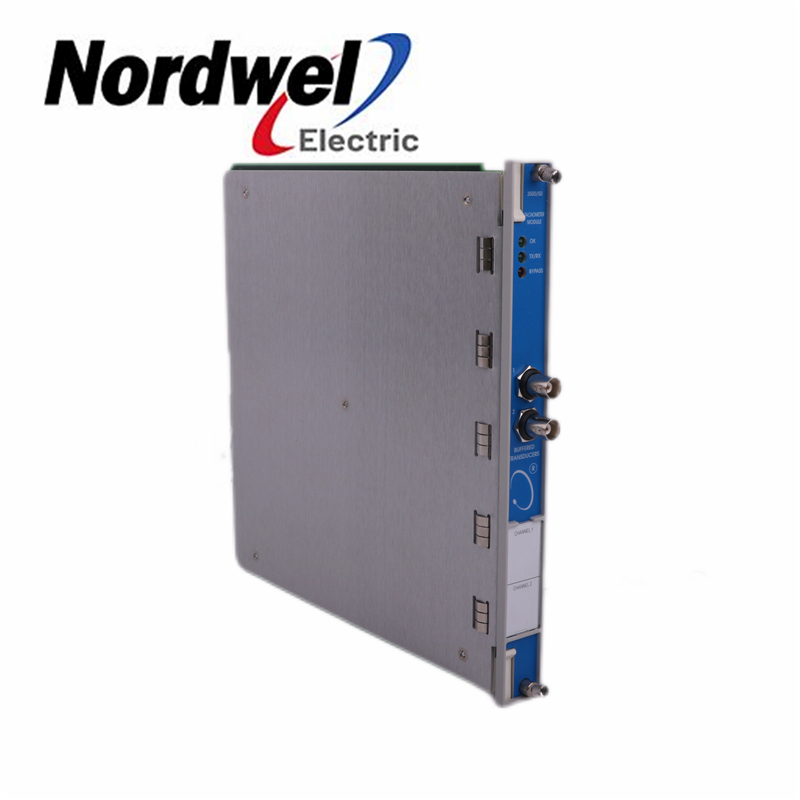

Bently Nevada|3500/50 133388-02|Tachometer Module

Part Number: 3500/50 133388-02

Manufacturer: GE/Bently Nevada

Series: Bently Nevada 3500/50

Status: In stock

Full description:GE/Bently Nevada 3500/50 133388-02 3500/50 Tachometer Module

The 3500/50 Tachometer Module is a 2-channel module that accepts input from

proximity probes or magnetic pickups (except as noted) to determine shaft

rotative speed, rotor acceleration, or rotor direction, compares these

measurements against user-programmable alarm setpoints, and generates

alarms when these setpoints are violated. The 3500/50 Tachometer Module is

programmed using the 3500 Rack Configuration Software and can be

configured with four different options:

1. Speed Monitoring, Setpoint Alarming, and Speed Band Alarming.

2. Speed Monitoring, Setpoint Alarming, and Zero Speed Notification.

3. Speed Monitoring, Setpoint Alarming, and Rotor Acceleration Alarming.

4. Speed Monitoring, Setpoint Alarming, and Reverse Rotation Notification.

The 3500/50 can be configured to supply conditioned Keyphasor® signals to the

backplane of the 3500 rack for use by other monitors, thus eliminating the need

for a separate Keyphasor module in the rack. The 3500/50 also has a peak hold

feature that stores the highest speed, highest reverse speed, or number of

reverse rotations (depending on channel type selected) that the machine has

reached. These peak values can be reset by the user.
