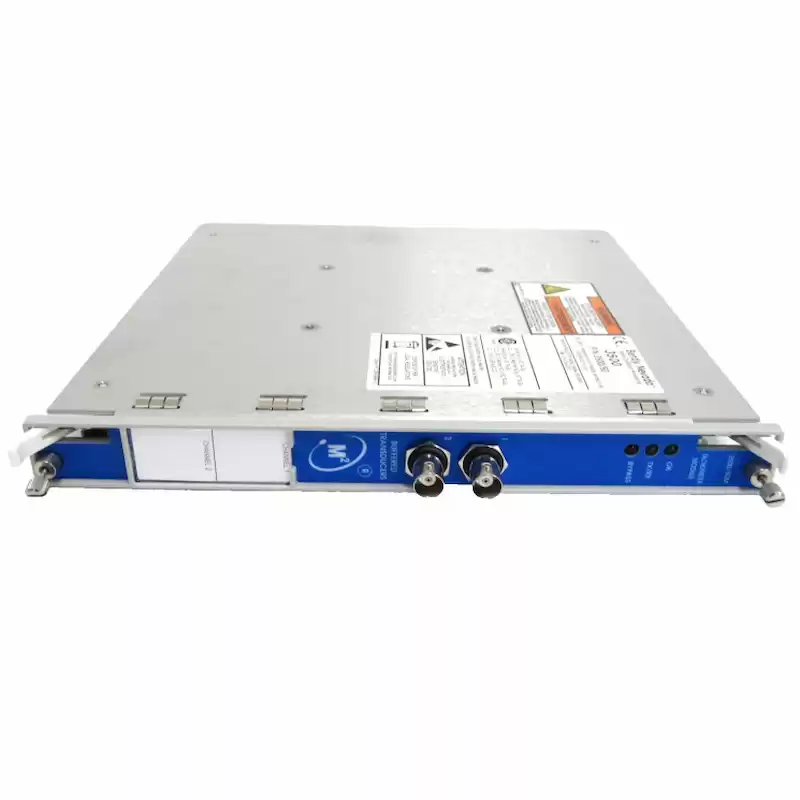

Bently Nevada 3500/50-01-00-01 288062-02 Tachometer Module
The 3500/50M Tachometer Module is programmed using the 3500 Rack Configuration Software and can be configured with four
different.
options:
1. Speed Monitoring, Setpoint Alarming, and Speed Band Alarming.
2. Speed Monitoring, Setpoint Alarming, and Zero Speed Notification.
3. Speed Monitoring, Setpoint Alarming, and Rotor Acceleration Alarming.
4. Speed Monitoring, Setpoint Alarming, and Reverse Rotation Notification.
The 3500/50M Tachometer Module can be configured to supply conditioned Keyphasor signals to the backplane of the 3500 rack for use by other monitors. Therefore, you don't need a separate Keyphasor module in the rack.
The 3500/50M Tachometer Module has a peak hold feature that stores the highest speed, the highest reverse speed, or the number of reverse rotations that the machine has reached. You can reset the peak values.
Technical Specifications
| Manufacturer |
Bently Nevada |
| Part Number |
288062-02 |
| PWA Number |
286566-02 |
| Product Catalog |
3500/50M |
| Description |
Tachometer Module |
| Voltage |
0 to +12 Vdc |
| Current |
+4 to +20 mA |
| Dimension |
241.3 mm x 24.4 mm 241.8 mm |
| Weight |
0.82 kg |
