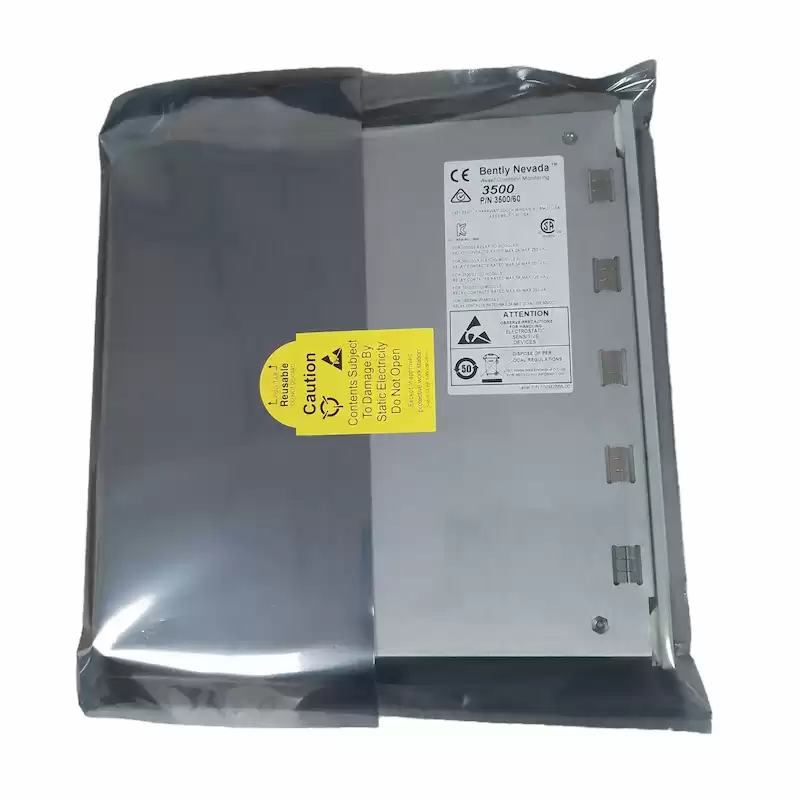

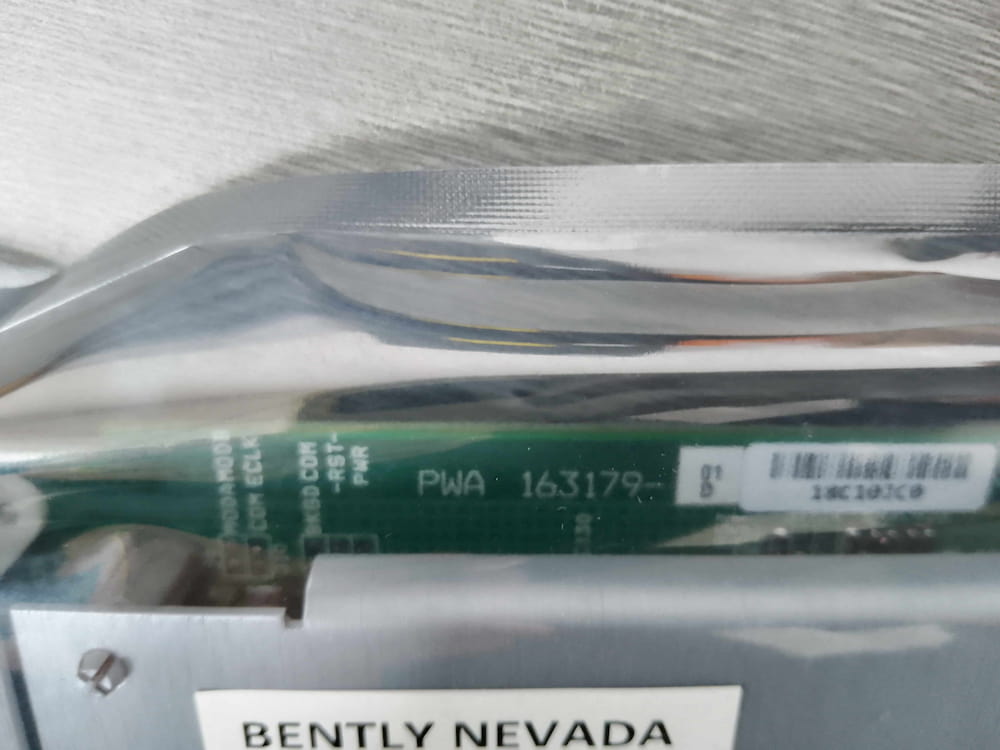

3500/60 163179-01 Temperature Module
The 3500/60 module provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm set points. The 3500/60 does not provide recorder outputs.
The user programs the modules to perform either RTD or TC temperature measurements using the 3500 Rack Configuration Software. Different I/O modules are available in RTD/TC non-isolated or TC isolated versions. The user can configure the RTD/TC non-isolated version to accept either TC or RTD, or a mixture of TC and RTD inputs. The TC isolated version provides 250 Vdc of channel-to-channel isolation to protect against external interference.
Ordering Information
Without Recorder Outputs
3500/60-AA-BB
A: I/O Module Type
01 RTD/TC Non-isolated I/O Module Internal Terminations
02 RTD/TC Non-isolated I/O Module External Terminations
03 TC Isolated I/O Module Internal Terminations
04 TC Isolated I/O Module External Terminations
05 RTD/TC Non-isolated I/O Module with Internal Barriers
B:Agency Approval Option
00 None
01 CSA/NRTL/C (Class 1, Div 2)
02 ATEX/ IECEx/ CSA (Class 1, Zone2)
Spares
163179-01 3500/60 Temperature Monitor (without recorders)
133827-01 3500/60 RTD/TC Non-Isolated I/O Module, External Terminations.
133819-01 3500/60 RTD/TC non-Isolated I/O Module, Internal Terminations
133835-01 3500/60 TC Isolated I/O Module, Internal Terminations.
133843-01 3500/60 TC Isolated I/O Module, External Terminations.
136711-01 3500/60 RTD/TC I/O Module with Internal Barriers and Internal Terminations. (Not-Isolated)
