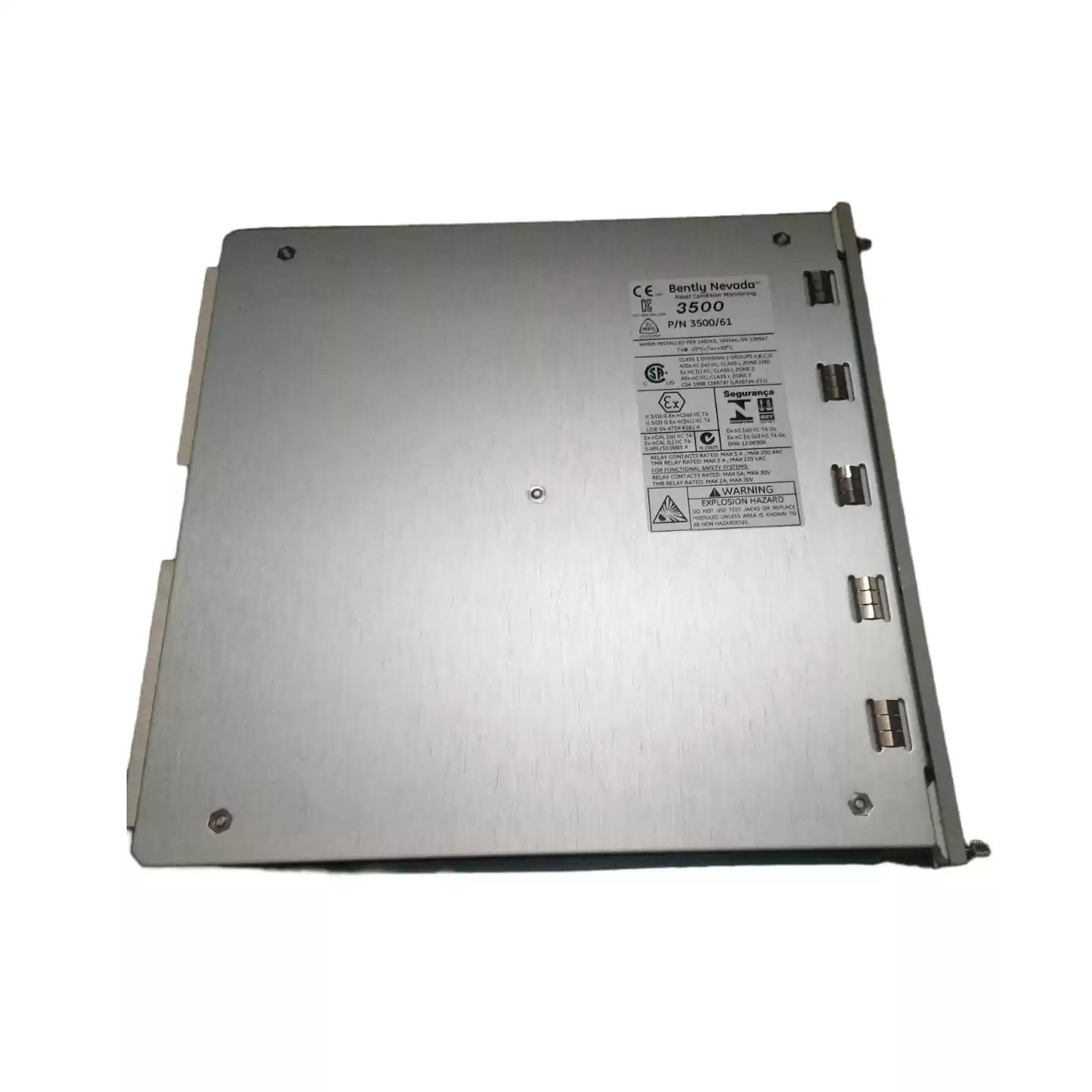

3500/61 163179-02 Temperature Monitor Module
The 3500/61 module provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm set points. The 3500/61 provides recorder outputs.
When used in a Triple Modular Redundant (TMR) configuration, temperature monitors must be installed adjacent to each other in groups of three. When used in this configuration, the system employs two types of voting to ensure accurate operation and to avoid single-point failures.
Ordering Information
3500/61-AA-BB
A:I/O Module Type
01 RTD/TC Non-isolated I/O Module Internal Terminations
02 RTD/TC Non-isolated I/O Module External Terminations
03 TC Isolated I/O Module Internal Terminations
04 TC Isolated I/O Module External Terminations
05 RTD/TC Non-isolated I/O Module with Internal Barriers
B:Agency Approval Option
00 None
01 CSA/NRTL/C (Class 1, Div 2)
02 ATEX/ IECEx/ CSA (Class 1, Zone2)
Spares

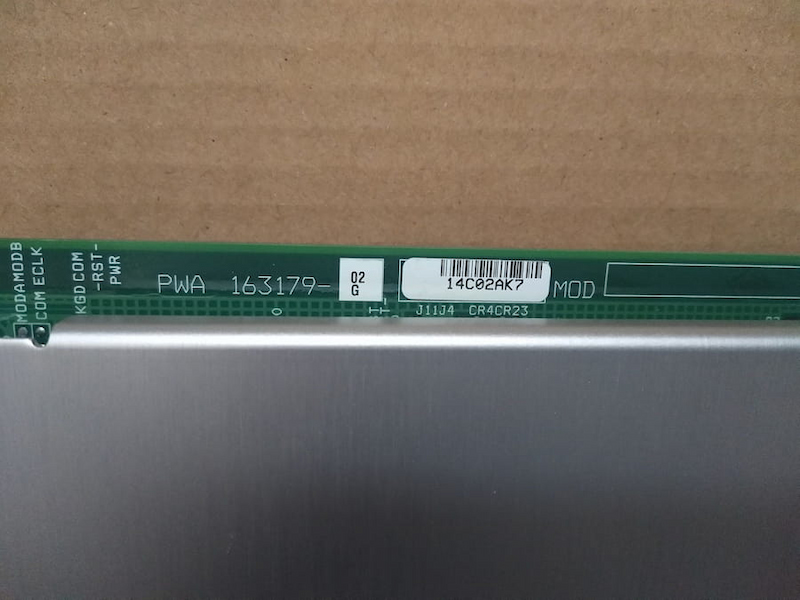

163179-02 3500/61 Temperature Monitor (with recorders)
133819-02 3500/61 RTD/TC Non-Isolated I/O Module Internal Terminations.
133827-02 3500/61 RTD/TC non-Isolated I/O Module Internal Terminations.
133835-02 3500/61 TC Isolated I/O Module Internal Terminations.
133843-02 3500/61 TC Isolated I/O Module External Terminations.
133892-01 3500/61 Recorder Output External Termination Block (Terminal Strip connectors).
133900-01 3500/61 Recorder Output External Termination Block (Euro Style connectors).
136711-02 3500/61 RTD/TC I/O Module with Internal Barriers and Internal Terminations. (Not-Isolated)
Technical Specifications
| Manufacturer |
Bently Nevada |
| Part Number |
163179-02 |
| Ordering Information |
3500/61 |
| Product Catalog |
3500/61 |
| Description |
Temperature Monitor Module |
| Voltage |
24 Vdc |
| Current |
+4 to +20 mA |
| Dimensions |
241.3 mm x 24.4 mm x 241.8 mm |
| Weight |
0.91 kg |
