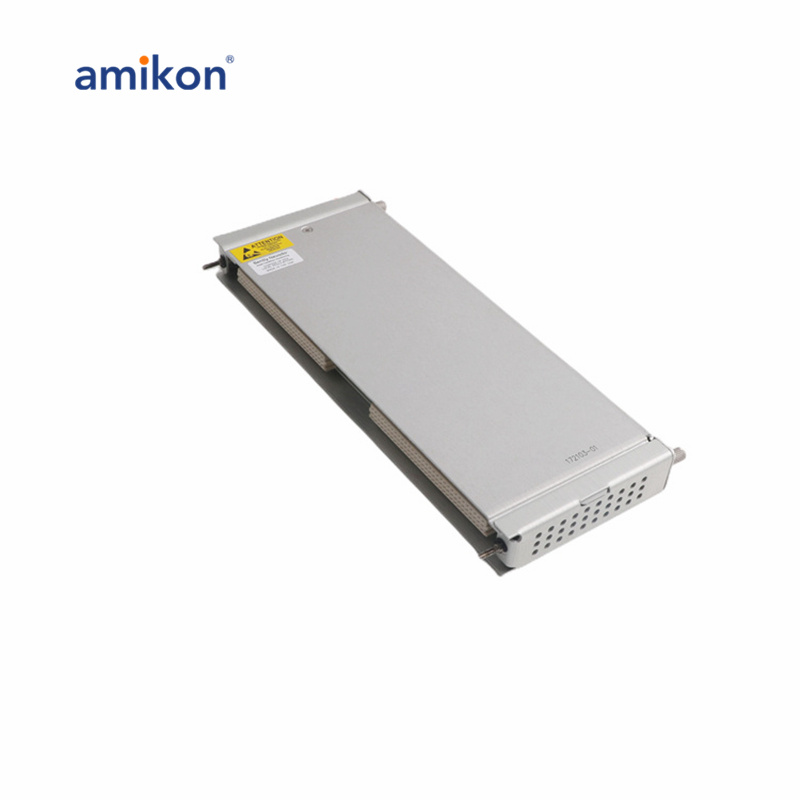

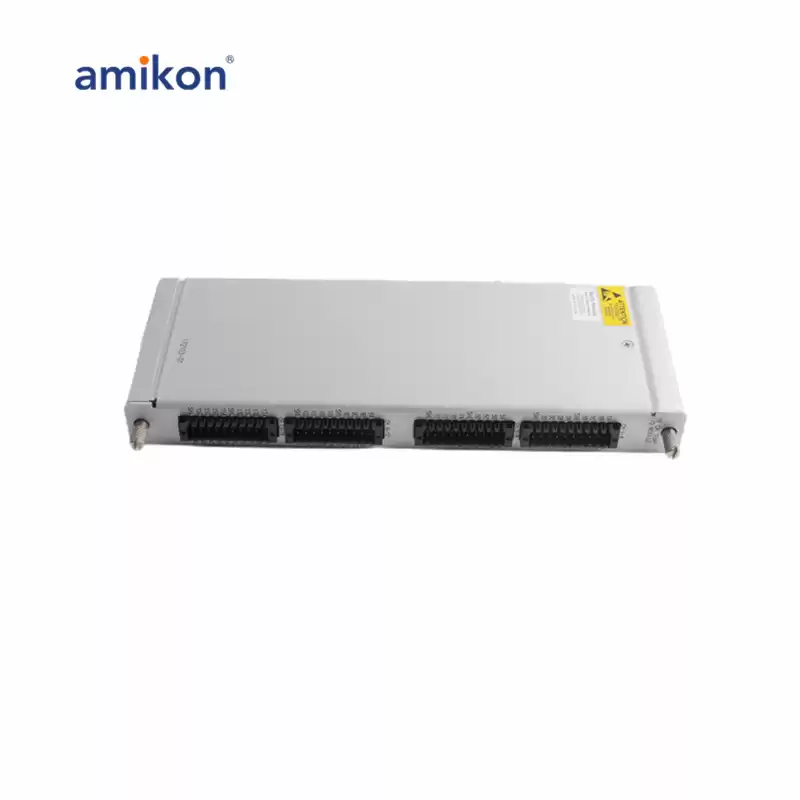

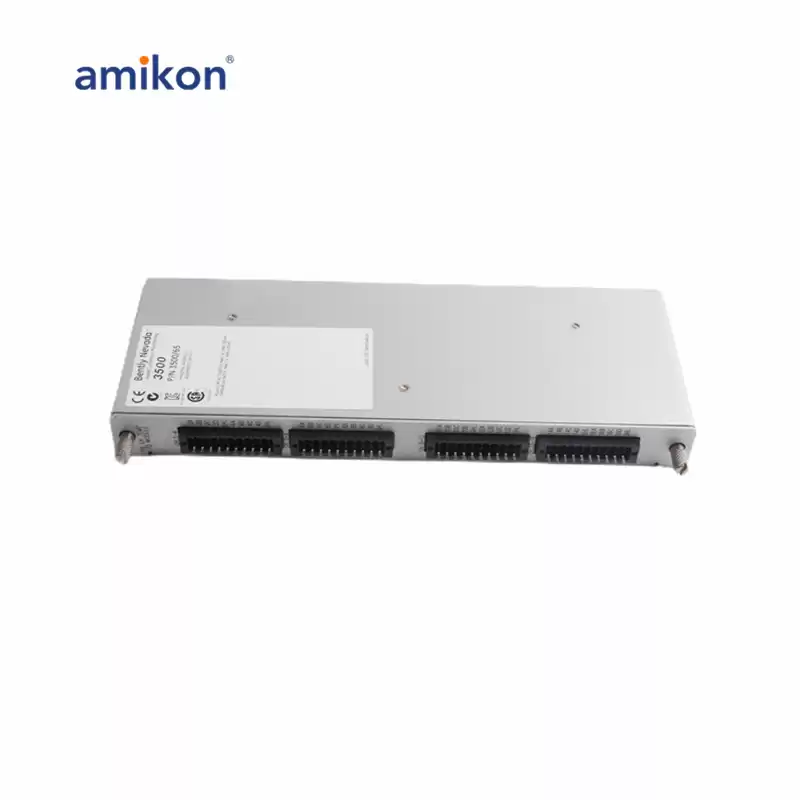

Bently Nevada 3500/65-01-00 172103-01 RTD/Isolated

172103-01 is an RTD/Isolated Tip TC I/O Module with Internal Terminations. It is developed by Bently Nevada. It is a part of the 3500/65 Temperature Monitor system. The system performs temperature monitoring. It accepts both resistance temperature detectors and isolated tip thermocouple temperature inputs. The temperature Monitor system conditions these inputs and evaluates them against user-programmable alarm setpoints.

Features
The Bently Nevada 3500/65 Series 16-Channel Temperature Monitors have 16 temperature channels and accept temperature inputs from both resistance temperature detectors (RTD) and isolated tip thermocouples (TC). These inputs are processed by the monitor and compared to user-programmable alarm setpoints.
The 3500 Rack Configuration Software is used to program the monitor. The 16-Channel Temperature Monitor can be configured to accept isolated tip thermocouples, 3-wire RTD, 4-wire RTD, or a combination of TC and RTD inputs.
Temperature monitors must be installed in groups of three adjacent monitors in Triple Modular Redundant (TMR) configurations. To ensure accurate operation and to avoid single-point failures, the monitor in this configuration employs two types of voting.
172103-01 Characteristics
Dimensions: (Height xWidth xDepth) 241.3 mm x 24.4 mm x 99.1 mm
Weight: 0.45kg
Rack Space Requirements: 1 full-height rear slot
Product Attributes
Temperature monitoring is available in 16 channels.
Temperature inputs can be RTD or TC.
Accepts isolated tip thermocouples, 3-wire or 4-wire RTDs, or a combination of TC and RTD inputs.
Compatibility
The software may not run properly if the 3500/65 is used with 3500/02 or 3500/03 software.
Internal termination I/O modules cannot be used with external termination blocks.
