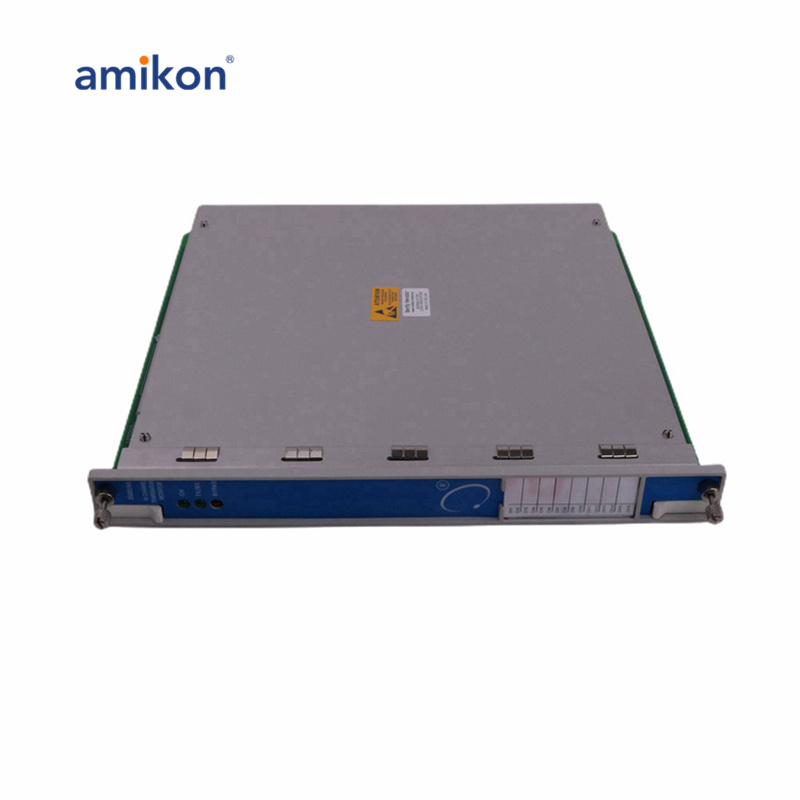

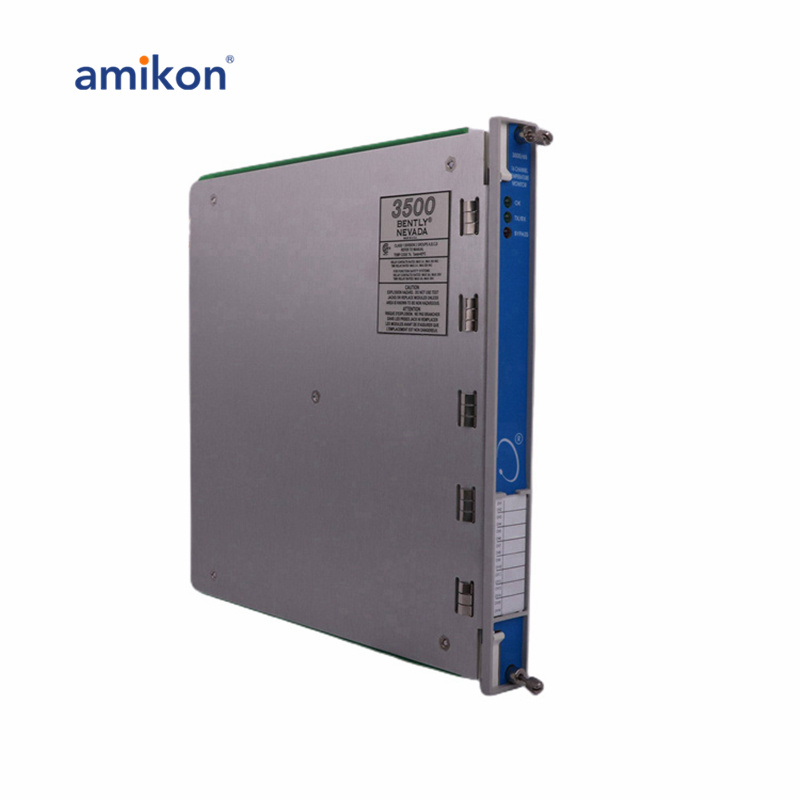

Bently Nevada 3500/65 145988-02 Temperature Monitor

Brand new and original sealed//Same Day Shipment

Payment Term100% Advance Payment T/T Bank Wire Transfer
Warranty PeriodOne Year Warranty
Dimensions2.6x25.8x24cm
Weight0.85 kg
Country of OriginUSA
Brand/ManufaturerBently Nevada

Facebook Twitter Pinterest LinkedIn 分享

Description

Manufacturer	Bently Nevada	Product type	Temperature Monitor
Product No.	3500/65 145988-02	Made in	USA
Place of shipment	Xiamen	Tariff Code	8537101190
The Bently Nevada 3500/65 145988-02 Monitor is designed for machinery condition monitoring, offering 16 channels of temperature monitoring. It supports both resistance temperature detector (RTD) and isolated tip thermocouple (TC) inputs. The monitor conditions these inputs and compares them against user-programmable alarm setpoints to ensure machinery protection. The OK LED indicates that the 3500/65 145988-02 monitor is operating properly, while the Bypass LED signals when the monitor is in Bypass Mode. The RTD current source value is 913 ± 7 µA at 25°C per transducer, with one supply for 4-wire RTDs and two supplies for 3-wire RTDs. This ensures accurate and reliable temperature monitoring for various industrial applications.		Specification： Inputs Power Consumption: 3 watts nominal Signal: Accepts from 1 to 16 RTD or isolated tip TC transducer signals. Input Impedance: Greater than 1 MΩ for each lead input. Outputs Front Panel LEDs OK LED: Indicates when the 3500/65 is operating properly. TX/RX LED: Indicates when the 3500/65 is communicating with other modules in the 3500 rack. Bypass LED : Indicates when the 3500/65 monitor is in Bypass Mode.
