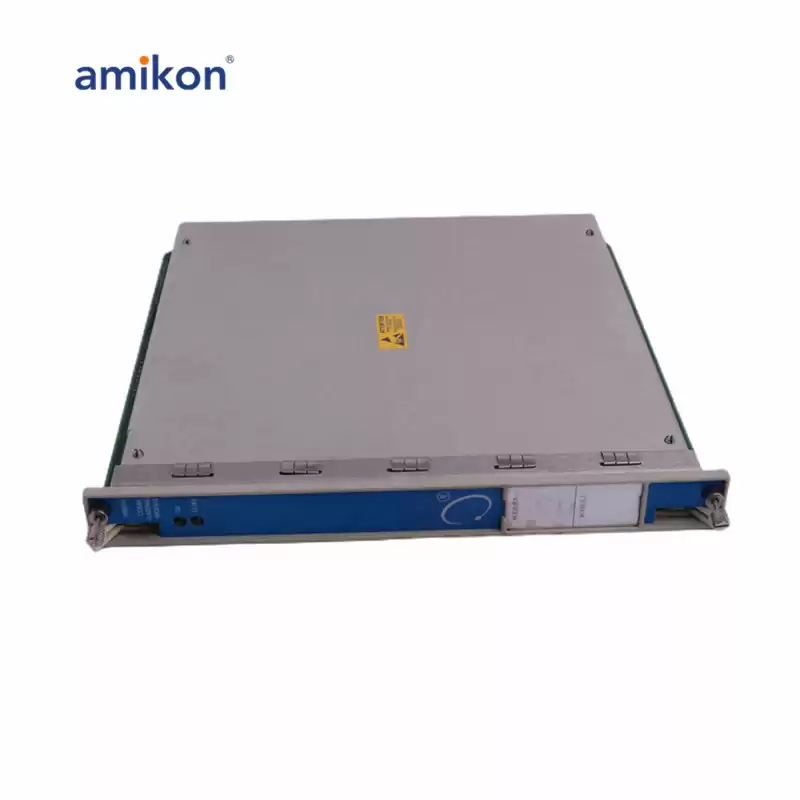

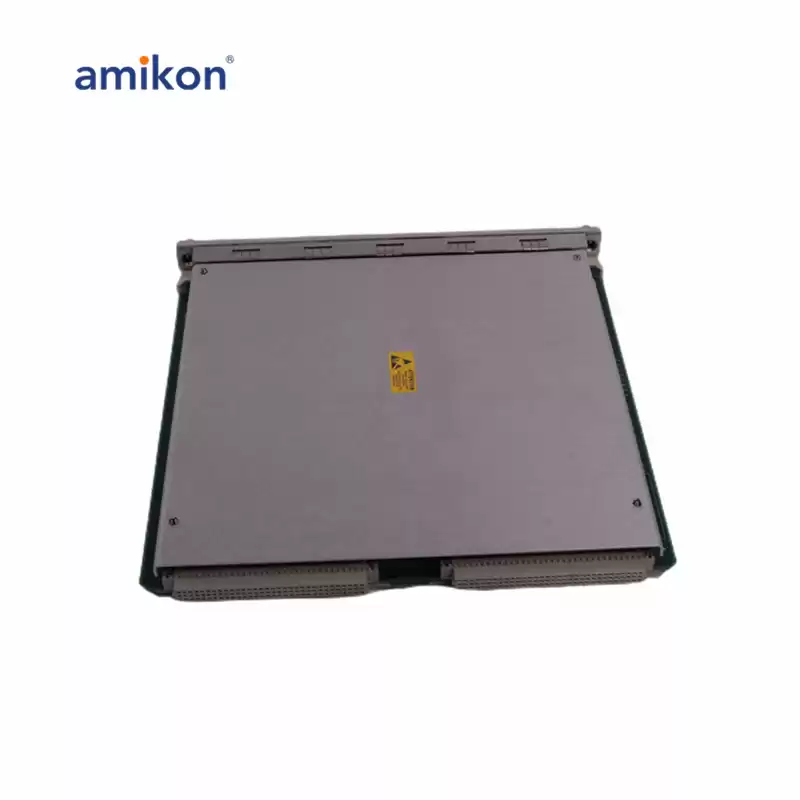

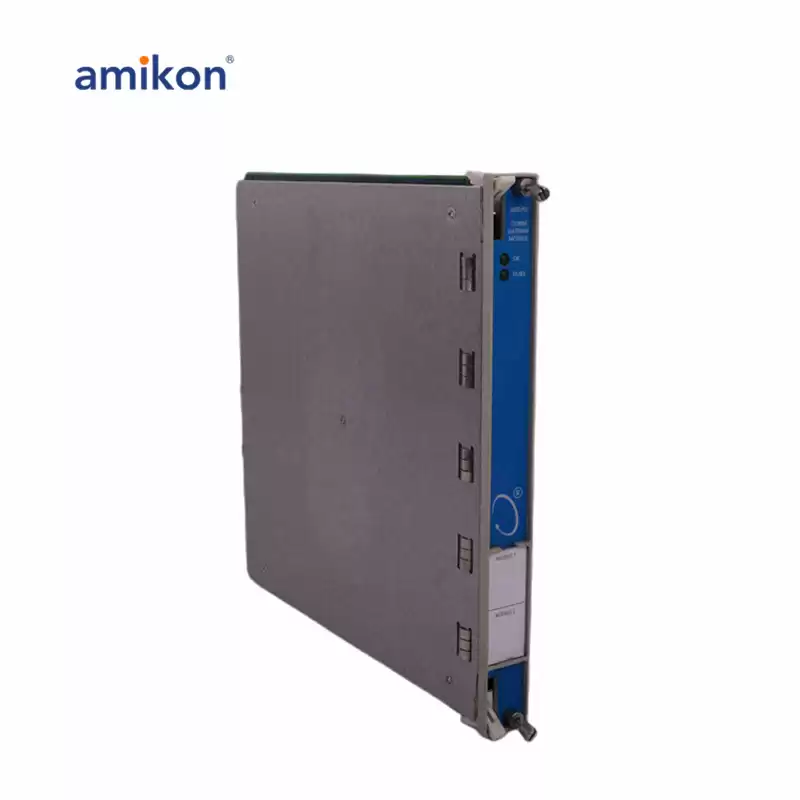

Part Number: 3500/92 136180-01
|
|
Manufacturer: Bently Nevada
|
|
Series: 3500
|
|
Product Type: Communication Gateway module
|
|
Power Consumption: 5.0 watts typical
|
|
Dimensions (Height x Width x Depth): 241 mm x 24.4 mm x 242 mm
|
|
Weight 0.82 kg
|
|
Functional Safety: SIL 2
|
|
Availability: In Stock
|
|
Country of Manufacture: United States(USA)
|
The 3500/92 136180-01 Communication Gateway module provides extensive communication capabilities of all rack monitored values and statuses for integration with process control and other automation systems using both Ethernet TCP/IP and serial (RS232/RS422/RS485) communications capabilities. It also permits Ethernet communications with 3500 Rack Configuration Software and Data Acquisition Software.
Supported protocols include:
-Modicon Modbus protocol (via serial communications)
-Modbus/TCP protocol (a variant of serial Modbus used for TCP/IP Ethernet communications)
-Proprietary Bently Nevada protocol (for communication with 3500 Rack Configuration and Data Acquisition Software packages)
The 3500/92 supports the communication interfaces, communication protocols, and other features from the original 3500/90 with the exception of the primary value Modbus registers. The 3500/92 now has a Configurable Modbus Register Utility, which can provide the same functionality originally addressed by the primary value Modbus registers.
