Category
|
Details
|
|
Inputs
|
|
|
Power Consumption
|
4.6 watts max.
|
|
High-Speed Network
|
Monitor status, data, and values
|
|
RS232 Port (I/O)
|
Touch controller data
|
|
Outputs
|
|
|
OK LED
|
Indicates proper operation of the module
|
|
TX/RX LED
|
Indicates communications between other system modules
|
|
VGA Port (I/O)
|
Analog red, green, blue, and sync signals to the display
|
|
Front Port
|
24 Vdc power out, VGA signal out, touch commands in
|

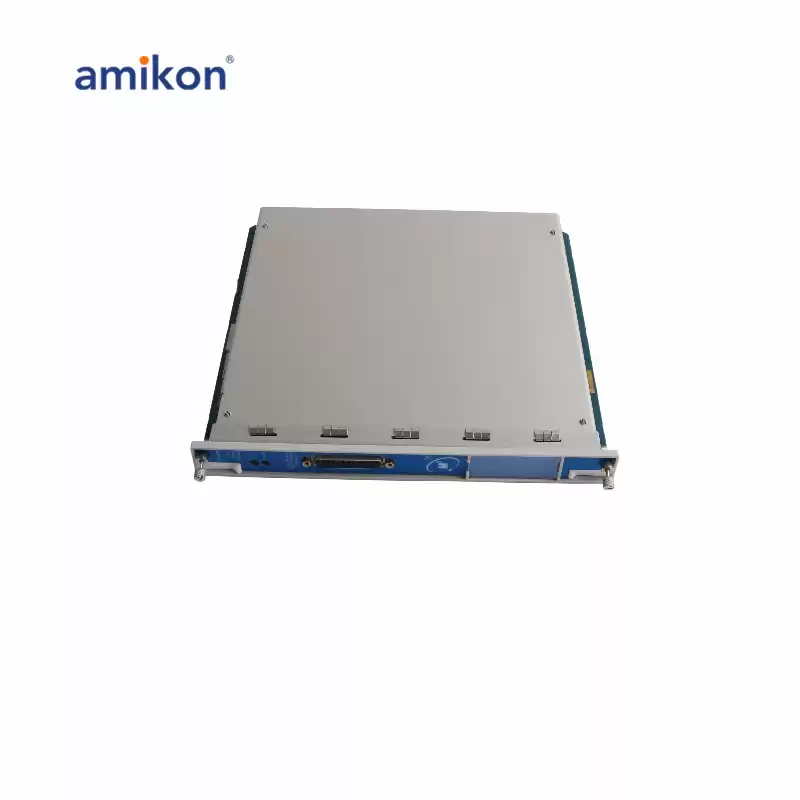

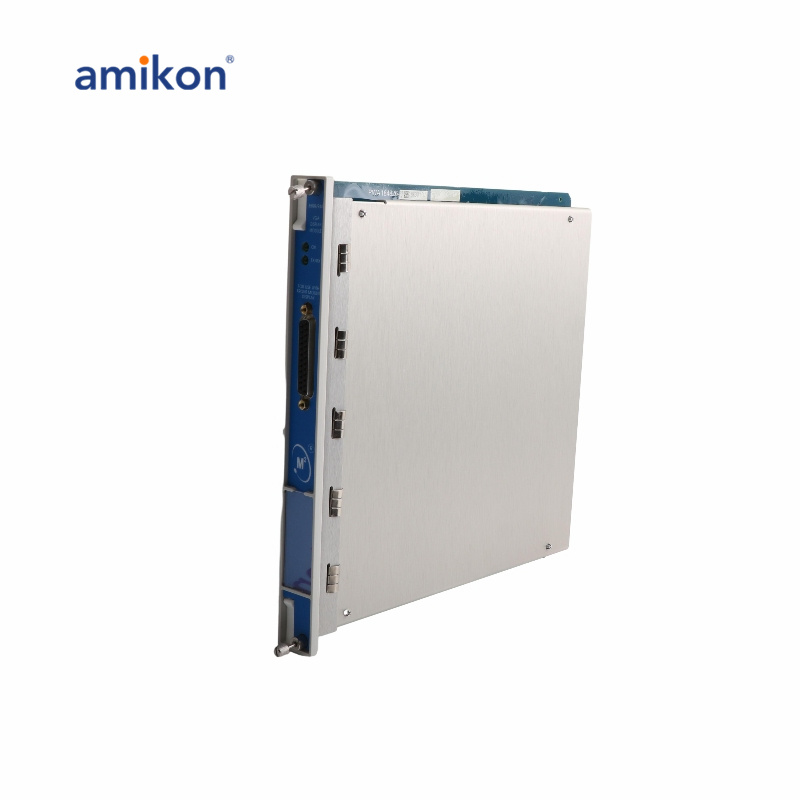

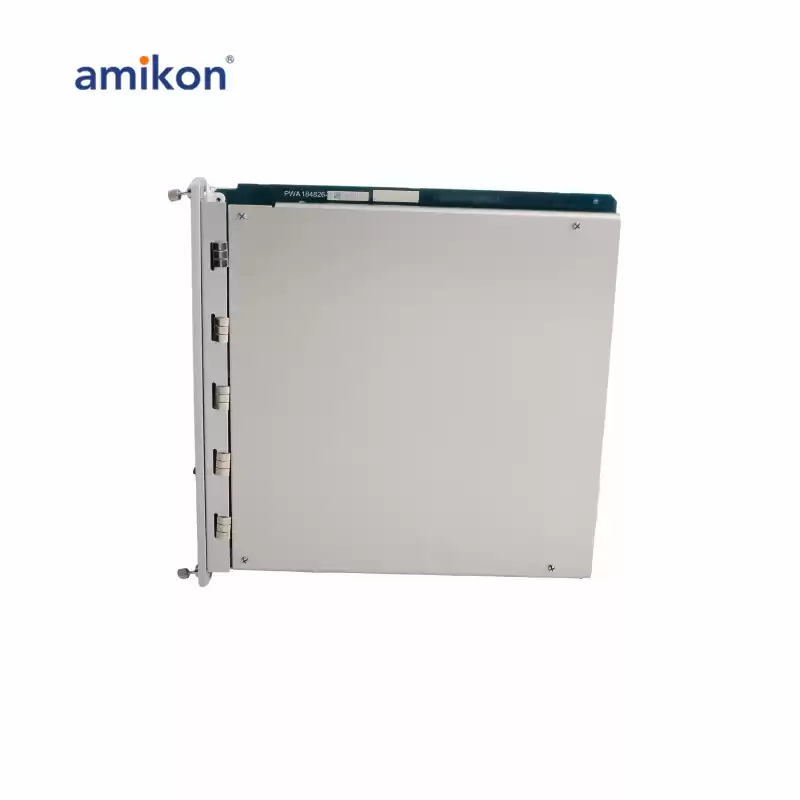

The 3500/94M 184826-01 VGA module displays all 3500 machinery protection system information, including:
-System event list
-Alarm event list
-All module and channel data
-Alarm and OK status
-Nine custom display options
Use the 3500/94M 184826-01 3500 Rack Configuration Software to configure up to nine custom screens. By default, one bar graph screen shows all of the 1X-filtered vibration measurements, while another shows the proximity transducer gap values.
You can organize custom screens into machine train groups. You can also organize system data into any pages on the custom screen.
System Components
The 3500/94M 184826-01 is comprised of:
-The 3500/94M 184826-01 VGA module
-An I/O module
-A 10" or 15" VGA touch screen display
You can mount the VGA display monitor using standard cables up to 6 m (20 ft) from a 3500 rack, or using a supported Keyboard Video Monitor (KVM) Extender, up to 10 km (6.2miles) from the 3500 rack.
Touch Screen Displays
Use either the 10" and 15" Advantech VGA touch screen displays. These compact, durable displays are designed for excellent viewing quality in industrial applications.
The 10" Advantech display is certified for hazardous environments. Each display requires a separate power supply.The 3500 Rack Configuration Software supports both display drivers.
