76683-90
|
|
Product Origin: USA
|
Manufacturer：Bently Nevada
|
|
Dimension: 7.3cmx5cmx10cm
|
Weight: 0.44KG
|
|

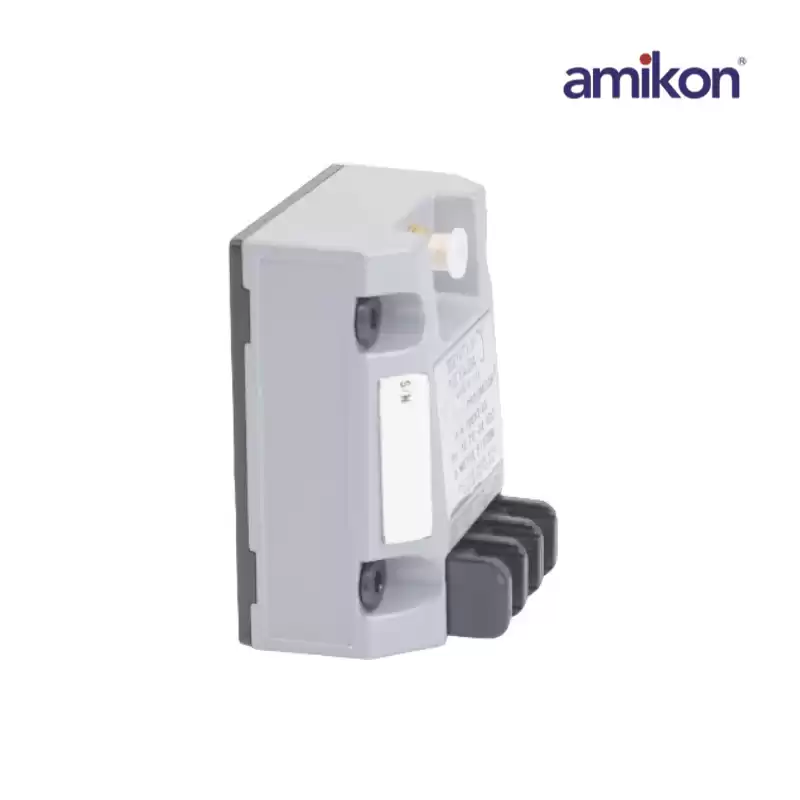

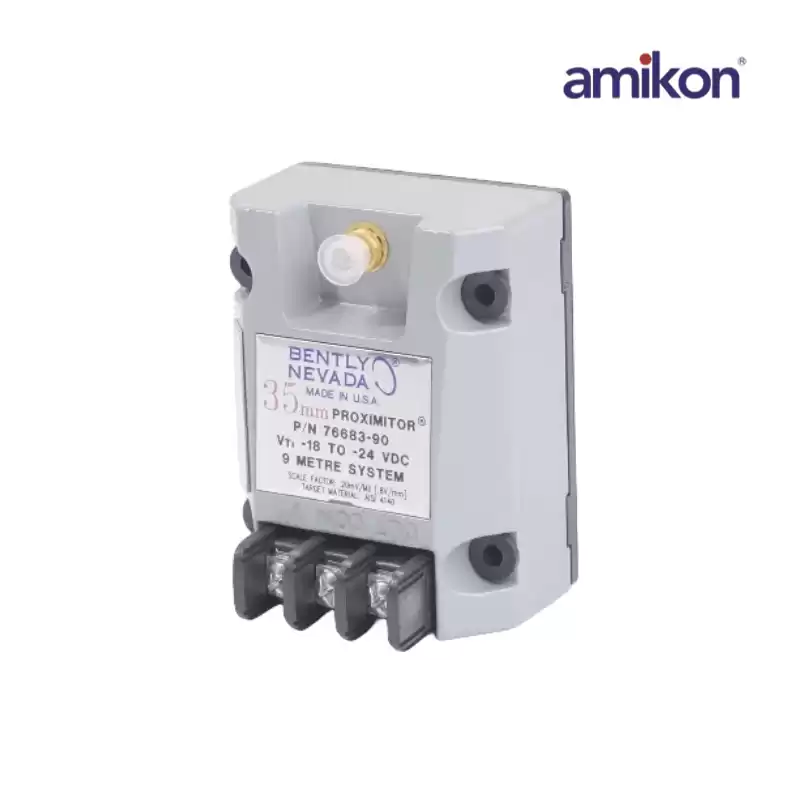

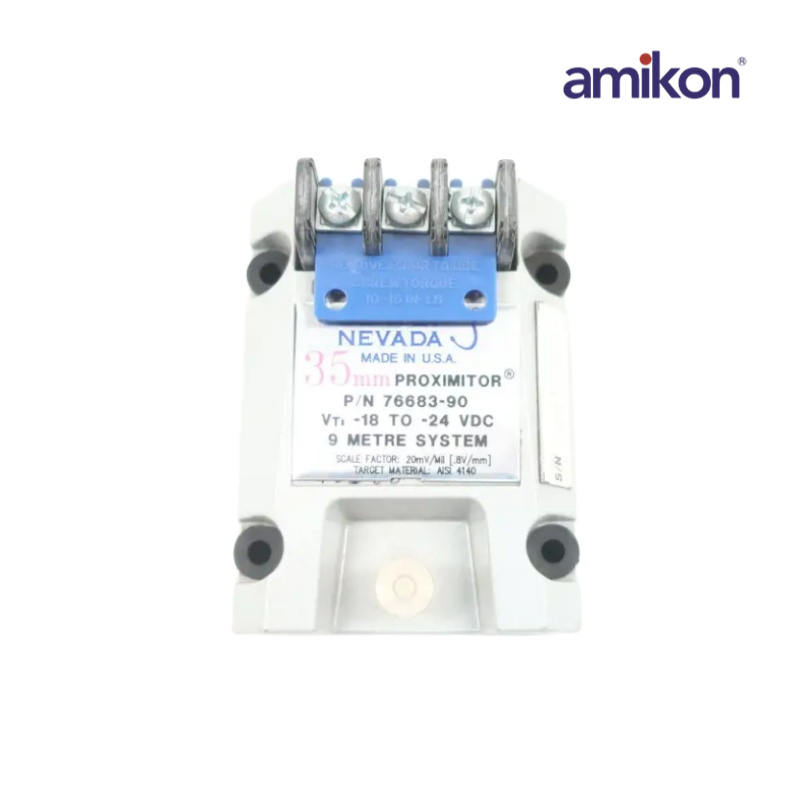

The 76683-90 is 35mm Proximitor Sensor.The Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system. The transmitter is a 2-wire, looppowered device that accepts input from our 3300 NSv* proximity probe and its matching extension cable (available in 5 m and 7 m system length options).
The transmitter conditions the signal into appropriate peak-to-peak vibration amplitude engineering units, and provides this value as a proportional 4 to 20 mA industry-standard signal as the input to the control system where machinery protection alarming and logic occurs1.
|
|
