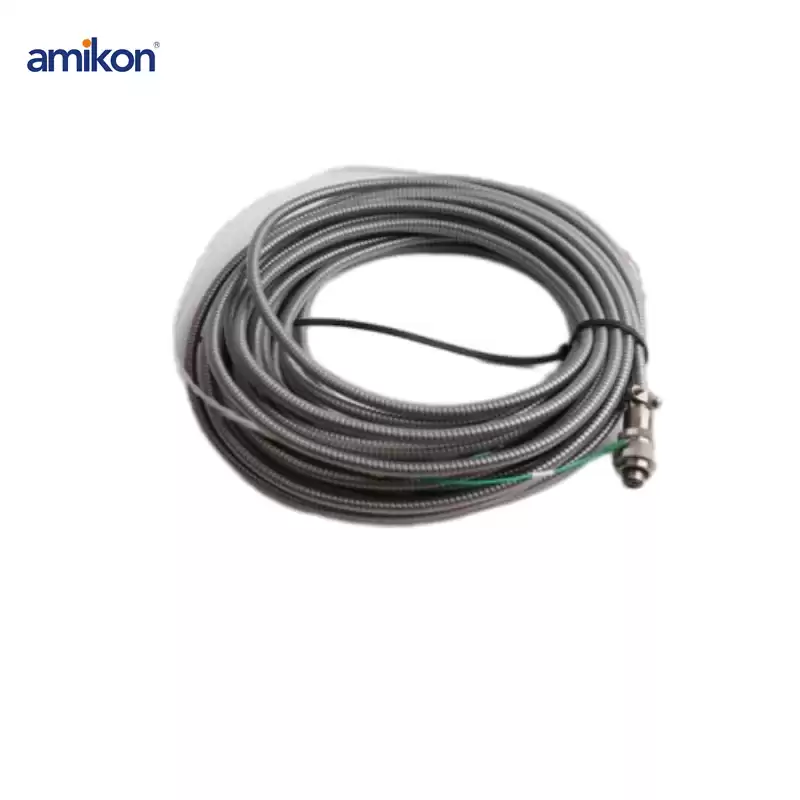

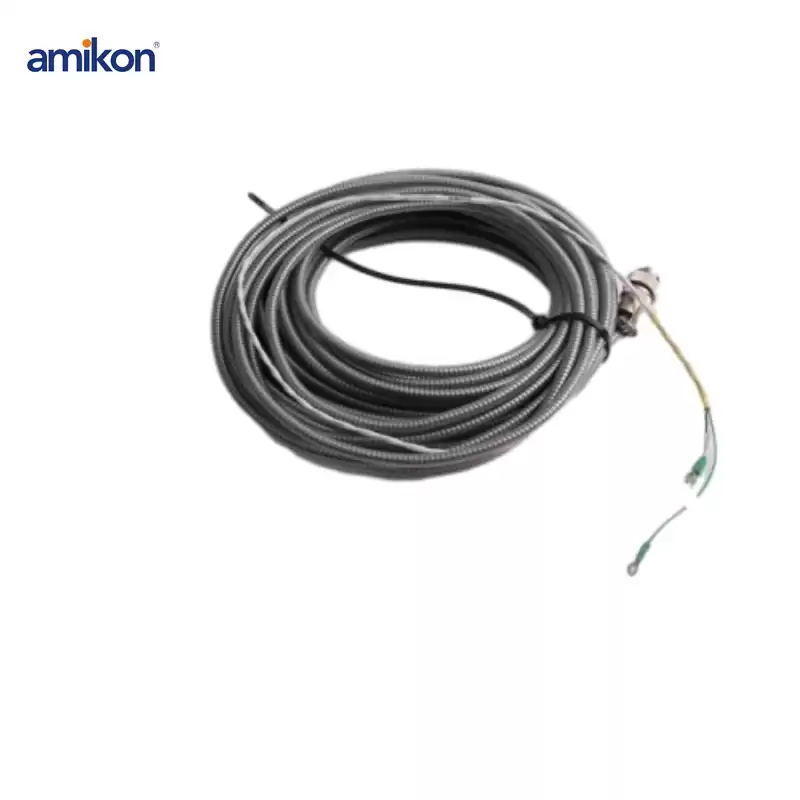

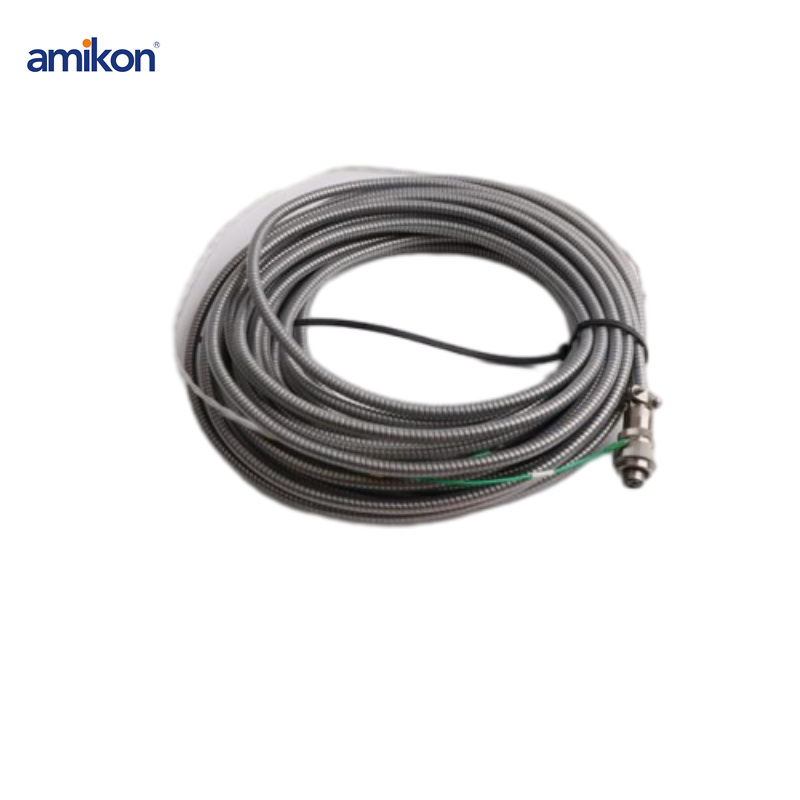

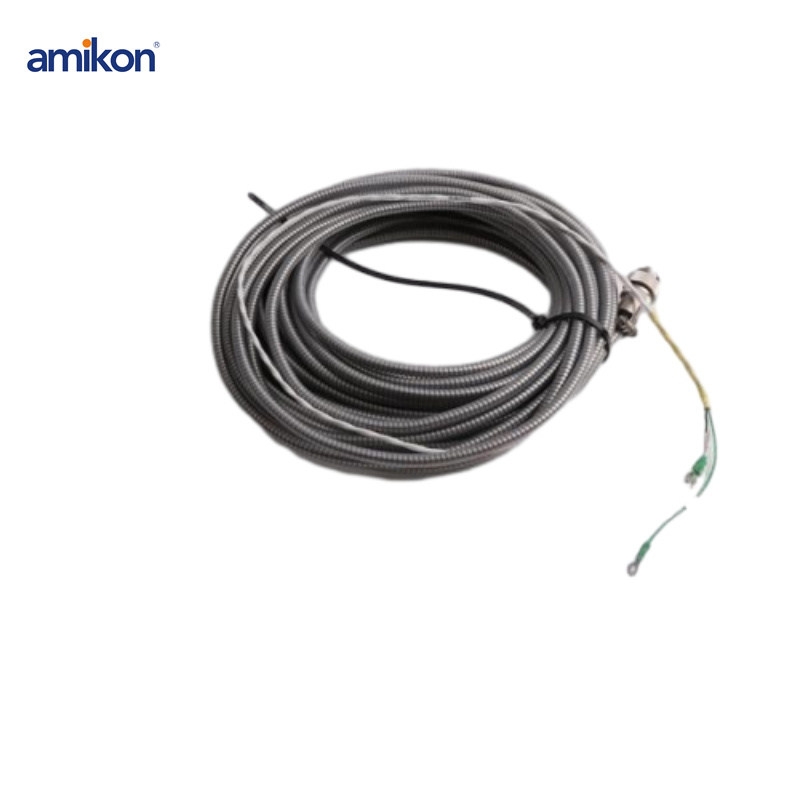

BENTLY NEVADA 84661-16 Interconnect Cables
|
Model Number
|
84661-16
|
Weight:
|
3 kg
|
|
Brand Name
|
BENTLY NEVADA
|
Lead Time
|
IN STOCK
|
|
Warranty
|
1 year
|
Payment
|
T/T Bank Transfer
|
|
Quality
|
Brand New & Original
|
Service
|
One-stop Service
|
|
Shipping By
|
DHL UPS TNT FEDEX ARAMEX
|
Dimensions
|
30.5x9x3.5cm
|
Description
Cable length Option in feet : 16 = 16 ft, 4.8metres
2-conductor twisted, shielded 22 AWG armored cable with 2- socket moisture-resistant female
connector at one end, terminal lugs at the other end.
Used with monitors. Not for use with 21128 Velocity Transducer Housing.
Shipping weight : 3 Kg
Bently Nevada velocity sensor systems measure vibration of bearing housings, housings or structures.
The two-wire system consists of the sensor, connecting cable and optional vibration monitor.
The two-wire sensors, 84661-17 and 84661-20, are suitable for continuous monitoring or periodic measurement applications in conjunction with test or troubleshooting instrumentation.
84661 Connecting Cable 2-core twisted pair, shielded 22 AWG (0.5 mm2) armored cable with 2-socket moisture-proof female connector on one end and terminal lugs on the other end. (for monitor or VDC), order in 1.0 ft increments, minimum length (armored): 3.0ft (0.9 m)
Example:
84661-06, 84661-07, 84661-10, 84661-12, 84661-16, 84661-17, 84661-20, 84661-25, 84661-26, 84661-3084661-32, 84661-33, 84661-34, 84661-35, 84661-50, 84661-65
Bentley connecting cables 84661-17 and 84661-2 are often matched with the following vibration sensor probes：
330500-01-CN 330500-01-00 330500-02-CN 330500-02-00
330500-03-CN 330500-03-00 9200-01-01-10-00 9200-01-02 -10-00
9200-01-03-10-00 9200-01-05-10-00 9200-02-01-10-00 9200-03-01-10-00
9200-06-01-10-00 9200-06-02-10-00 9200-06-05-10-00 9200-06-05-10-00
