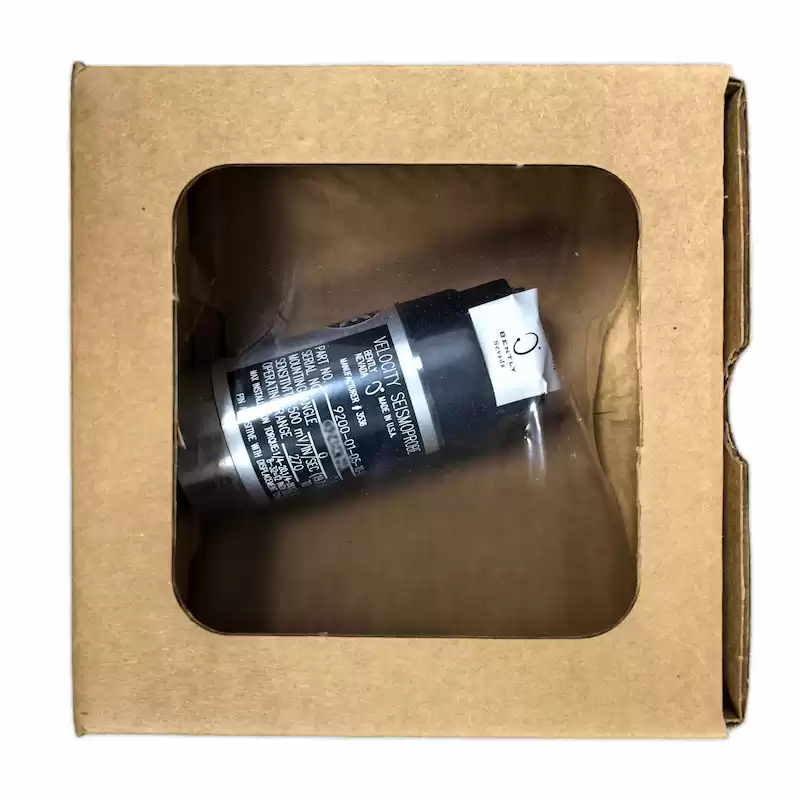

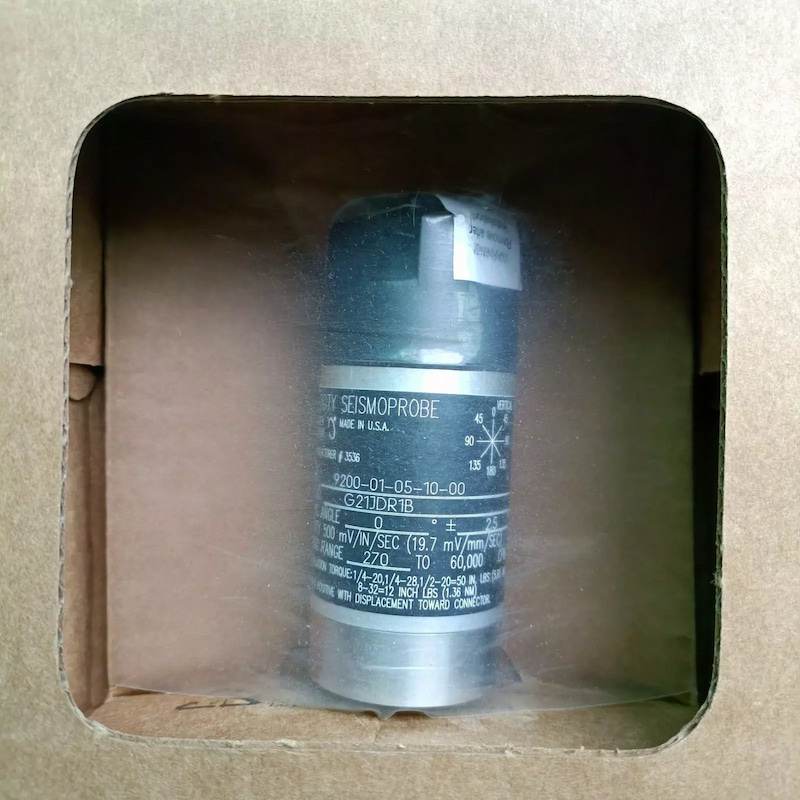

9200-01-05-10-00 Seismoprobe Velocity Transducer
Bently Nevada 9200-01-05-10-00 Seismoprobe Velocity Transducer Systems are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The two-wire systems consist of a transducer and appropriate cable.
The Seismoprobe family of velocity transducers is a two-wire design that uses moving-coil technology. It provides a voltage output directly proportional to the transducer's vibration velocity.
Moving-coil transducers are less sensitive to impact or impulsive excitation than solid-state velocity transducers, which are inherently accelerometers with embedded integration electronics.
Moving-coil transducers are less sensitive to impact or impulsive excitation and can represent a good choice for certain applications. Because they don't require external power, they are convenient for portable measurement applications.
Technical Specifications
| Manufacturer |
Bently Nevada |
| Part Number |
9200-01-05-10-00 |
| Ordering Information |
9200-01-05-10-00 |
| Product Catalog |
9200 Series |
| Description |
Seismoprobe Velocity Transducer |
| Dynamic operating range |
2.54 mm (0.100 in) peak |
| Operating Temperature |
-29°C to +121°C |
| Dimensions |
102 mm x 41 mm |
| Weight |
300 g |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
