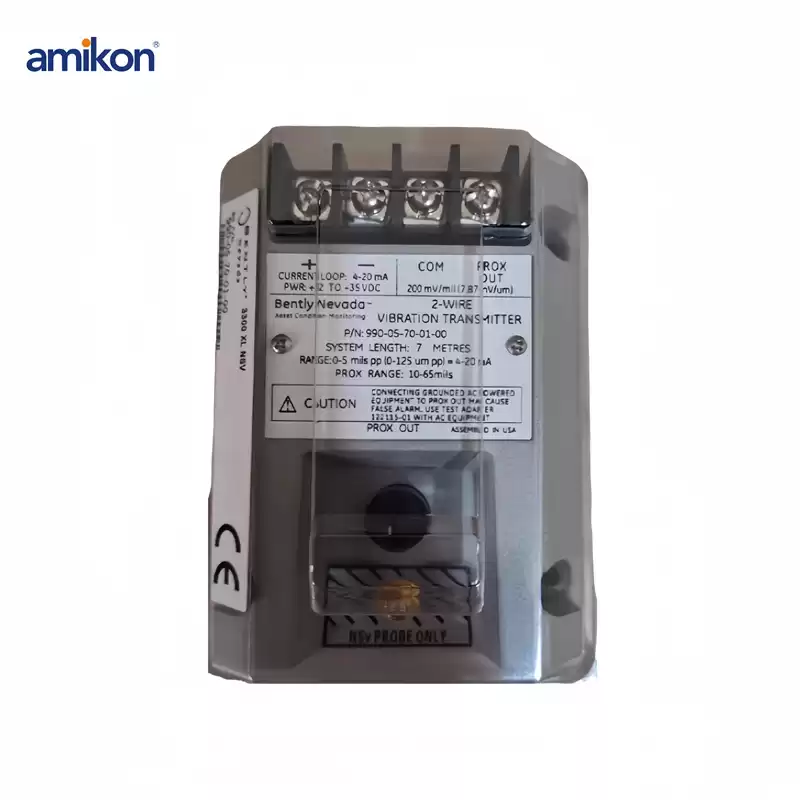

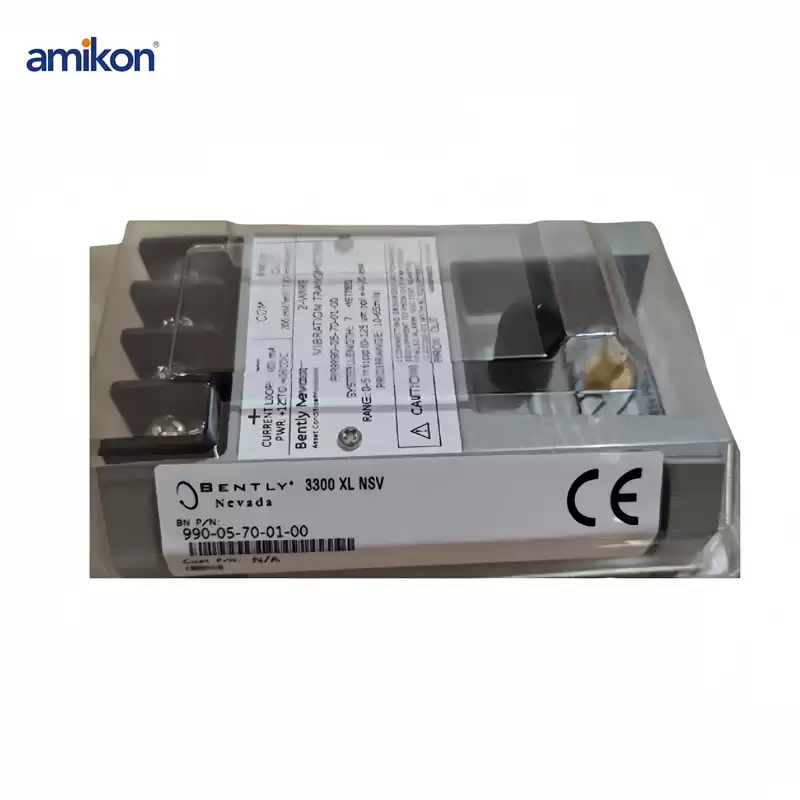

BENTLY NEVADA 990-05-70-01-00 Vibration Transmitter
|
Model Number
|
990-05-70-01-00
|
Weight:
|
0.28 kg
|
|
Brand Name
|
BENTLY NEVADA
|
Lead Time
|
IN STOCK
|
|
Warranty
|
1 year
|
Payment
|
T/T Bank Transfer
|
|
Quality
|
Brand New & Original
|
Service
|
One-stop Service
|
|
Shipping By
|
DHL UPS TNT FEDEX ARAMEX
|
Dimensions
|
30.5x9x3.5cm
|
Description
The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system.
The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system
length options).
The transmitter conditions the signal into appropriate peakto-peak vibration amplitude engineering units, and provides this value as a proportional 4 to 20 mA industry-standard signal as the input to the control system where machinery protection alarming and logic occurs.
The 990 transmitter provides the following notable features:
Integrated Proximitor Sensor requires no external unit
Non-isolated "PROX OUT" and "COM" terminals plus a coaxial connector to provide a dynamic vibration and gap voltage signal output for diagnostics.
Non-interacting zero and span potentiometers under the Transmitter label supports loop adjustment.
Test Input pin for quick verification of loop signal output, using a function generator as the input.
A Not OK/Signal Defeat circuit prevents high outputs or false alarms due to a faulty proximity probe or loose connection.
Choice of DIN-rail clips or bulkhead mounting screws as standard options simplifies mounting.
Download PDF 990 Vibration Transmitter Datasheet
