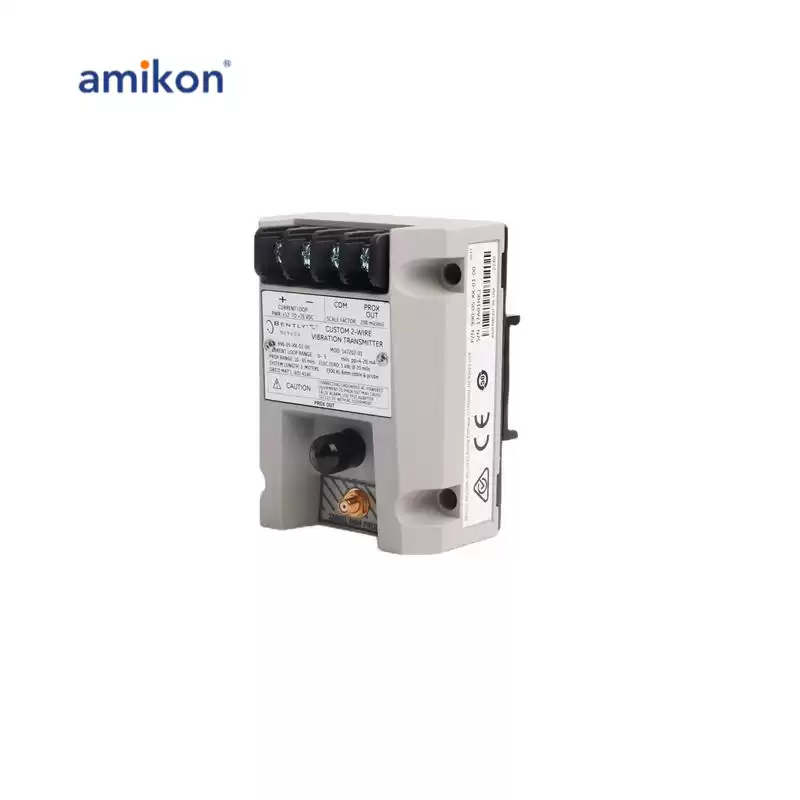

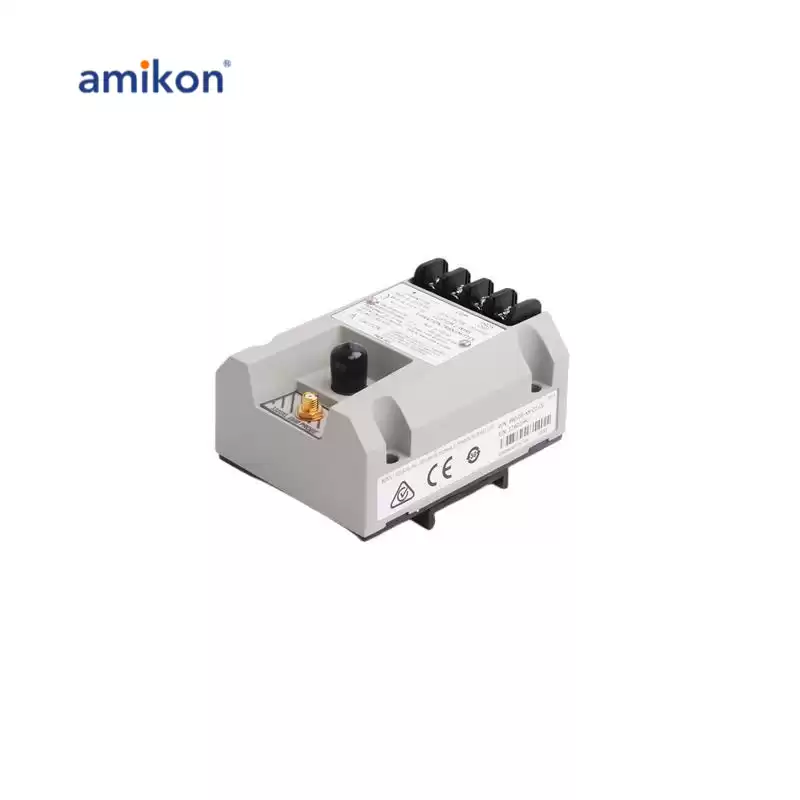

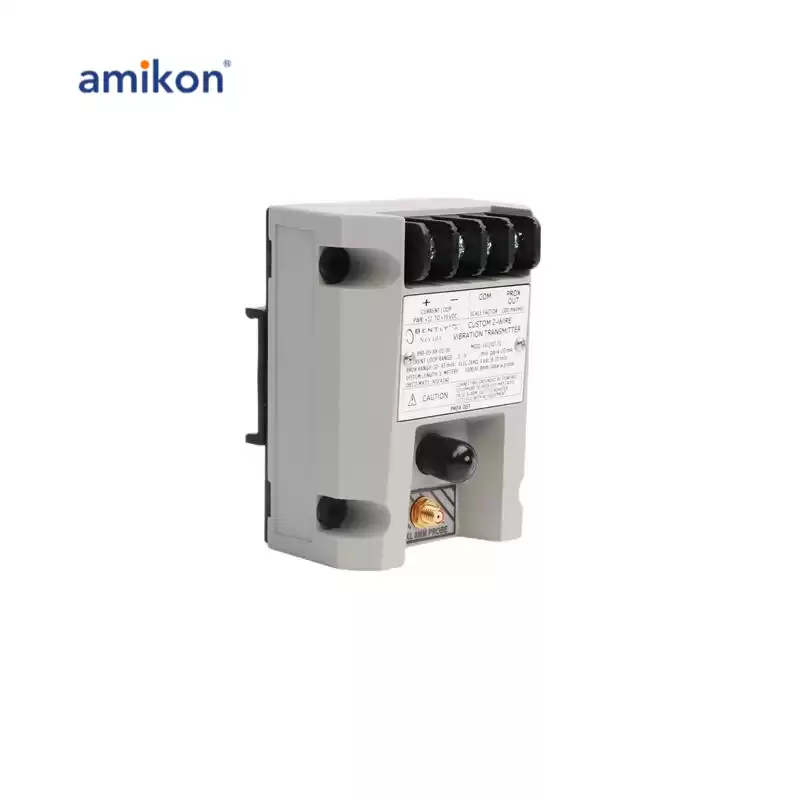

Bently Nevada 990-05-XX-01-00 MOD:165335-01 Vibration Transmitter
Brand new and original sealed//Same Day Shipment
- Warranty PeriodOne Year Warranty
- Dimensions7.3cmx6cmx10cm
- Weight0.46KG
- Country of OriginUSA
- Brand/ManufaturerBently Nevada
- Payment Term100% Advance Payment T/T Bank Wire Transfer
Part Number: 990-05-XX-01-00 165335-01
Model: 2-Wire Vibration Transmitter
Brand: Bently Nevada
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
|
Model |
990 |
2-Wire Vibration Transmitter |
|
Full-scale Option |
05 |
0-5 mils pp (0-125 µm pp) |
|
System Length Option |
XX |
|
|
Mounting Option |
01 |
35 mm DIN rail clips |
|
Agency Approval Option |
00 |
Not required |
The 990 Vibration Transmitter is designed primarily for original equipment manufacturers (OEMs) of centrifugal air compressors, small pumps, motors, or fans, who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system.
This 2-wire, loop-powered device accepts input from the 3300 NSv* proximity probe and its matching extension cable, which is available in 5 m and 7 m system length options. The transmitter conditions the signal into appropriate peak-to-peak vibration amplitude engineering units and provides this value as a proportional 4 to 20 mA industry-standard signal. This signal is then used as input to the control system, where machinery protection alarming and logic occur.
