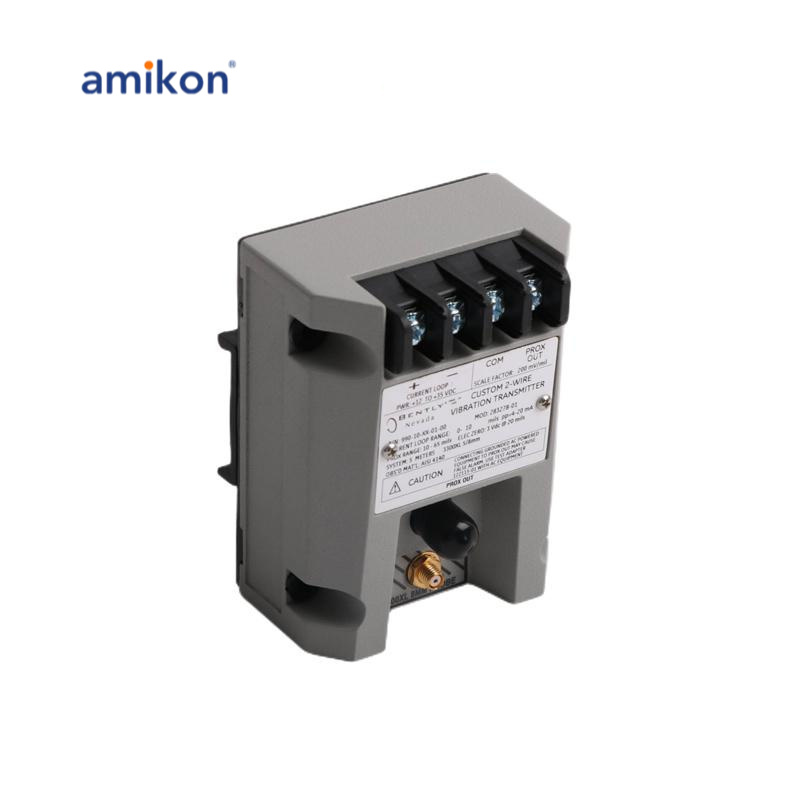

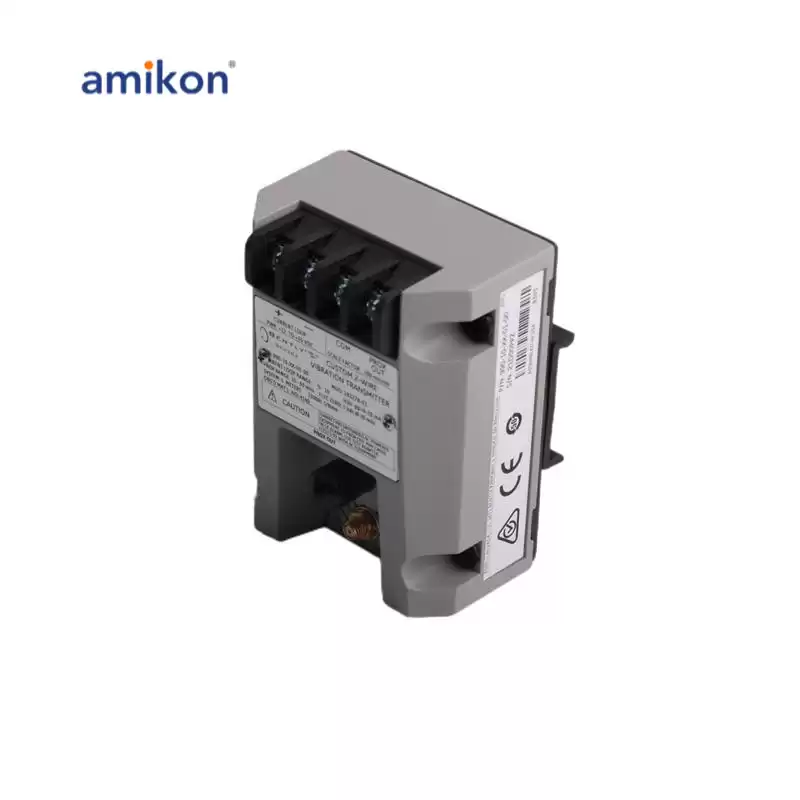

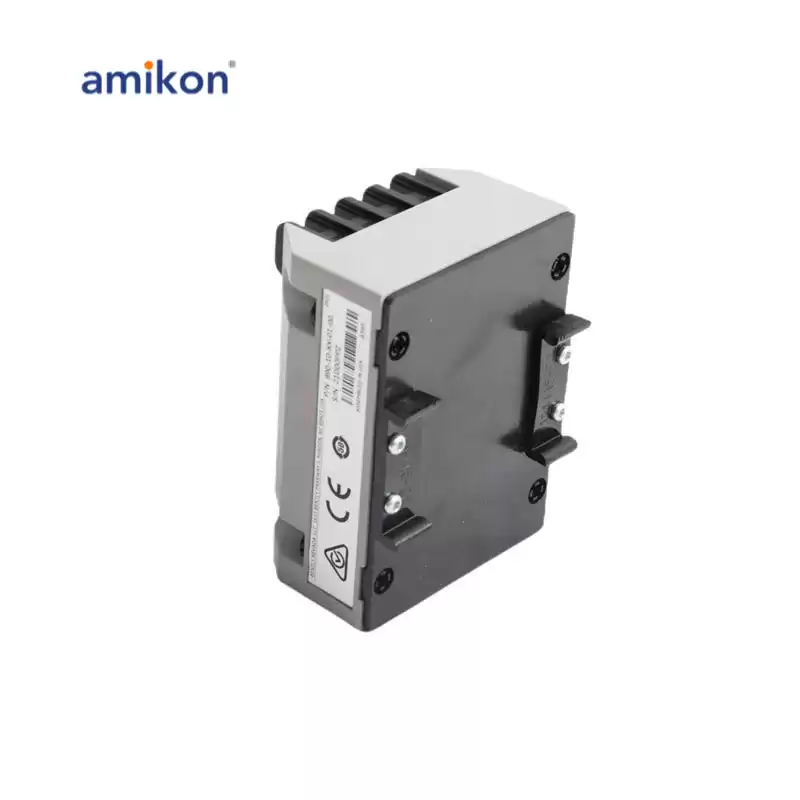

Bently Nevada 990-08-XX-01-00 MOD:165353-01 990 Vibration Transmitter

Brand new and original sealed//Same Day Shipment

  • Dimensions7.3cmx6.3cmx10cm
  • Weight0.5KG
  • Country of OriginUSA
  • Brand/ManufaturerBently Nevada
  • Warranty PeriodOne Year Warranty
  • Payment Term100% Advance Payment T/T Bank Wire Transfer
Facebook Twitter Pinterest LinkedIn 分享
The 990 Vibration Transmitter is primarily designed for Original Equipment Manufacturers (OEMs) of centrifugal air compressors, small pumps, motors, or fans, who prefer to provide a simple 4 to 20 mA proportional vibration signal as an input to their machinery control system. The transmitter is a 2-wire, loop-powered device that accepts input from the 3300 NSv* proximity probe and its matching extension cable, available in 5m and 7m system length options. The transmitter conditions the signal into appropriate peak-to-peak vibration amplitude engineering units and provides this value as a proportional 4 to 20 mA industry-standard signal as the input to the control system, where machinery protection alarming and logic occur.

Key features of the 990 Vibration Transmitter include:
Integrated Proximitor* sensor without the need for external devices
Non-isolated "PROX OUT" and "COM" terminals, along with a coaxial connector, providing dynamic vibration and gap voltage signals for diagnostic purposes
Non-interactive zero and range potentiometers beneath the transmitter label, supporting loop adjustment
Test input pins for quick verification of loop signal output using a signal generator as input
"Uncertainty"/"Signal Failure" circuitry to prevent high outputs or false alarms caused by proximity probe failures or loose connections
Optional DIN rail or panel-mount screws as standard options, simplifying installation
The 990 Vibration Transmitter is designed to offer reliable and straightforward integration into machinery control systems for enhanced monitoring and protection.
