991-01-XX-01-05
|
|
Product Origin: USA
|
Manufacturer：Bently Nevada
|
|
Dimension: 7.3cmx5cmx10cm
|
Weight: 0.49KG
|
|

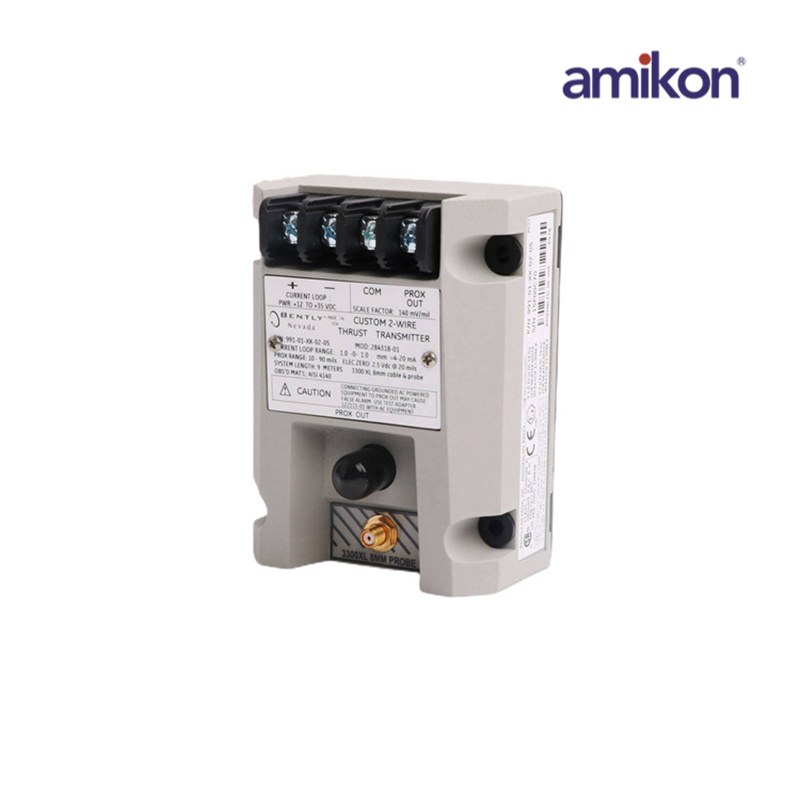

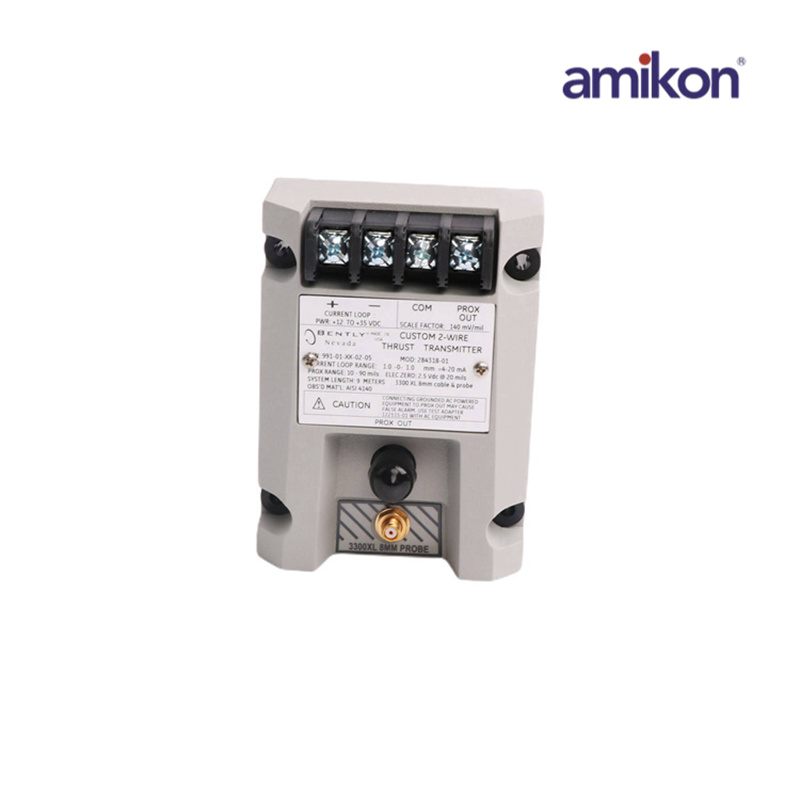

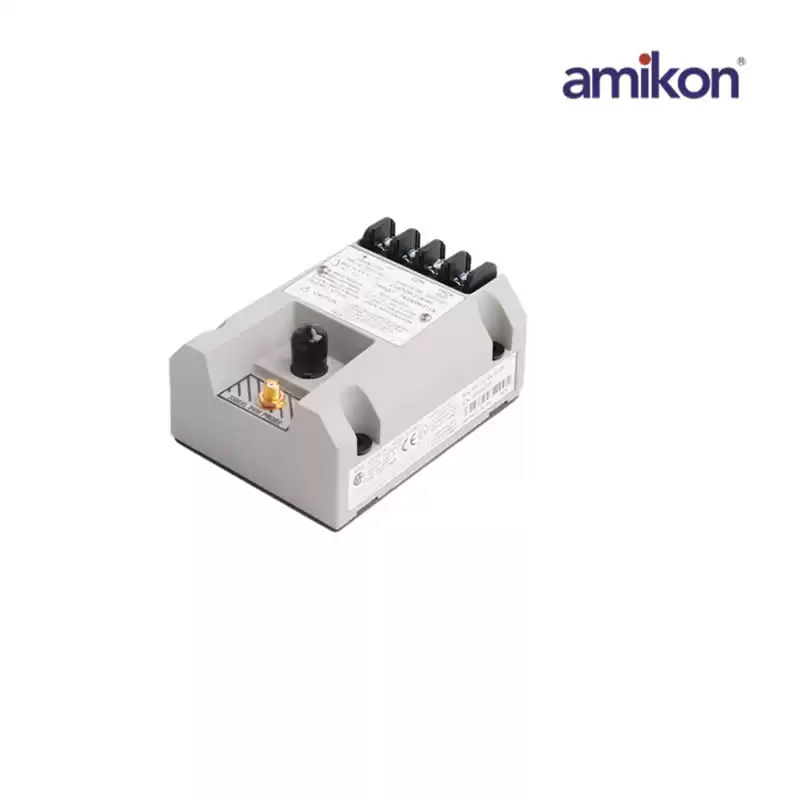

The 991-01-XX-01-05 is 991 Thrust Transmitter.The 991 Thrust Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional axial displacement (thrust) signal as the input to their machinery control system.
The transmitter is a 2-wire, loop-powered device that accepts input from our 3300 NSv* proximity probe and its matching extension cable (available in 5 m and 7 m system length options).The transmitter conditions the signal into appropriate engineering units proportional to the shaft’s axial position1, and provides it as a 4 to 20 mA industry-standard signal for input to the control system where machinery protection alarming and logic occurs2.
|
|
