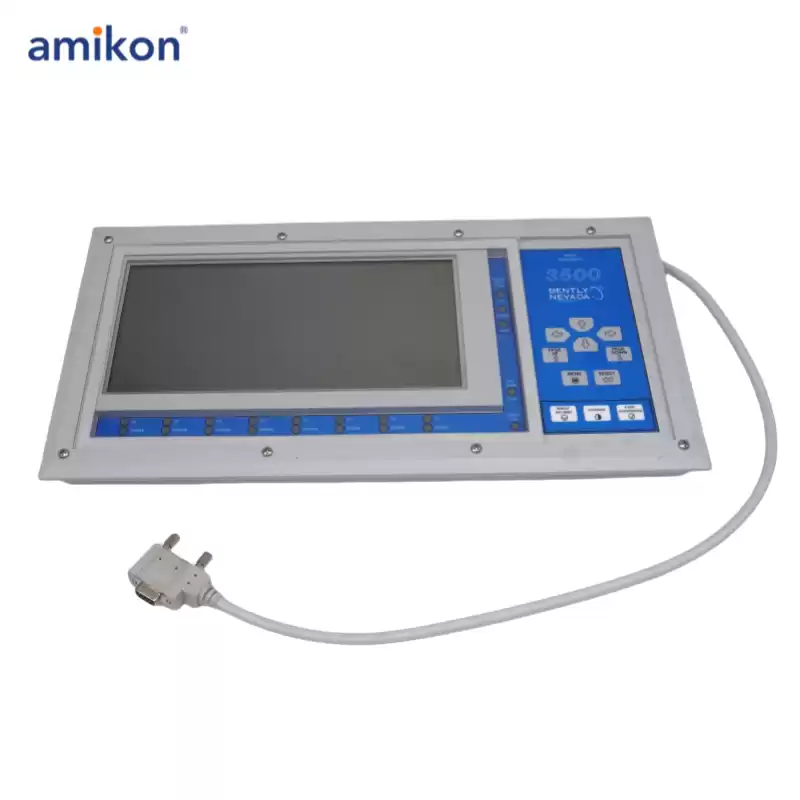

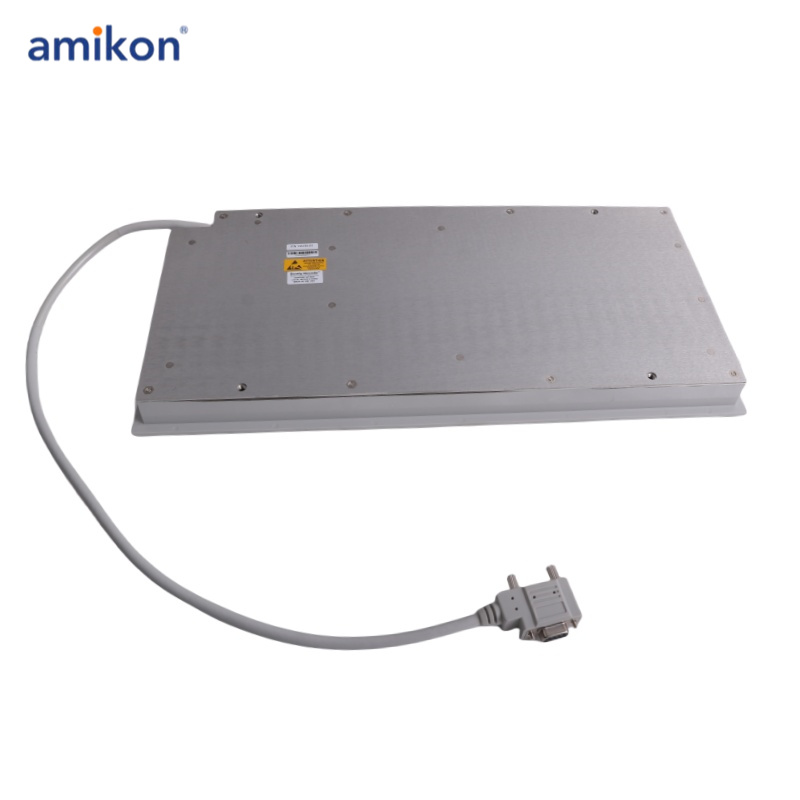

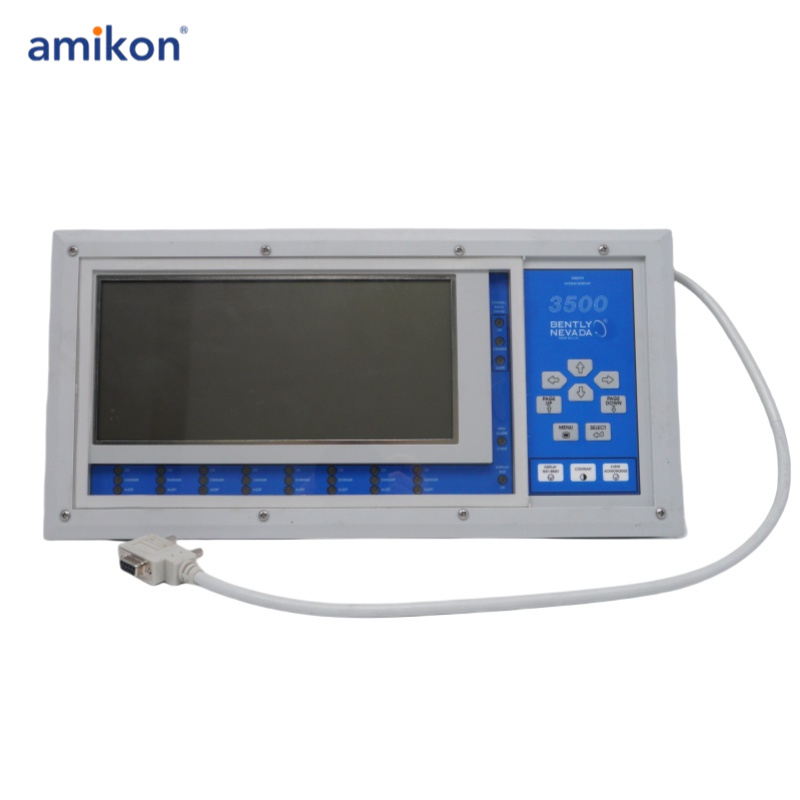

Bently Nevada Back-lighted Display Unit 3500/93 135785-02

Bently Nevada Back-lighted Display Unit 3500/93 135785-02

The 3500/93 135785-02 System Display is designed to meet the requirements of American Petroleum Institute Standard 670 and provide local or remote visual indication of all 3500 Machinery Protection System information residing in the rack including：
-System Event List
-Alarm Event Lists
-All Channel, Monitor, Relay Module, Keyphasor
-Module or Tachometer Module data

The 3500/93 135785-02 System Display is configured using 3500/93 135785-02 Rack Configuration Software. The display can be mounted in any of four ways:

1. Face Mounting – display installs directly over the front panel of any full size 3500 rack using a special hinged support. This permits access to the rack’s buffered output connectors and userinterface buttons and switches without disconnecting or disabling the display.

Note: For this mounting option only, the Display Interface Module (DIM) must be installed in slot 15 (right-most slot) of the rack. The Face Mounting option is not compatible with the 3500 Mini-rack.

2. 19-inch EIA Rack Mounting – display is mounted on 19-inch EIA rails and located up to 100 feet away from the 3500 System. (Up to 4000 feet away from the 3500 System when using the External Power Supply).

3. Panel Mounting – display is mounted in a panel cutout located in the same cabinet or up to 100 feet away from the 3500 System. (Up to 4000 feet away from the 3500 System when using the External Power Supply).

4. Independent Mounting – display is mounted flush against a wall or panel and located up to 100 feet away from the 3500 System. (Up to 4000 feet away from the 3500 System when using the External Power Supply).
