Standard 8mm Probe : TM0180 = M10×1; without armor
Probe Type : 07
Unthreaded Length : 00 = 00 mm
Case Length : 10 = 100 mm
|
|
Dimensions ：
|
20.5x22.5x3.5cm
|
Weight：
|
0.25kg
|
|
Power Consumption：
|
7.02 watts typical
|
Humidity：
|
90%, noncondensing
|
|
Storage Temperature ：
|
-40°C to +155°C
|
Operating Temperature：
|
0°C to +40°C
|
|

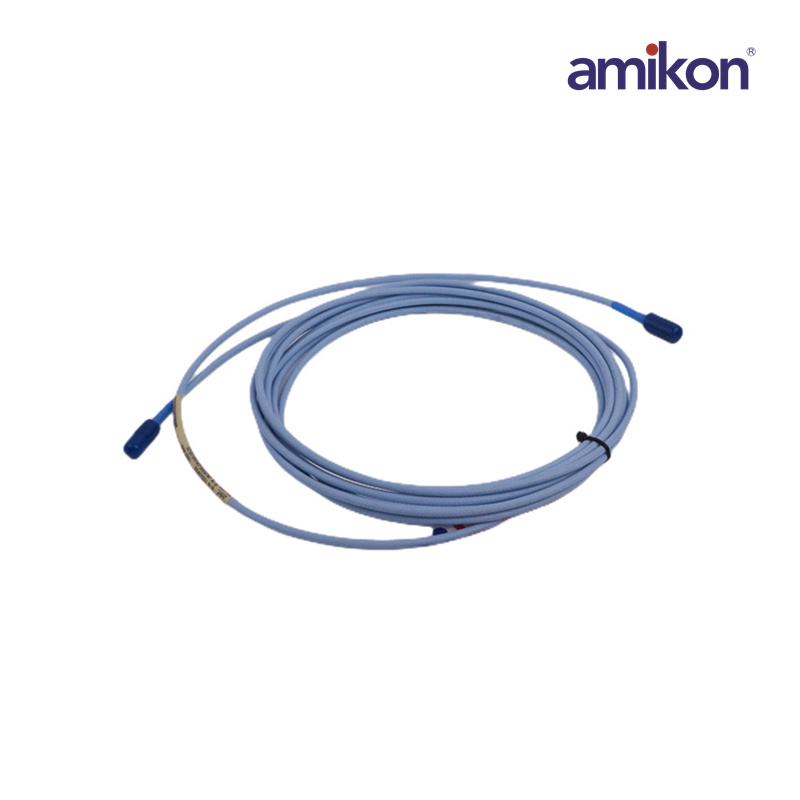

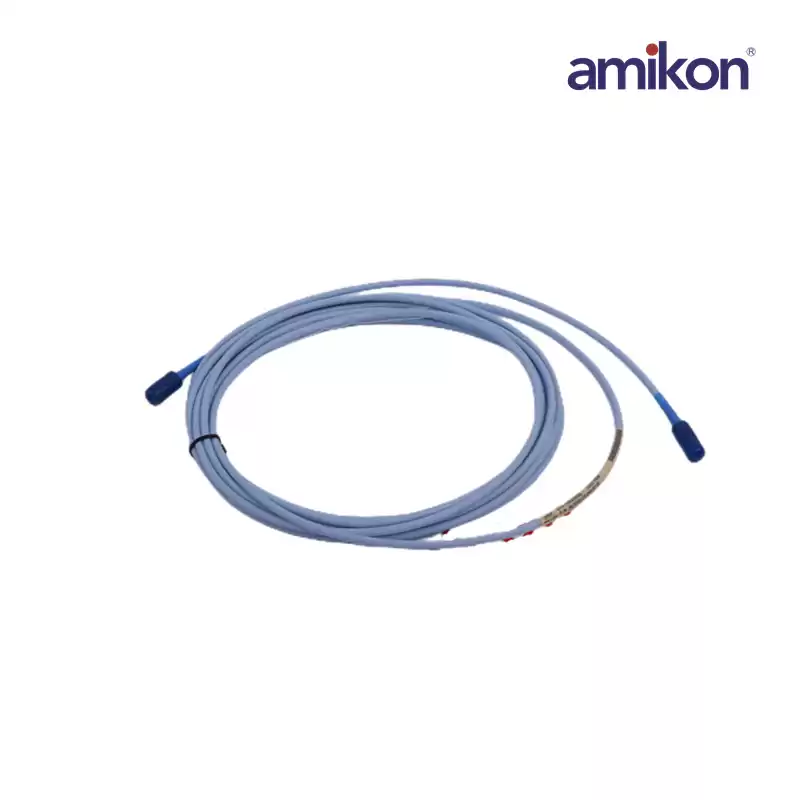

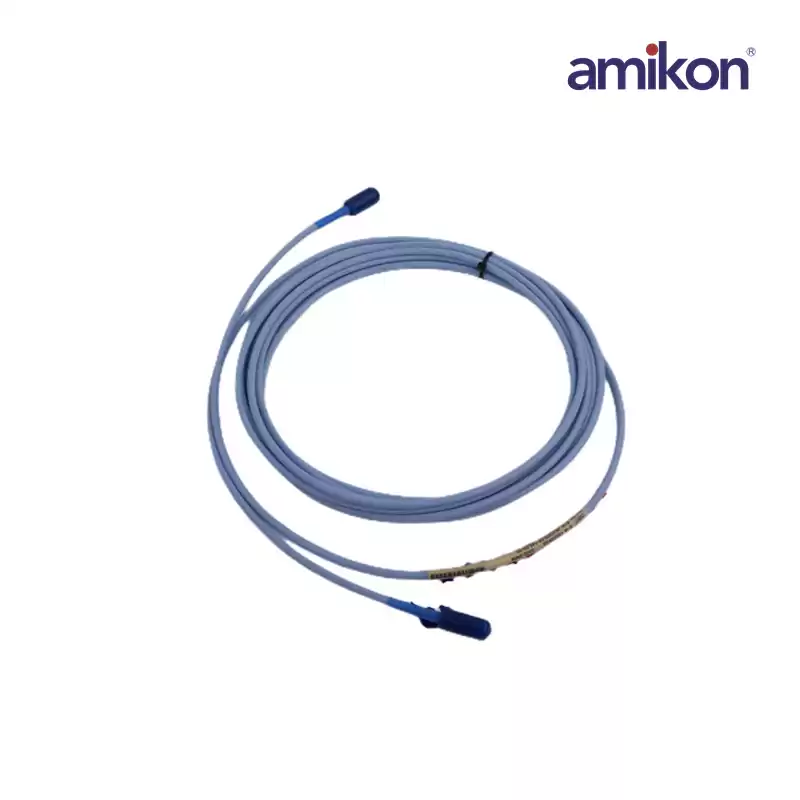

The JNJ5300-08-045-00-00 is Proximity Probe.The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.
The 3300 XL probe, extension cable, and Proximitor sensor have corrosion-resistant, gold-plated ClickLoc connectors.The 3300 XL’s SpringLoc terminal strips require no special installation tools and facilitate faster, more robust field wiring connections by eliminating screw-type clamping mechanisms that can loosen.
|
