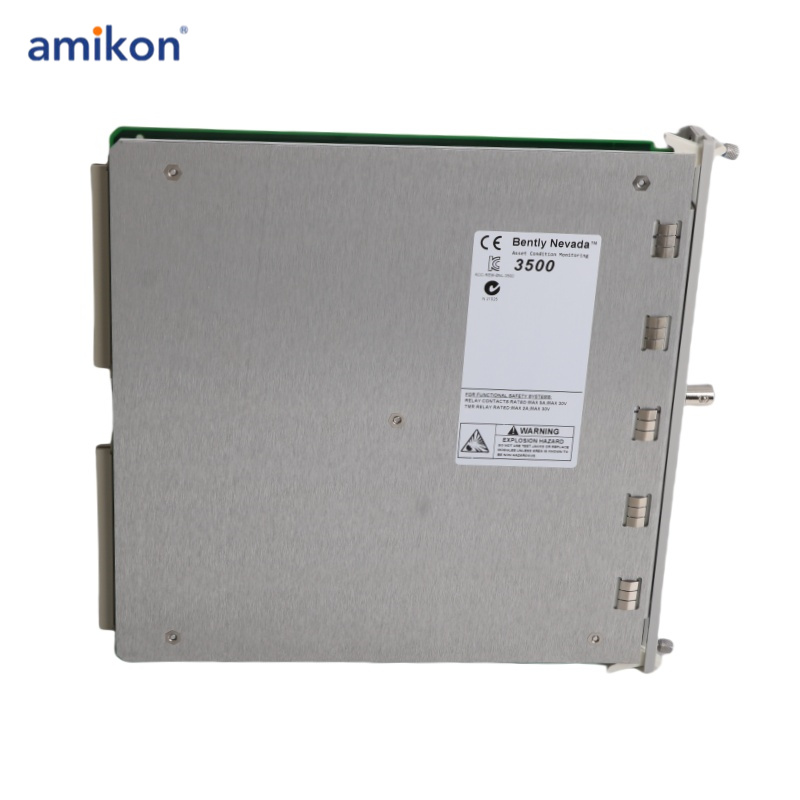

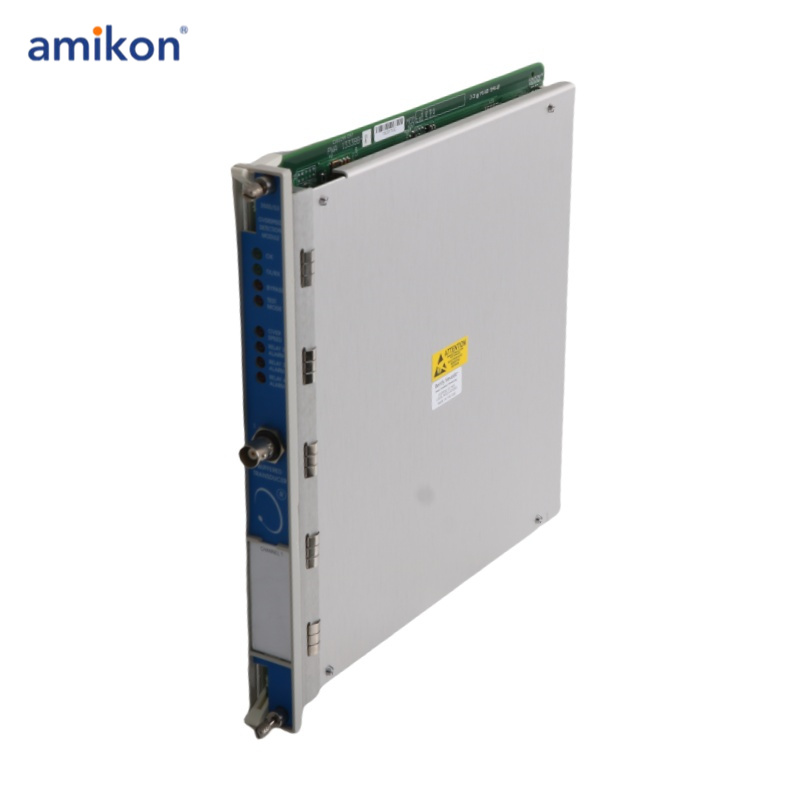

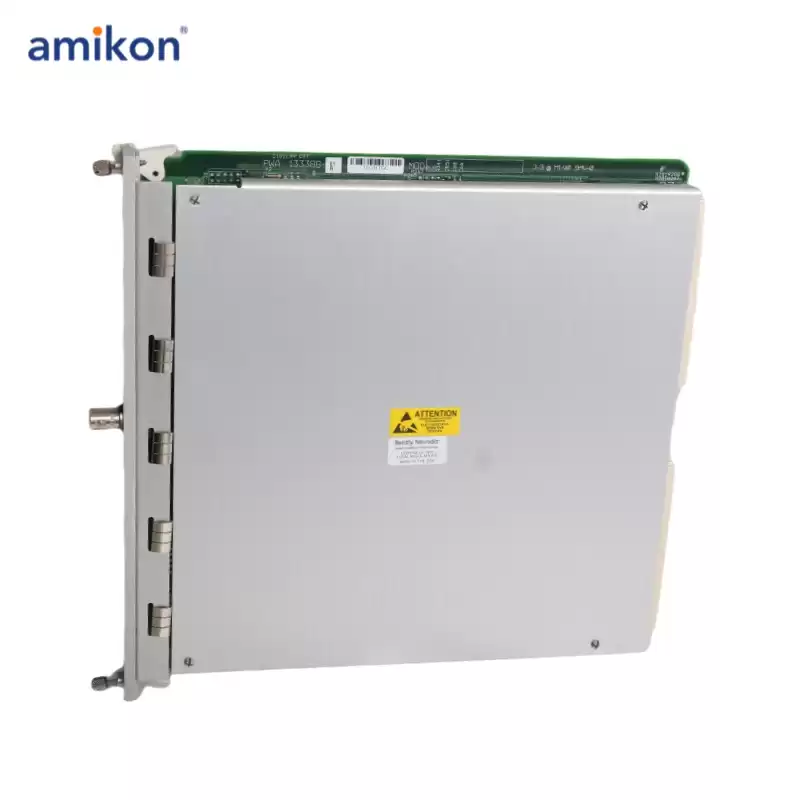

Bently nevada Overspeed Detection System 3500/53-03-00
|
|
3500/53-03-00 Types
|
The Bently Nevada™ Electronic Overspeed Detection System for the 3500 Series Machinery Detection System provides a highly reliable, fast response, redundant tachometer system intended specifically for use as part of an overspeed protection system.
|
|
It is designed to meet the requirements of American Petroleum Institute (API) Standards 670 and 612 pertaining to overspeed protection.
|
|
3500/53 modules can be combined to form a 2-out-of-2 or a 2-out-of-3 (recommended) voting system.
The Overspeed Detection System requires the use of a 3500 rack with redundant power supplies.
|
|
Parts delivered worldwide
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
Specifications
Inputs
Signal:
Each Overspeed Detection module accepts a single
transducer signal from a proximity probe transducer or
magnetic pickup. The input signal range is +10.0 V to -24.0 V. The module internally limits signals that exceed this range.
Input Impedance: 20 k Ω.
Power Consumption: 8.0 watts, typical.
Transducers:
Bently Nevada 3300 8 mm Proximitor 3300 16 mm HTPS,
7200 5 mm, 8 mm, 11 mm, and 14 mm Proximitor; 3300 RAM Proximitor, or Magnetic pickups.
Outputs
Front Panel LEDs
OK LED: Indicates when the 3500/53 Module is operating properly.
TX/XR LED:
Indicates when the 3500/53 Module is communicating with other modules in the 3500 rack.
Bypass LED:
Indicates when the 3500/53 Module is in Bypass Mode.
Test Mode LED:
Indicates when the 3500/53 is in Test Mode.
Alarm LEDs:
Indicates that an alarm condition has occurred with the associated relay.
