About product:
|

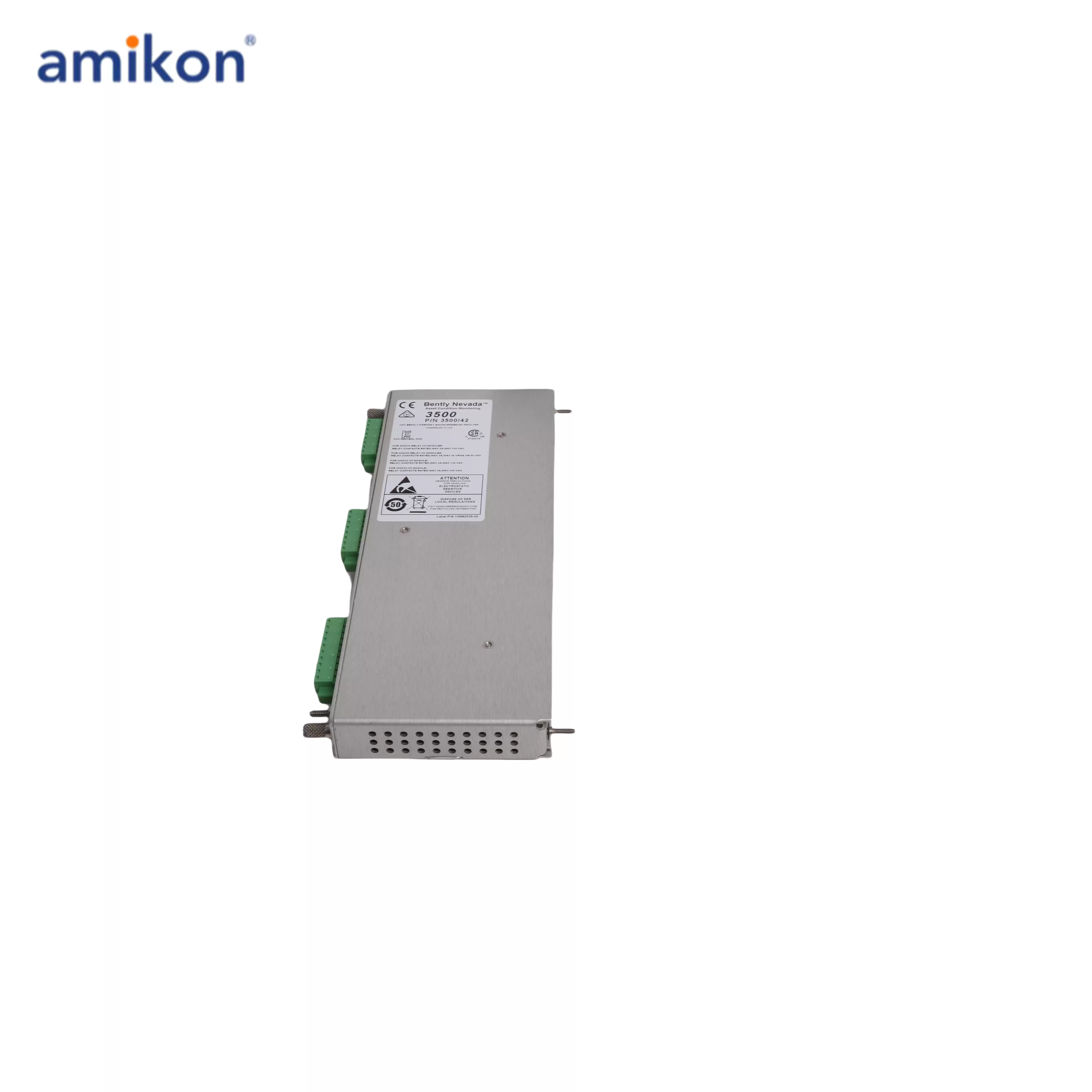

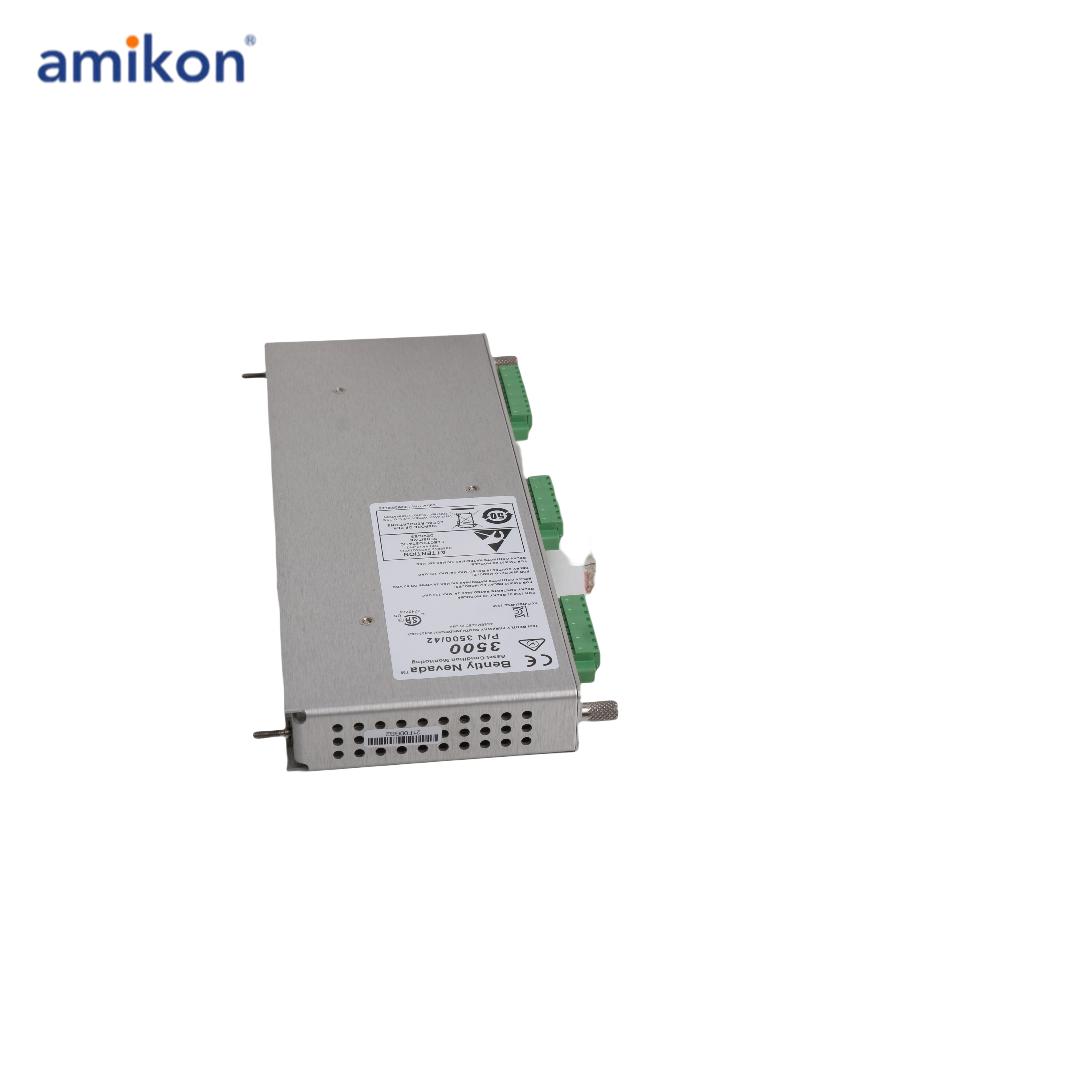

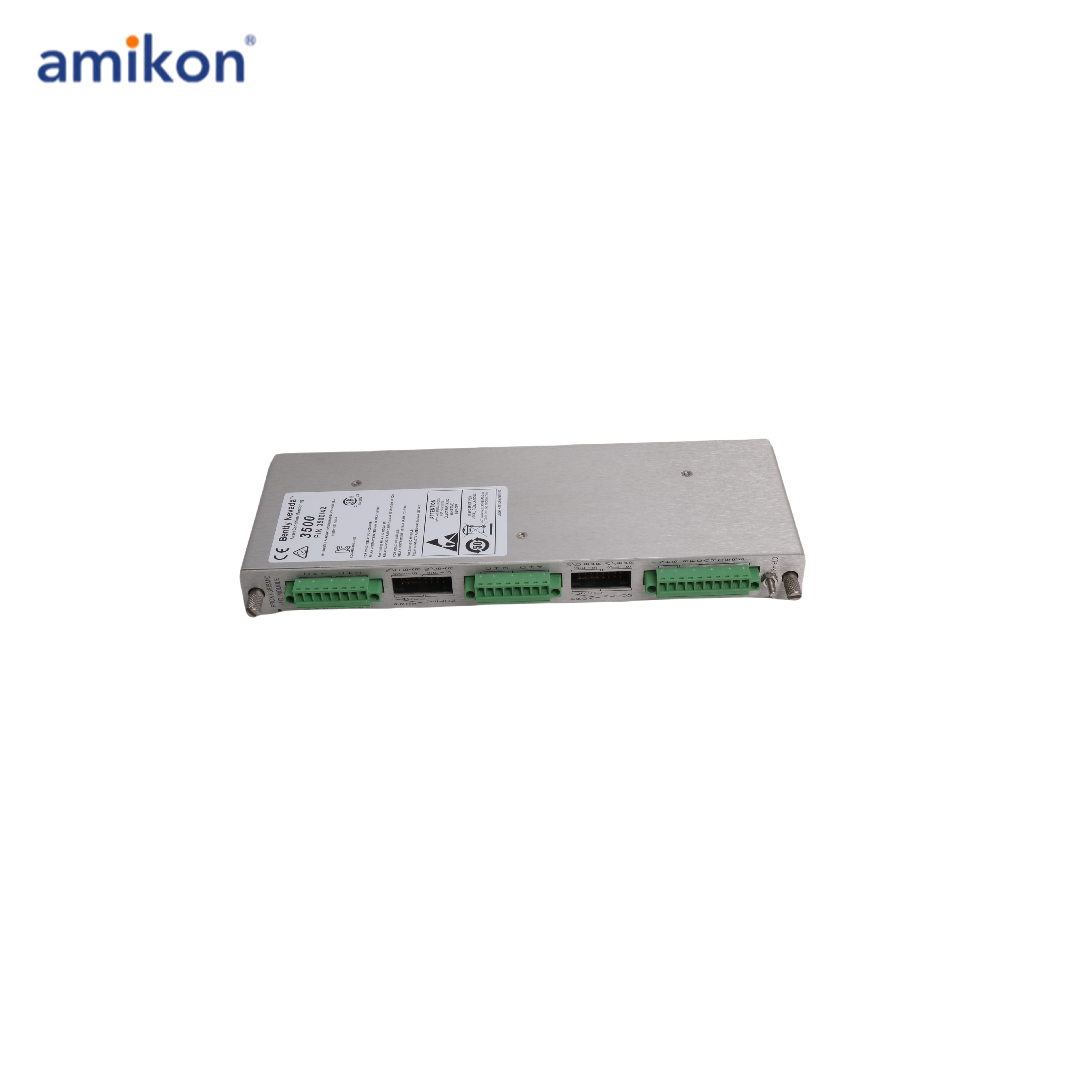

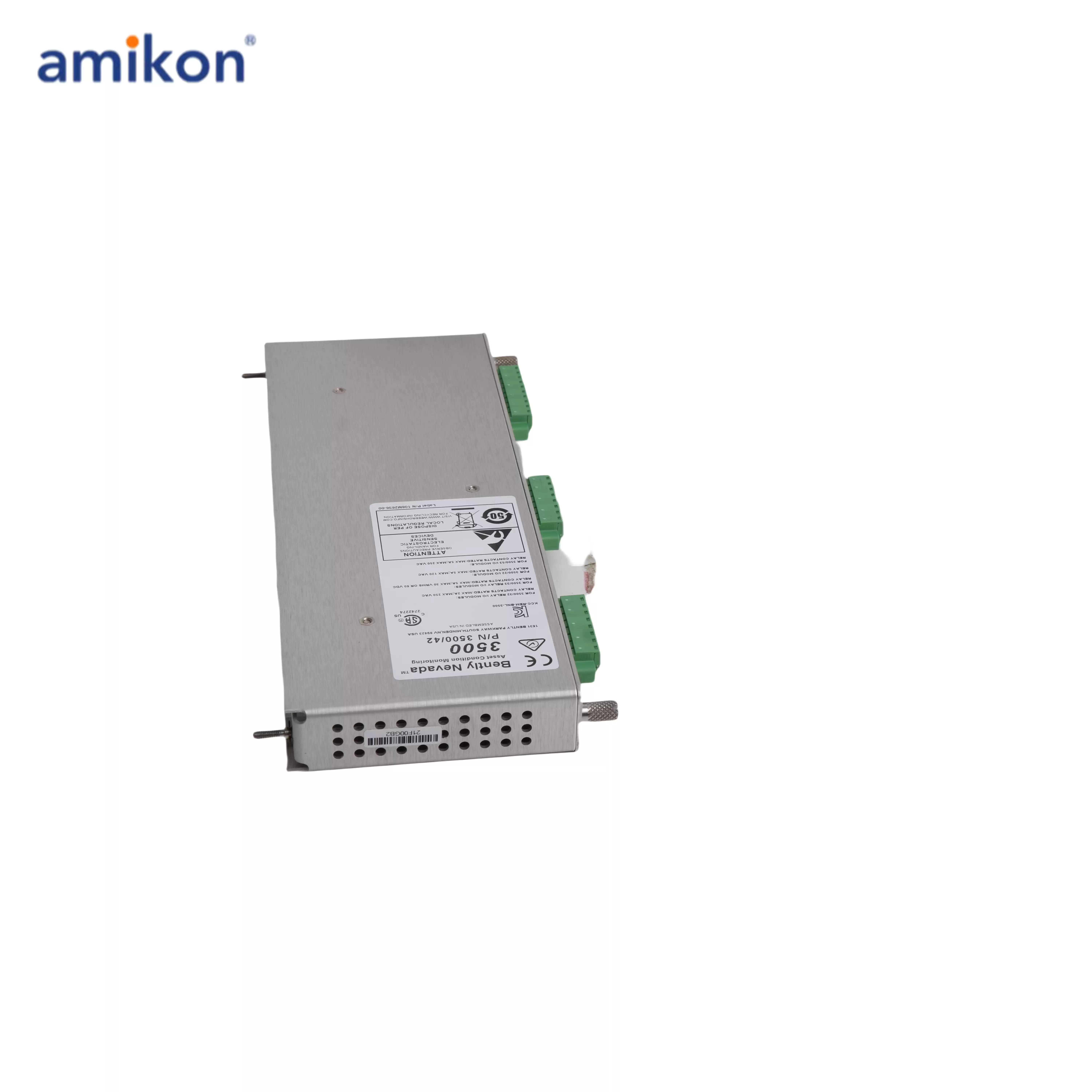

Bently nevada Position Monitor 3500/45 135137-01
|
|
3500/45 135137-01 Types
|
The Bently Nevada 3500/45 Position Monitor is a sophisticated monitoring module designed for the Bently Nevada 3500 Series Machinery Protection System.
|
|
This module is specifically engineered to provide accurate position monitoring for various types of machinery, ensuring optimal performance and safety.
|
|
The
monitor conditions the input and compares the conditioned
signals with user-programmable alarms.
|
|
Parts delivered worldwide
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
Specifications:
Inputs
Signal: Accepts from 1 to 4 signal
inputs
Power : consumption
7.7 watts, typical, using
Position I/O,
or
8.5 watts typical, using AC
LVDT I/O
or
5.6 watts typical, using
Rotary Potentiometer I/O
Input
Impedance： 1 MΩ (DC LVDT inputs)
10 kΩ (Proximitor or RPT
inputs)
137 kΩ (AC LVDT inputs)
200 kΩ (Rotary
Potentiometer inputs)
Description:
The 3500/45 Position Monitor is a 4-channel instrument that accepts input from proximity transducers, Rotary Position Transducers (RPTs), DC Linear Variable Differential Transformers (DC LVDTs), AC Linear Variable Differential Transformers (AC LVDTs), and rotary potentiometers. The monitor conditions the input and compares the conditioned signals with user-programmable alarms.
You can program each channel using the 3500 Rack Configuration Software to perform the following functions:
- Axial (thrust) Position
- Differential Expansion
- Standard Single Ramp Differential Expansion
- Non-standard Single Ramp Differential Expansion
- Dual Ramp Differential Expansion
-l Complementary Differential Expansion
- Case Expansion
- Valve Position
