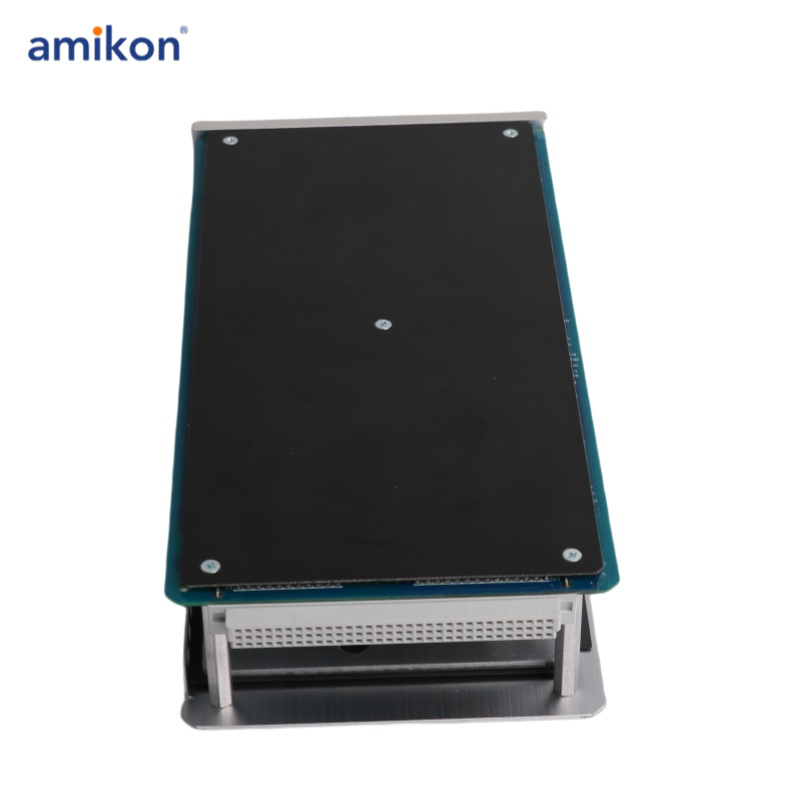

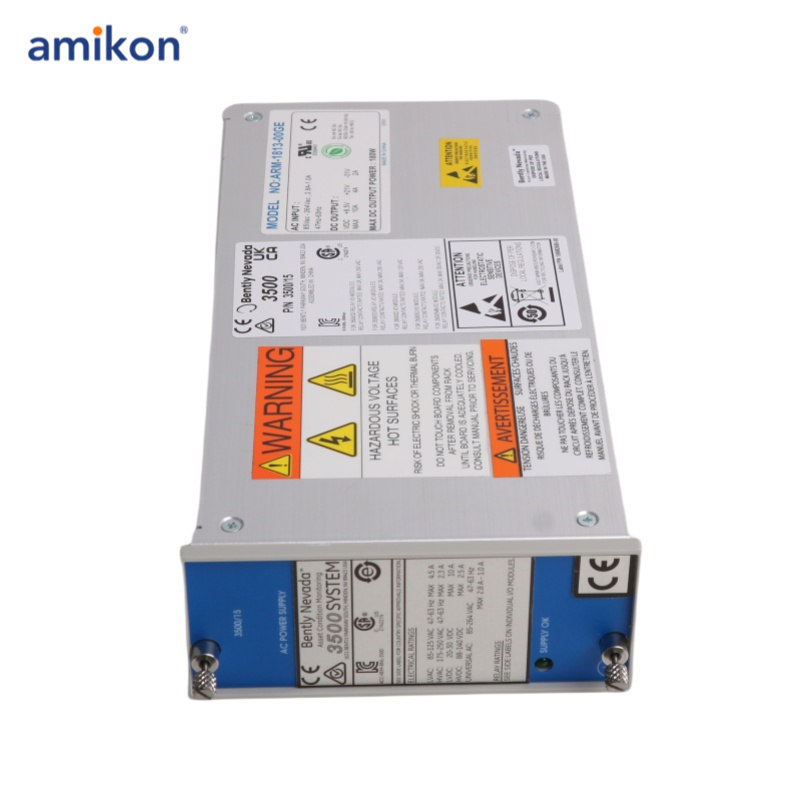

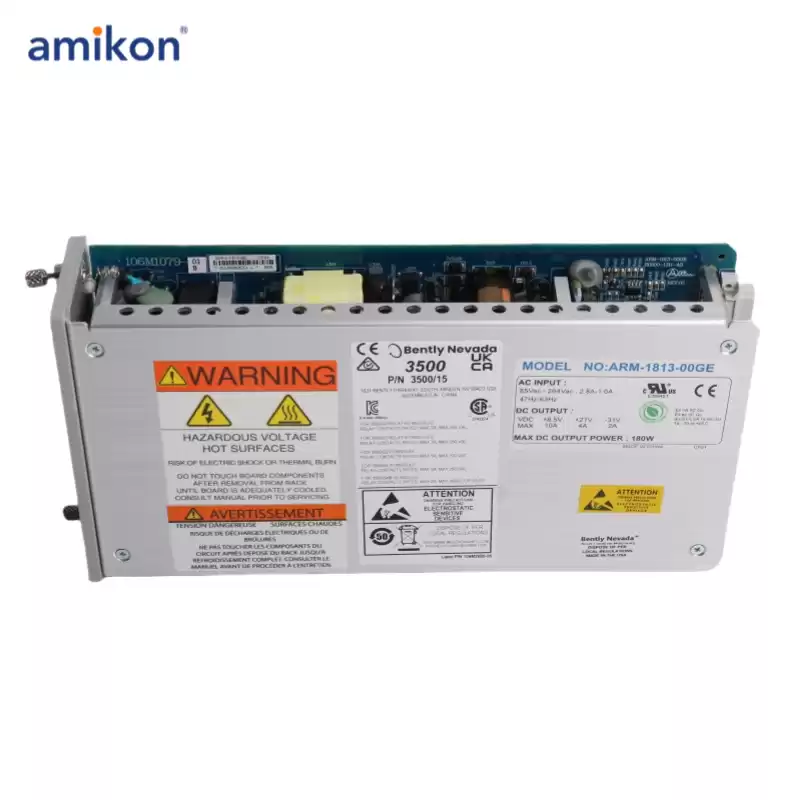

Bently nevada Power Supply Module 3500/15-05-05-01

Brand:

Bently Nevada

Part Number:

3500/15-05-05-01

Model:

Power Supply Module

Long Description:

Manufacturer : Bently Nevada
Product No. : 3500/15-05-05-CN
Product type : 3500/15 Power Supply
Power Supply Type (Top Slot) : 05 = Universal AC Voltage (85 to 264 Vac rms)
Power Supply Type (Bottom Slot) : 05 = Universal AC Voltage (85 to 264 Vac rms)

The 3500/15 AC and DC Power Supplies are half-height modules and must be installed in designated slots on the left side of the rack. The 3500 rack can contain one or two power supplies with any combinations of AC and DC. Either supply can power a full rack.
When two power supplies are installed in a rack, the one in the lower slot acts as the primary supply, and the other in the upper slot acts as the backup supply. If installed, the second supply is the backup for the primary one.
Removing or inserting either power supply module does not disrupt operation of the rack as long as a second power supply is installed.
The 3500/15 AC and DC Power Supplies accepts a wide range of input voltages and converts them to voltages acceptable for use by other 3500 modules. The following power supplies
are available with the 3500 Series Machinery Protection System:
-Universal AC Power
-High Voltage DC Power Supply
-Low Voltage DC Power Supply
