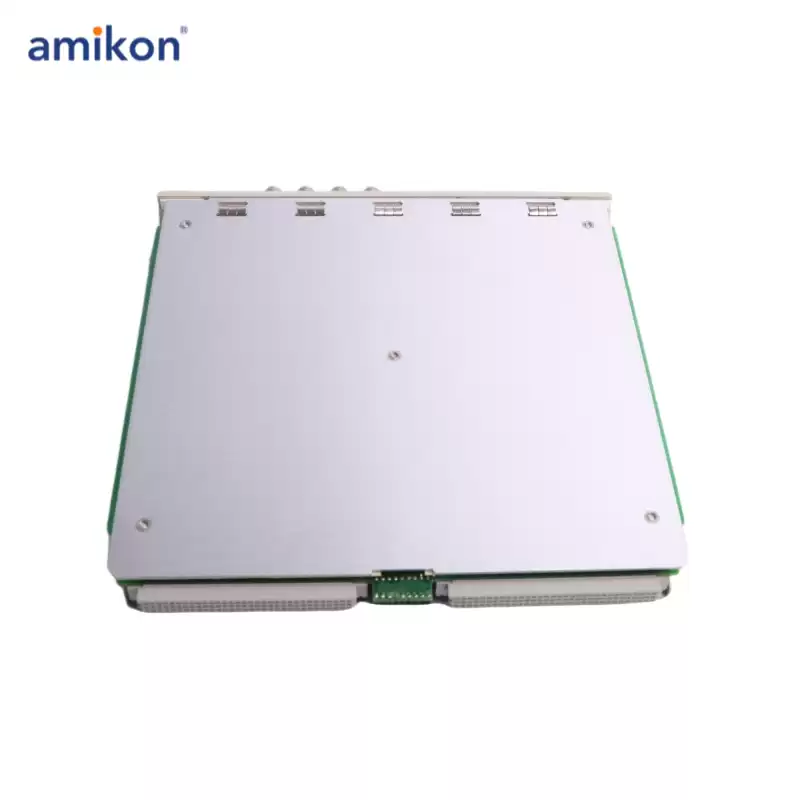

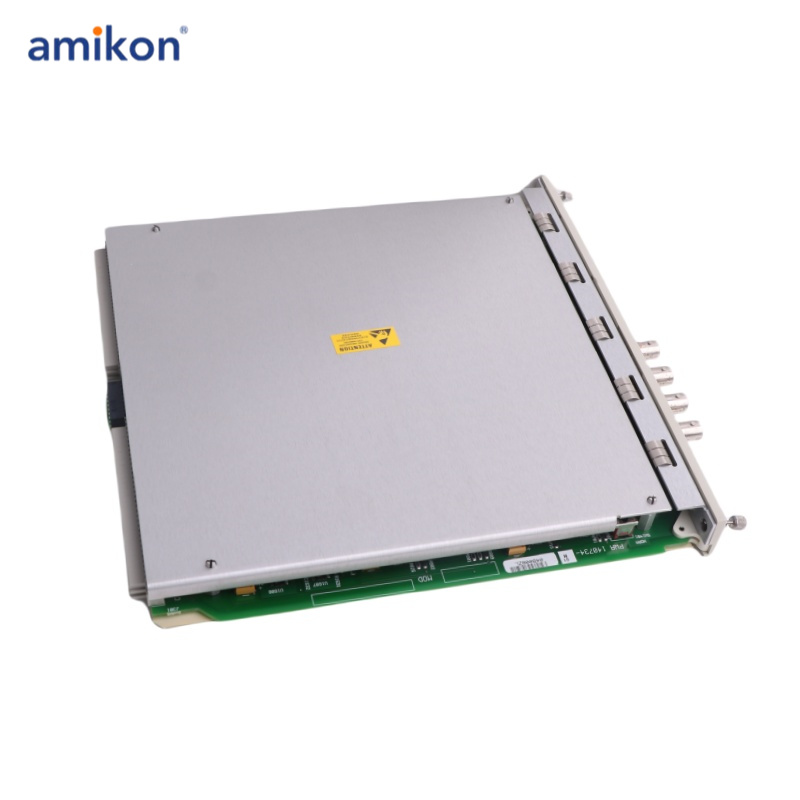

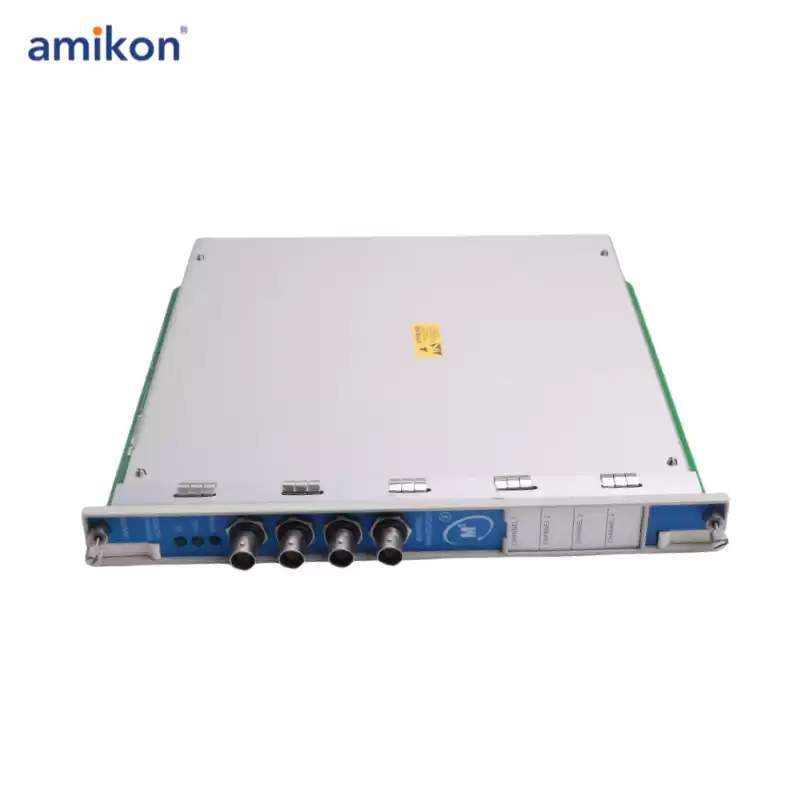

The3500/40M Proximitor Monitoris a four-channel monitor that accepts input from Bently Nevada proximity transducers, conditions the signal to provide various vibration and position measurements, and compares the conditioned signals with user-programmable alarms. The user can program each channel of the 3500/40M with the 3500 Rack Configuration
Software to perform any of the following functions:
1.Radial vibration
2.Eccentricity
3.Thrust position
4.Differential expansion
5.REBAM
The primary purpose of the3500/40MProximitor Monitoris to provide the following:
-Machinery protection by continuously comparing monitored parameters against configured alarm setpoints to drive alarms
-Essential machine information for both operations and maintenance personnel
Each channel, depending on configuration, typically conditions its input signal to generate various parameters called static values. You can configure alert setpoints for each active static value and danger setpoints for any two of the active static values.
|
You program the monitor channels in pairs. The monitor channels can perform up to 2 of these functions at a time. Channels 1 and 2 can perform one function, while channels 3 and 4 perform another (or the same) function.
|
