The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements3.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space

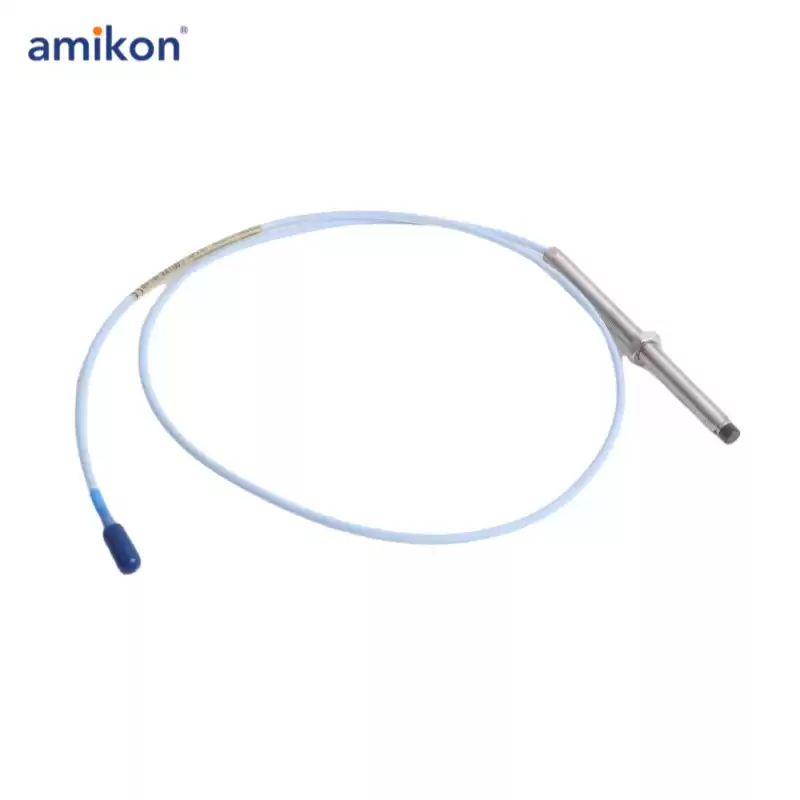

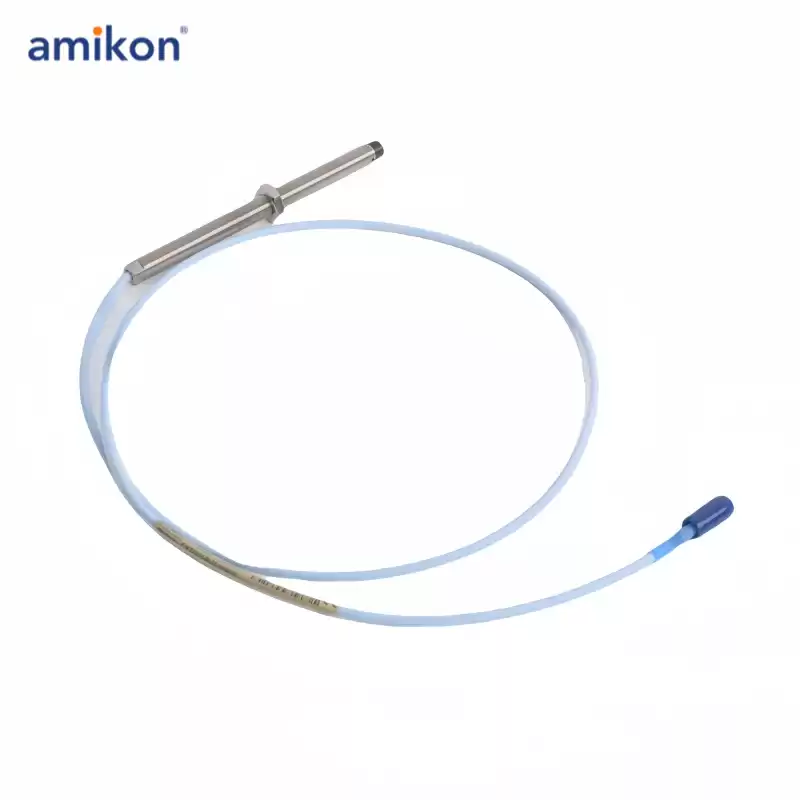

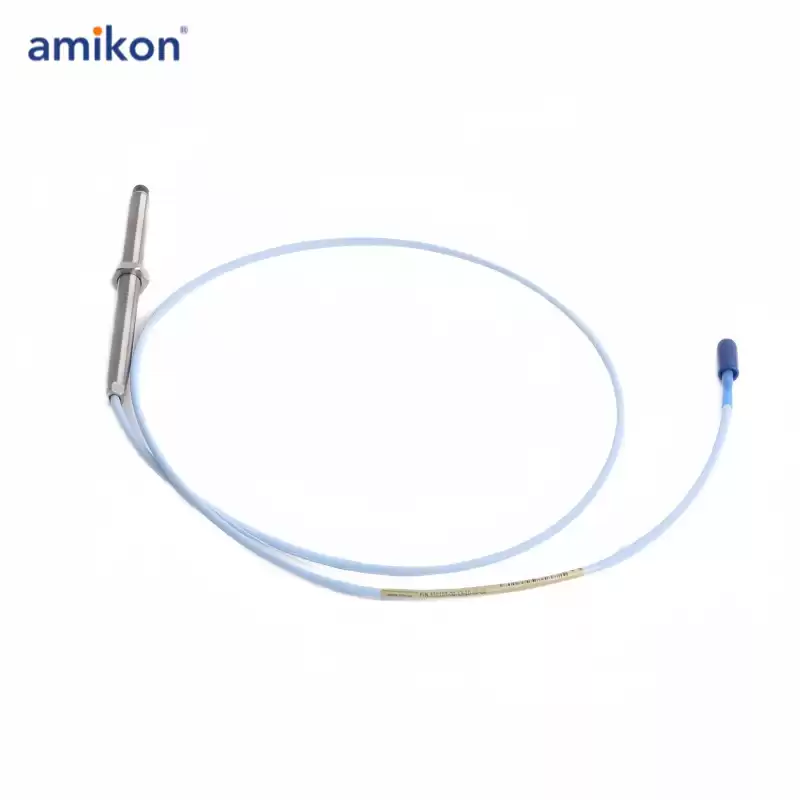

FAQ: Bently Nevada Proximity Probe 330103-00-13-10-12-00
Q1: What is the primary function of the 330103-00-13-10-12-00 proximity probe?
A: This probe is used for monitoring vibration, displacement, and position in critical rotating machinery such as turbines, compressors, and pumps. It plays a vital role in machinery protection and diagnostics.
Q2: What is the cable length of this probe?
A: The cable length for this model is 13 feet (approximately 4 meters), making it suitable for installations with moderate distance requirements.
Q3: What is the thread type of this probe?
A: The 330103-00-13-10-12-00 proximity probe comes with an imperial (UNF) thread, ensuring compatibility with installations requiring this threading standard.
