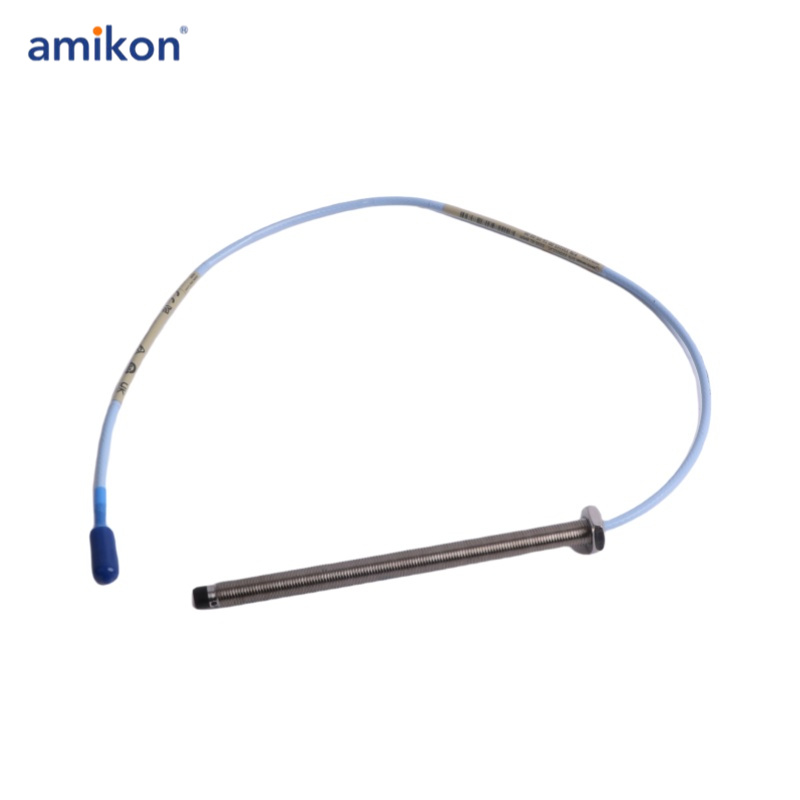

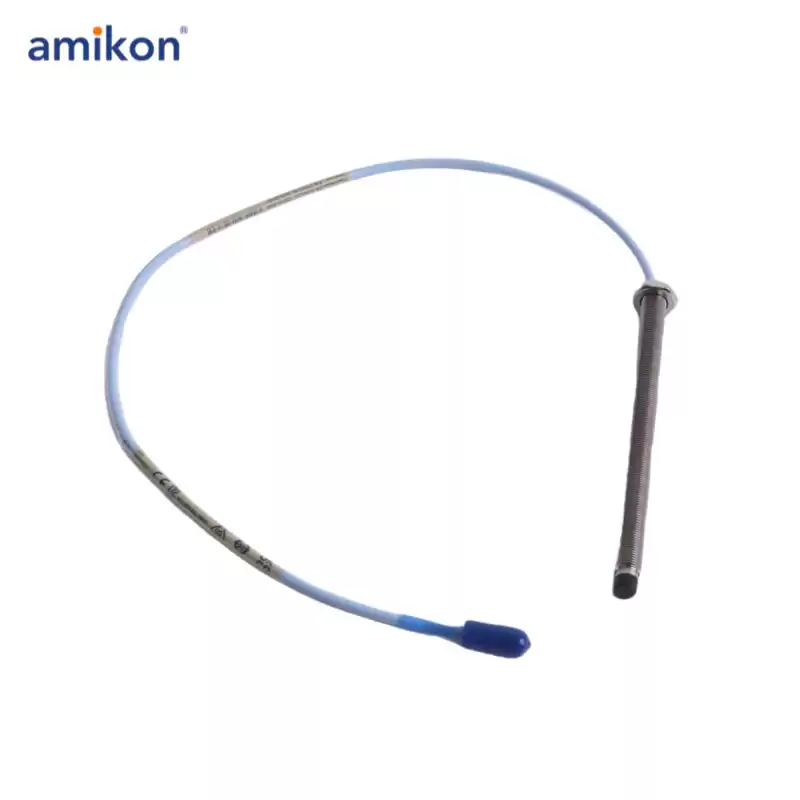

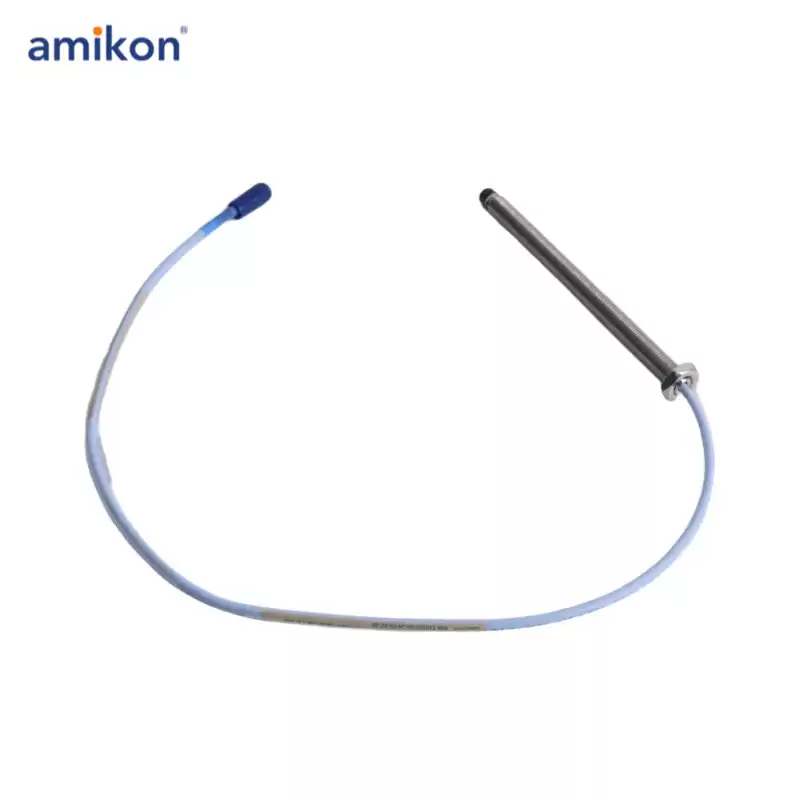

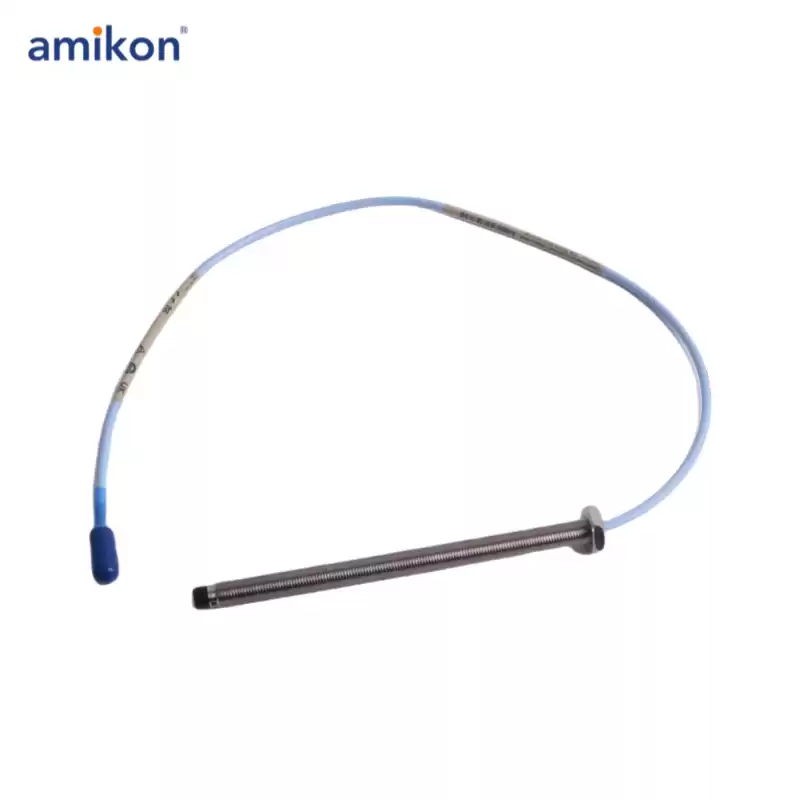

Bently nevada Proximity Probes 330103-00-14-10-02-05
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other nonXL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
FAQ:
1. What is the Bently Nevada Proximity Probe 330103-00-14-10-02-05?
The 330103-00-14-10-02-05 is a proximity probe used for measuring the position of rotating machinery, typically in the context of vibration monitoring and shaft position detection. It is a part of the Bently Nevada 3300 XL Series and is commonly used in industries such as oil & gas, power generation, and mining for machinery protection and predictive maintenance.
2. How does the Bently Nevada Proximity Probe work?
The 330103-00-14-10-02-05 proximity probe works on the principle of electromagnetic induction. It uses a sensor element to measure the displacement of a target (usually the shaft) as it moves within the proximity of the probe. The displacement is then converted into an electrical signal, which can be used to assess the health and condition of the machinery, allowing for real-time monitoring.
