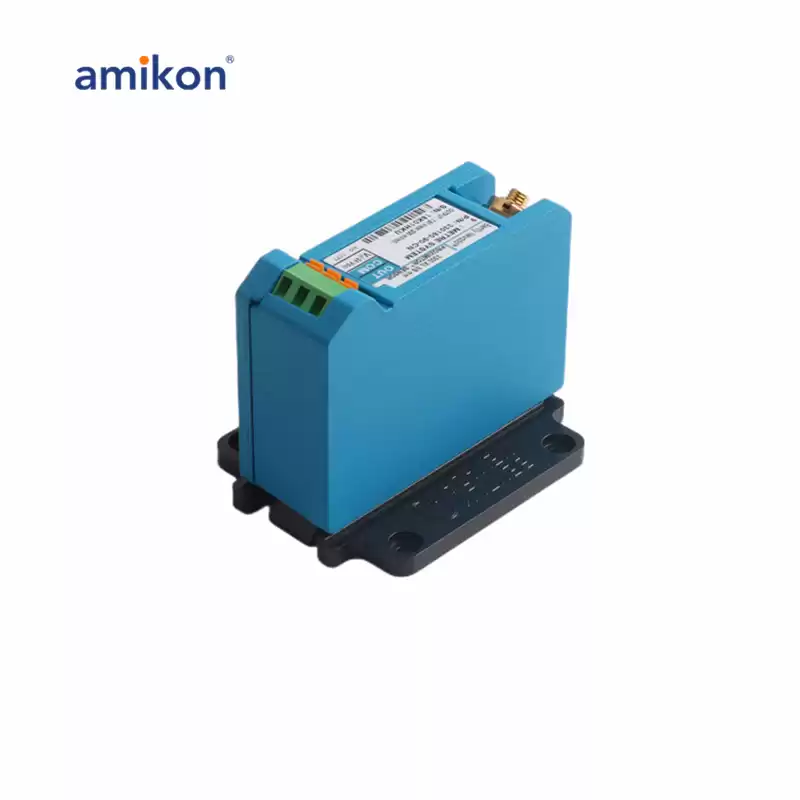

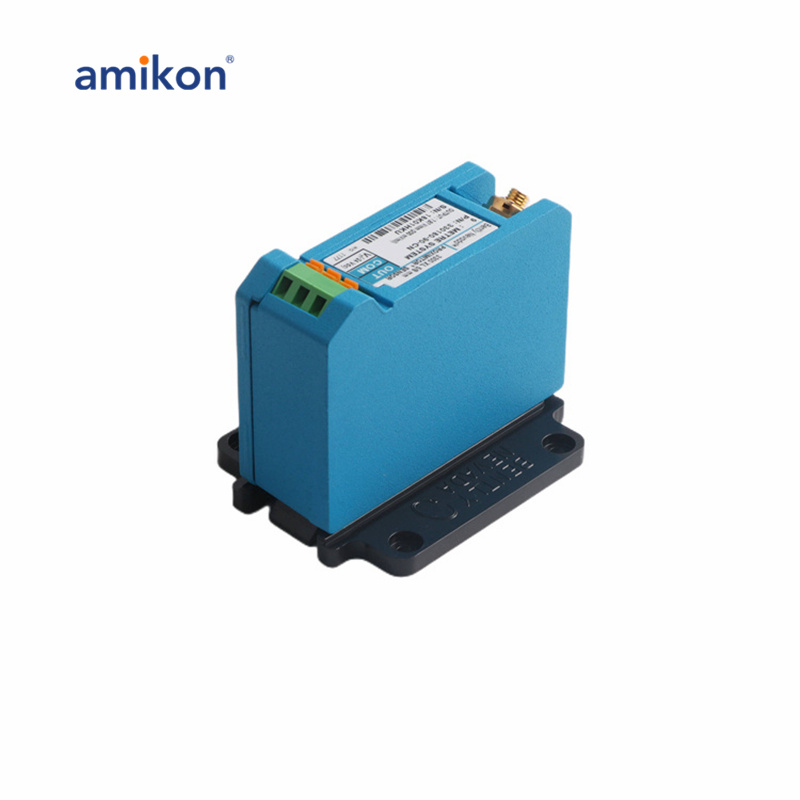

The 3300 XL NSv Proximitor Sensor has similar features to those found in the 3300 XL 8 mm
Proximitor Sensor. Its thin design allows the user to mount it in either a high-density DIN-rail
installation or a more traditional panel mount configuration. Improved RFI/EMI immunity allows
the 3300 XL NSv Proximitor Sensor to achieve European CE mark approvals without any special
mounting considerations. This RFI immunity also prevents nearby high frequency radio signals from
adversely affecting the transducer system.
|
|
|
330180-90-00 Data sheet
|
0.2 to 1.5 mm2 (16 to 24 AWG) [0.25 to 0.75 mm2 (18 to 23
AWG) with ferrules]. Recommend using three
conductor shielded triad cable.Maximum length of 305 metres
(1,000 feet) betweenhs.
|
|
the 3300XL NSv Proximitor Sensor and the monitor. See the frequency
response graphs Figure 16 and Figure 17 for signal rolloff at
high frequencies when usinglonger field wiring lengt
|
|
7.87 V/mm (200 mV/mil) +12.5%/-20% including interchangeability
error when measured in increments of 0.25 mm (10 mils)
over the 1.5 mm (60 mil) linearrange.
|
|
