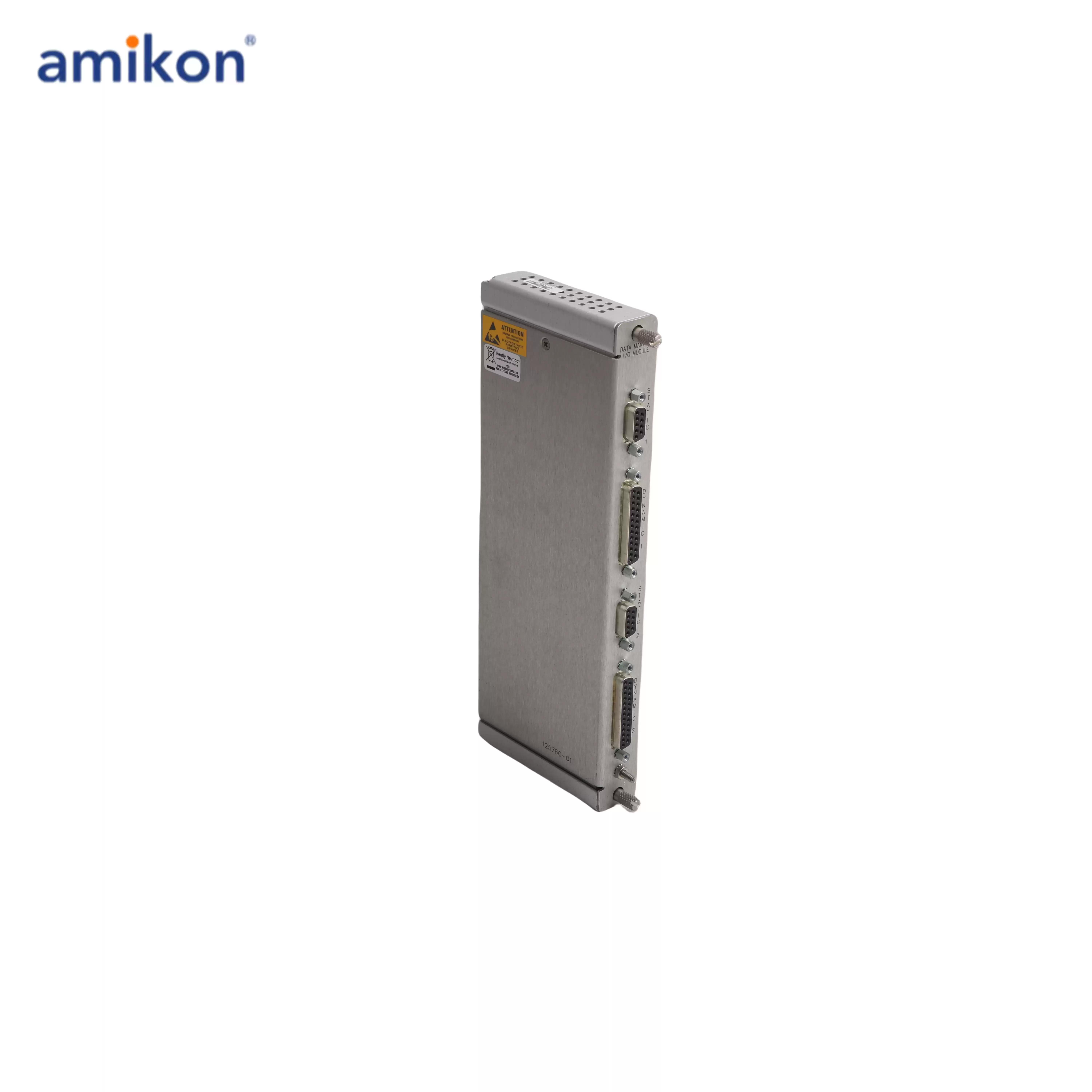

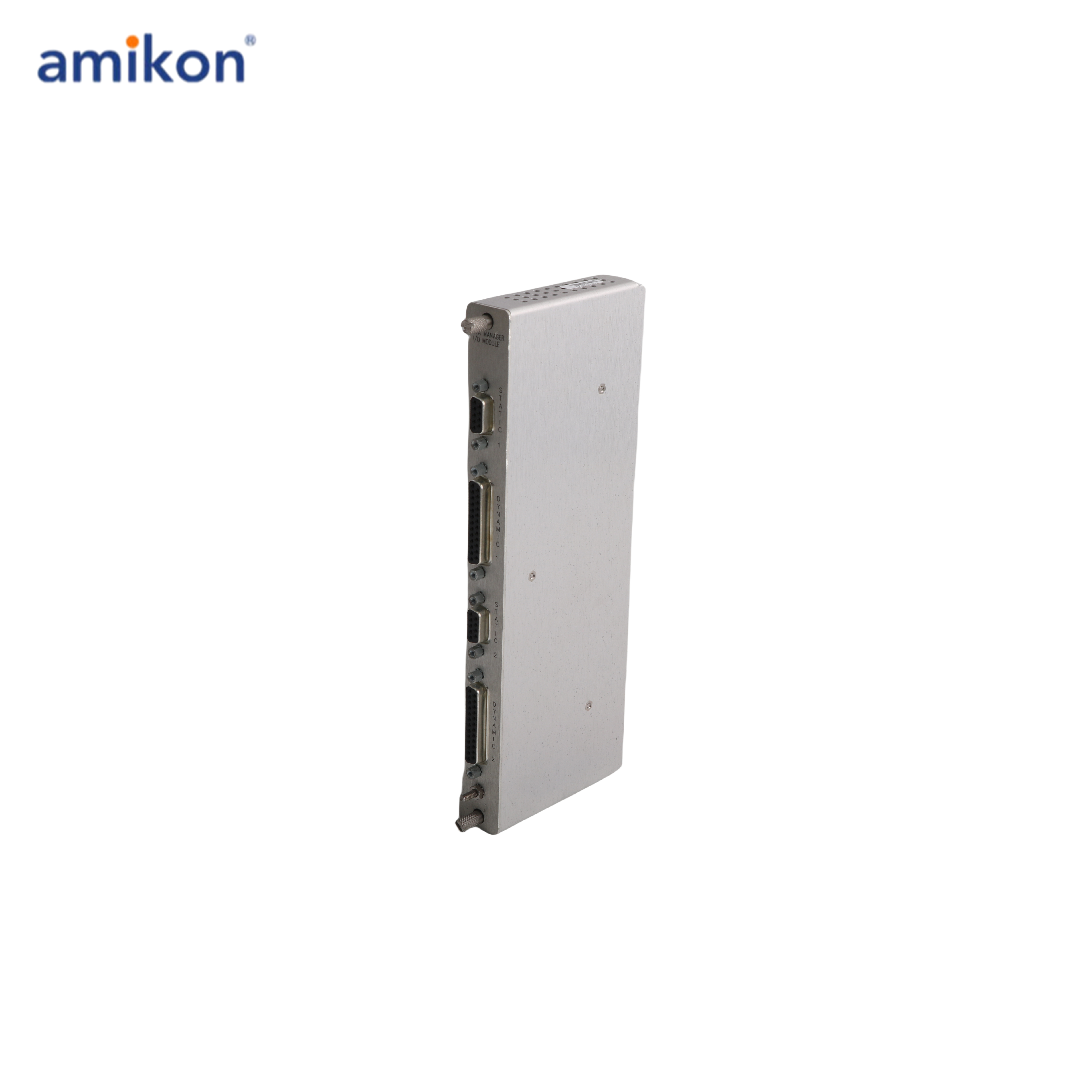

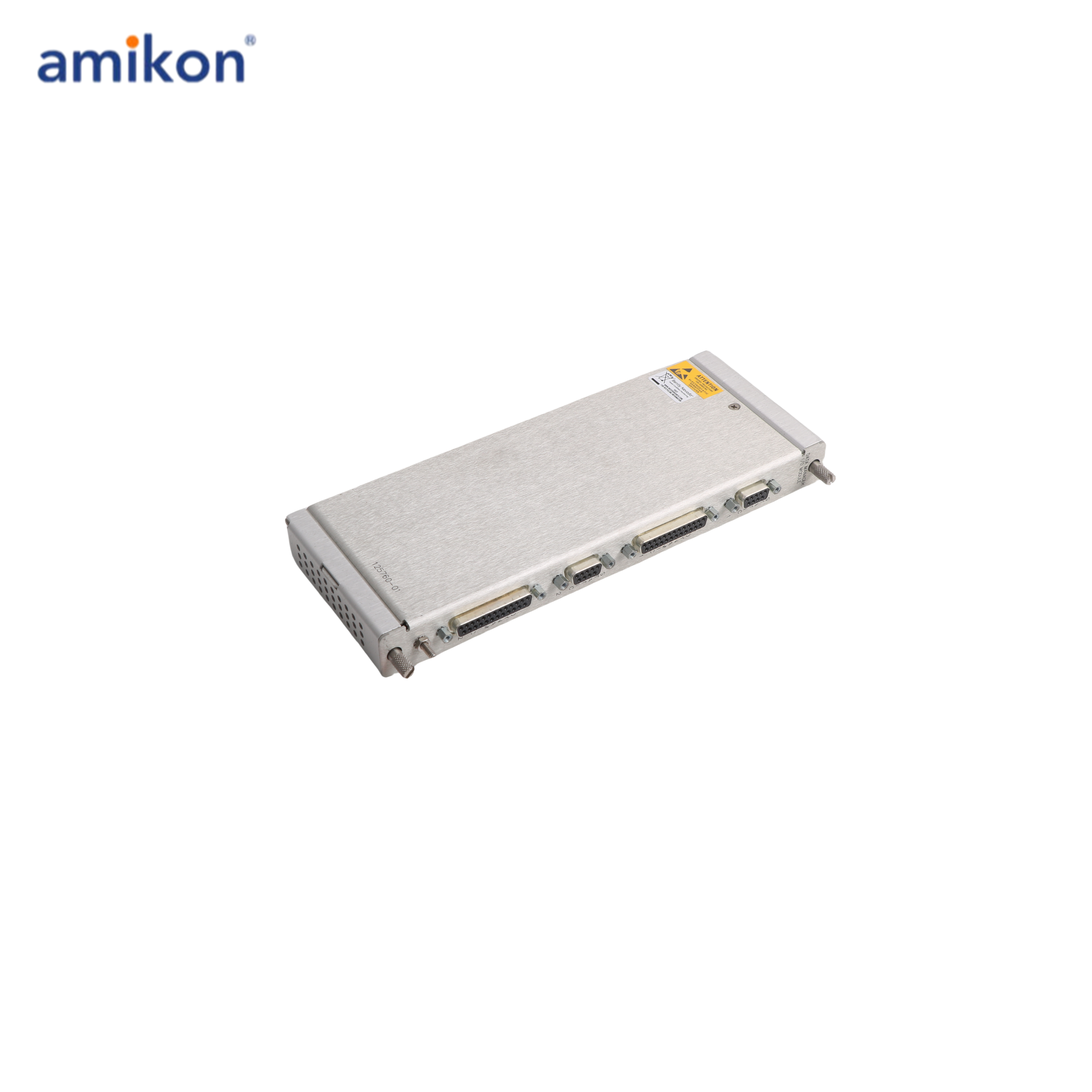

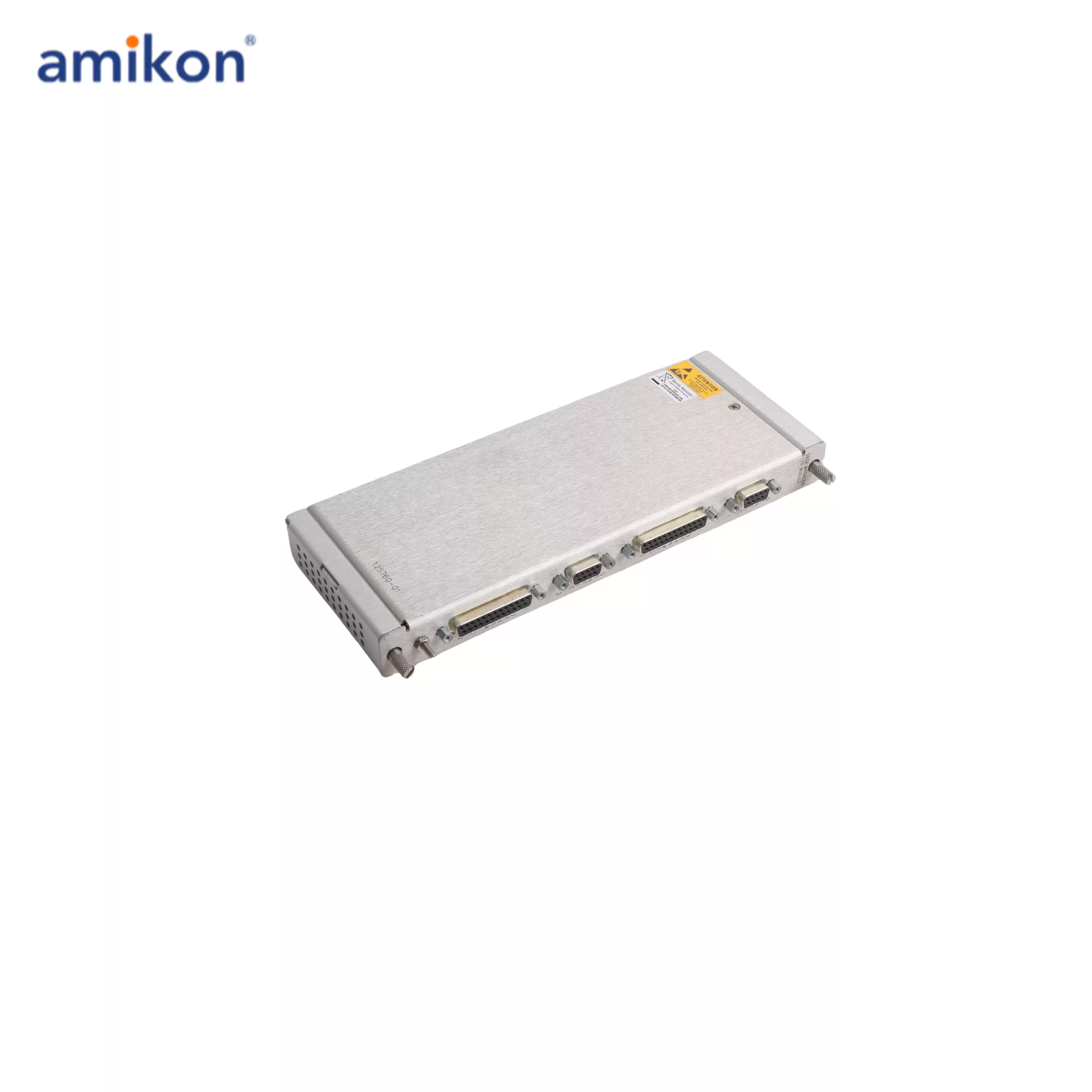

Bently nevada Rack Interface Module 3500/20 125760-01
|
|
3500/20 125760-01 Types
|
The Bently Nevada 3500/20 Rack Interface Module is an essential component of the Bently Nevada 3500 Series Machinery Protection System.
|
|
This module serves as a communication hub between the rack-mounted monitoring modules and the external control systems, ensuring seamless data transmission and system integration.
|
|
The Rack Interface Module (RIM) is the primary interface to the
3500 rack.
|
|
Parts delivered worldwide
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
Specifications:
Inputs
Power Consumption：4.75 watts, typical
Data Front panel
Standard ：RS232 serial communications
Data Rate ：38.4 k baud.
I/O modules
Standards：RS232/RS422 serial communications
Internal modem communications
Data Rate：38.4 k baud maximum,serial communications.
14.4 k baud, internal modem communications.
Outputs
Front Panel LEDs
OK LED： Indicates when the RIM is operating properly.
TX/RX LED：Indicates when the RIM is communicating with other modules in the 3500 rack.
TM LED : Indicates when the 3500 rack is in Trip Multiply.
CONFIG OK LED: Indicates that the 3500 rack has a valid configuration.
I/O Module OK Relay: Relay to indicate when the 3500 rack is operating normally or when a fault has been detected within the rack. User can select either an "OPEN" or "CLOSED" contact to annunciate a NOT OK condition. This relay always
operates as "Normally Energized".
OK relay : Rated to 5A @ 24 Vdc/ 120 Vac, 120 Watts/600 VA Switched Power.
Normally closed contacts :Arc suppressors are provided.
Description:
The Rack Interface Module (RIM) is the primary interface to the 3500 rack. It supports a proprietary protocol used to configure the rack and retrieve machinery information. The RIM must be located in slot 1 of the rack (next to the power supplies). The RIM supports compatible Bently Nevada external communications processors such as TDXnet, TDIX, and DDIX. While the RIM provides certain functions common to the entire rack, the RIM is not part of the critical monitoring path and has no effect on the proper, normal operation of the overall monitoring system. One RIM is required per rack.
