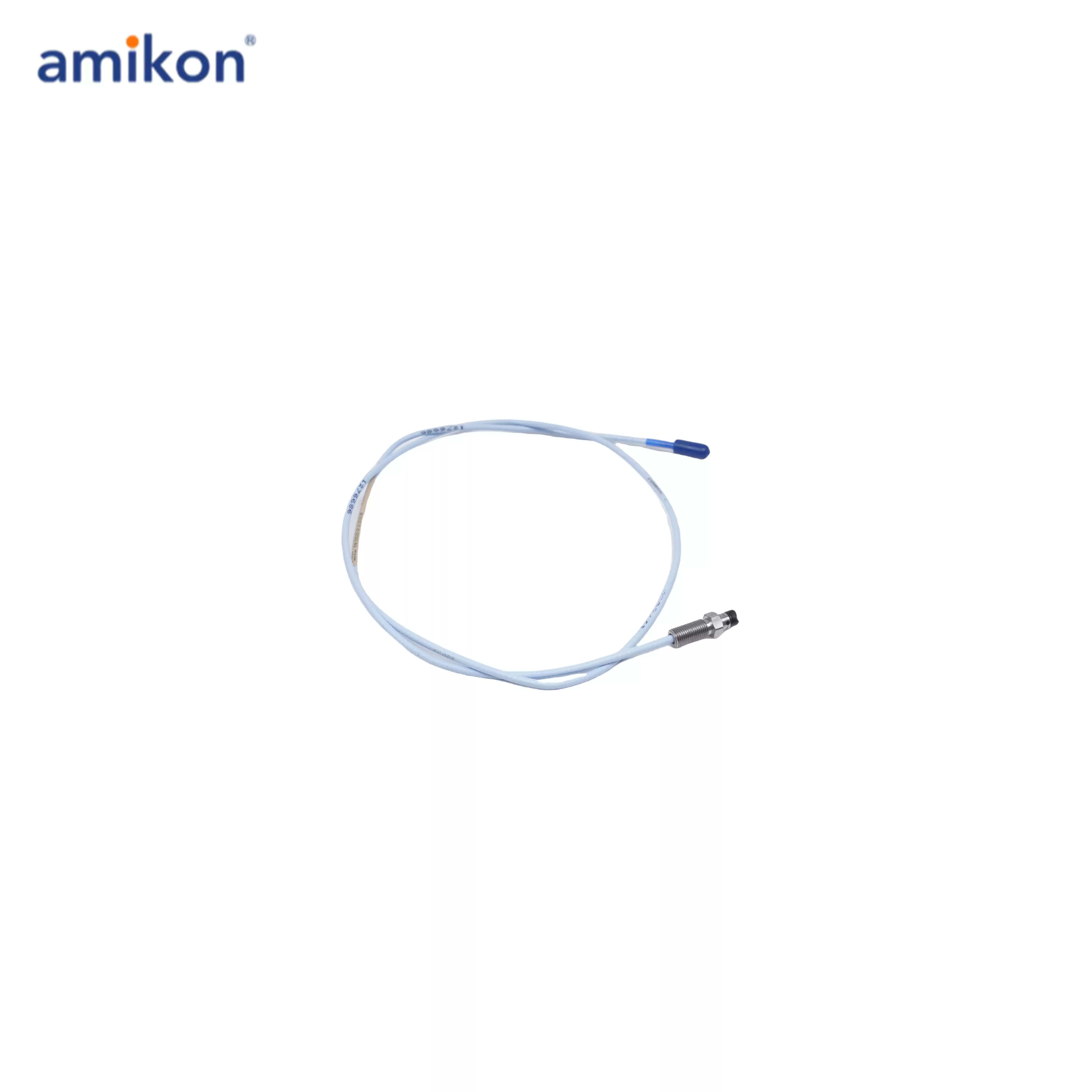

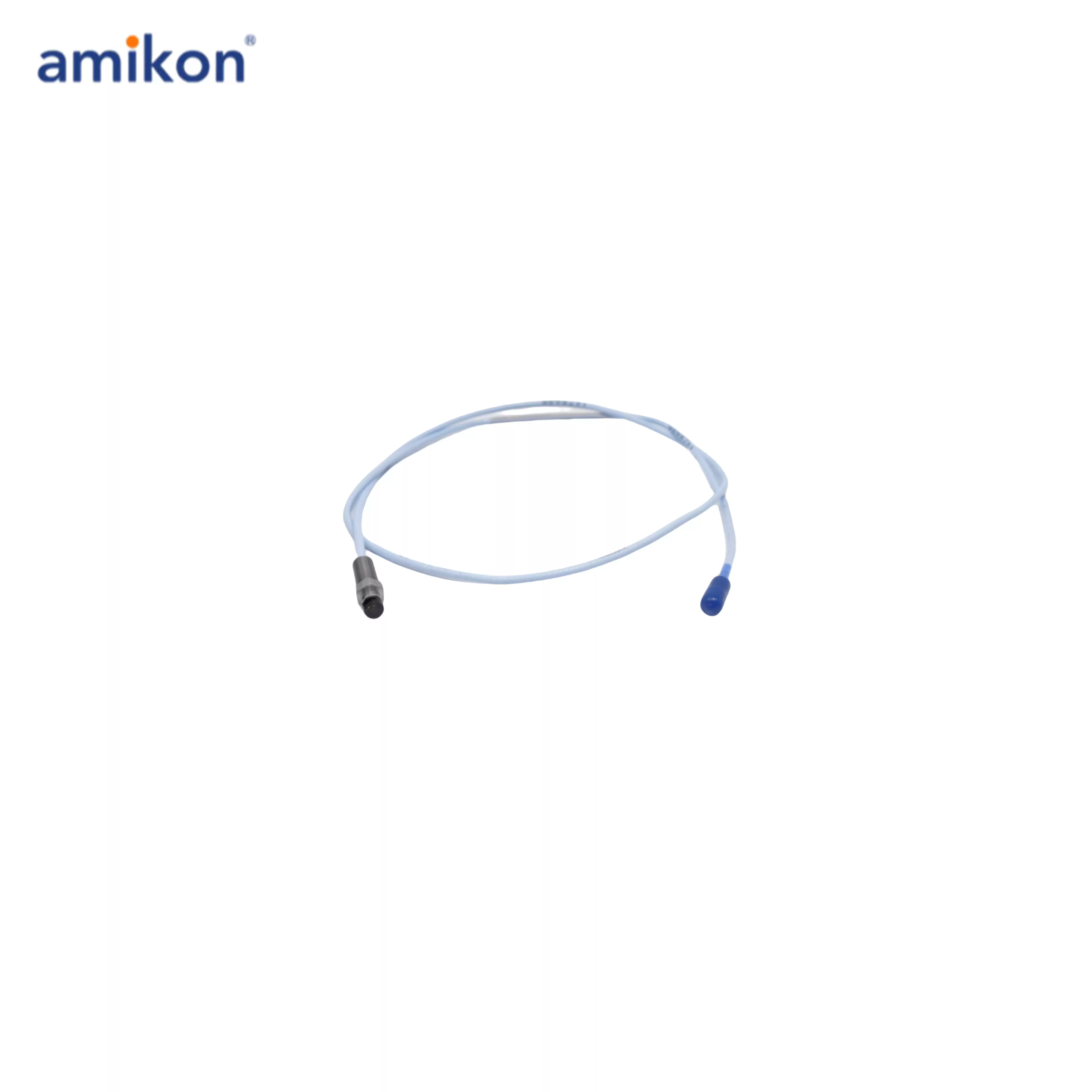

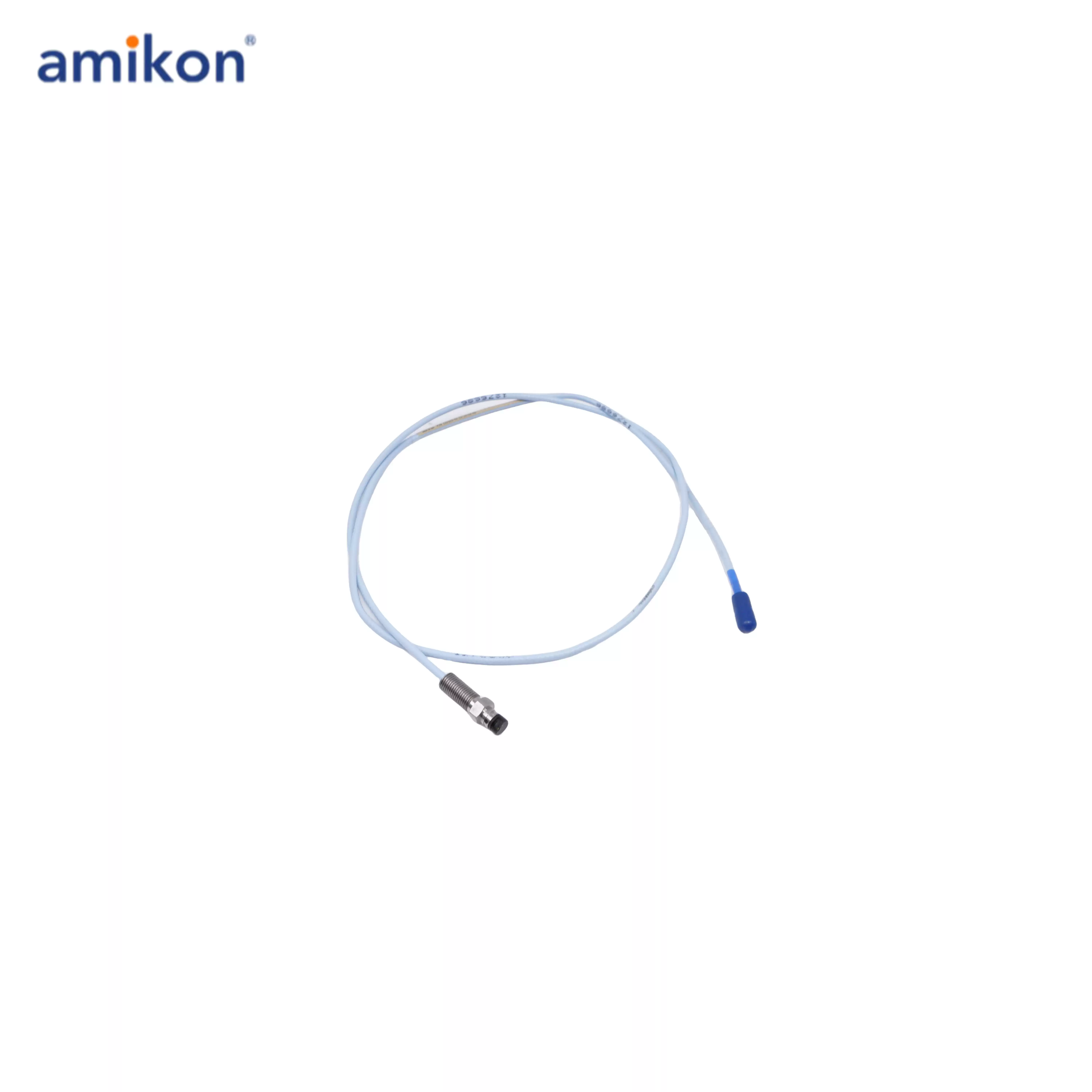

Bently nevada Reverse Mount Probes 330105-02-12-10-05-05

Company infomation:

AMIKON LIMITED gives you access to a global supply of automation parts at your fingertips, ensuring that manufacturers can avoid unnecessary downtime. No matter where in the world, we are committed to helping businesses save millions in lost revenue.

Get in touch with us:

About product:

Specifications:

Part Number: 330105-02-12-05-02-05
Manufacturer: Bently Nevada
Product Type: 3300 XL 8 mm Reverse Mount Probes
Storage Temperature : -51 °C to +177 °C (-60 °F to +351 °F)
Total length option : 10 = 1.0 metre (3.3 feet)
Availability: In Stock
Country of Origin: United States(USA)

330105-02-12-05-02-05 Functional Description：

The system generates an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system's primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
The 3300 XL 8 mm system provides the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-metre system also fully complies with the API 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability.
This level of performance is provided by all 3300 XL 8 mm proximity transducer systems, and complete interchangeability of probes, extension cables, and Proximitor sensors eliminates the need to match or bench calibrate individual components. Each component of the 3300 XL 8 mm Transducer System is backward and interchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducer system components.
This compatibility includes the 3300 5 mm probe, which is useful in applications where an 8 mm probe would be too large for the mounting space.
