Brand:
|
Bently Nevada
|
|
Part Number:
|
330173-00-07-10-02-05
|
|
Model:
|
Sensor Proximity Probe Cable
|
|
Long Description:
|

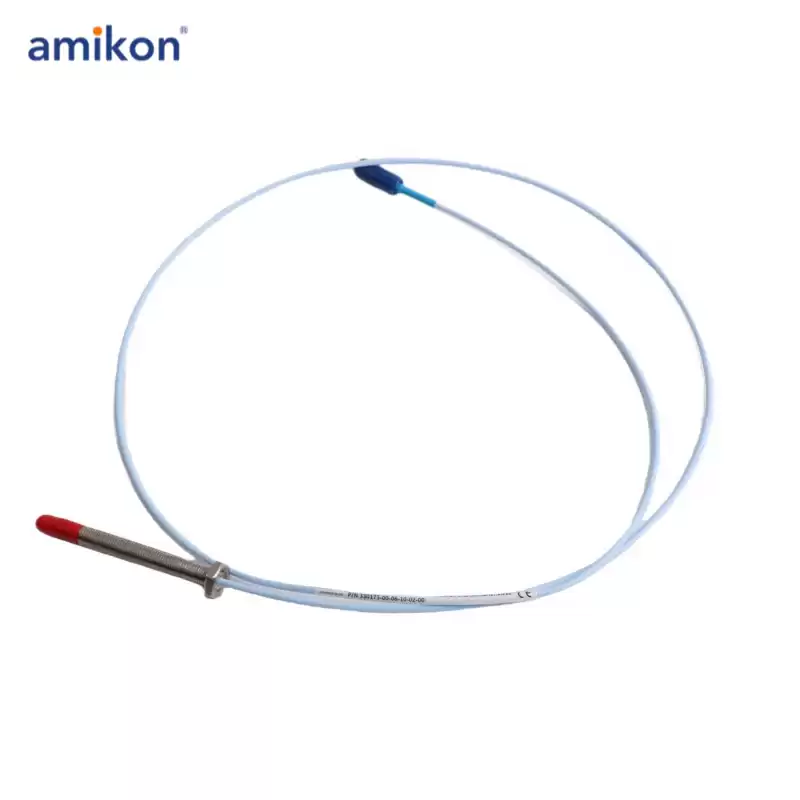

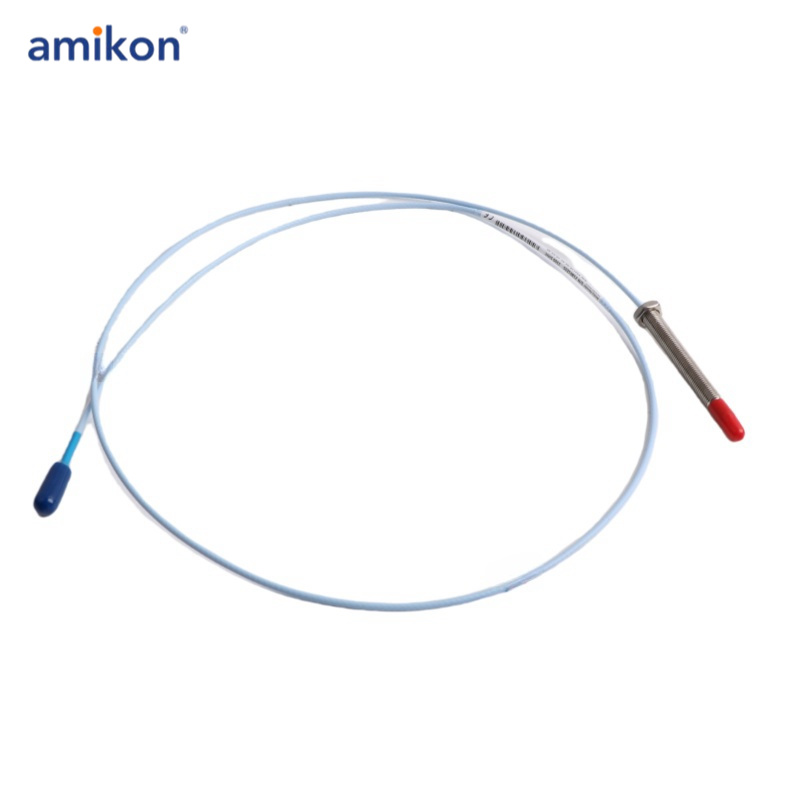

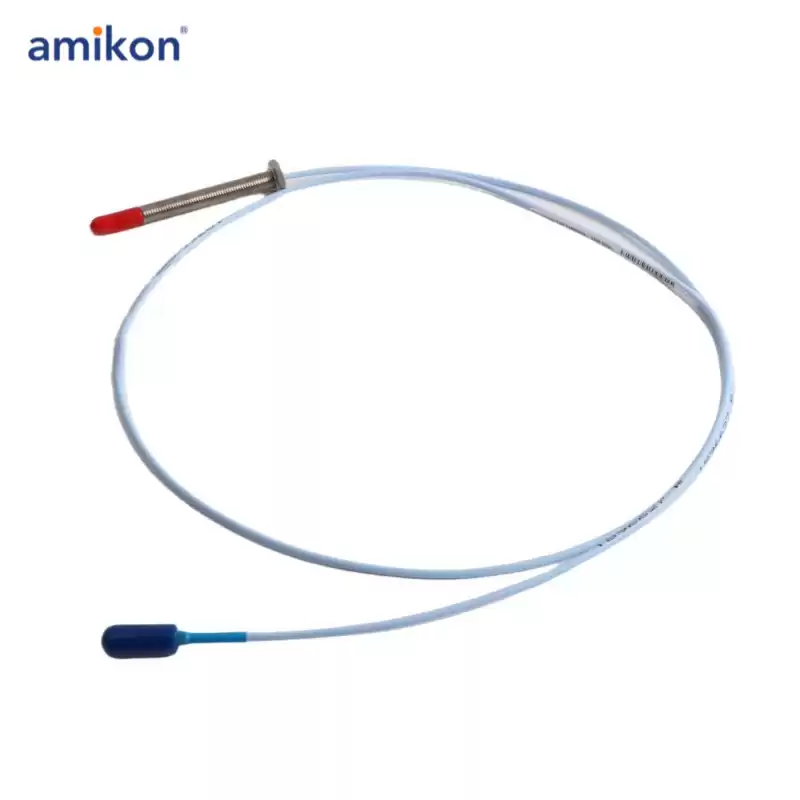

The 3300 XL 50 mm Transducer System consists of a separate 50 mm probe, an extension cable, and a 3300 XL 50 mm Proximitor* Sensor. The large diameter coil gives this system a maximum linear range of 27.9 mm (1100 mils), the longest linear range of our eddy current transducer line. This linear range makes the 3300 XL 50mm Transducer System ideal for measuring the differential expansion (DE) or rotor expansion (RX) of large steam turbine generators that results from the difference in growth rates between the turbine rotor and the machine stator (casing).
Manufacturer : Bently Nevada
Product No. : 330173-00-07-10-02-05
Product type : Sensor Proximity Probe Cable
Unthreaded Length Option : 00 = 0 mm
Overall Case Length Option : 05 = 50 mm
Total Length Option : 10 = 1.0 metre (3.3 feet)
Connector Option : 02 = Miniature coaxial ClickLoc™ connector, standard cable
Agency Approval Option : 00 = Not required
Probe Tip Material: Polyphenylene sulfide (PPS).
Probe Case Material: AISI 304 stainless steel (SST).
|
