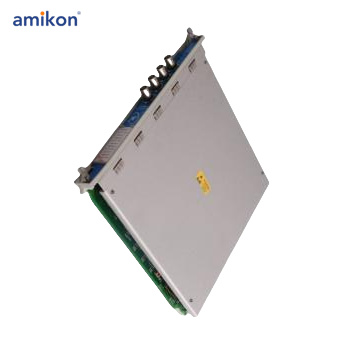

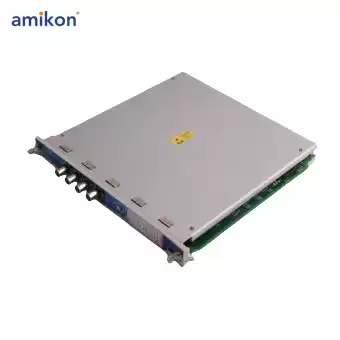

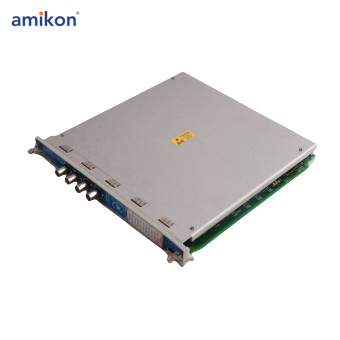

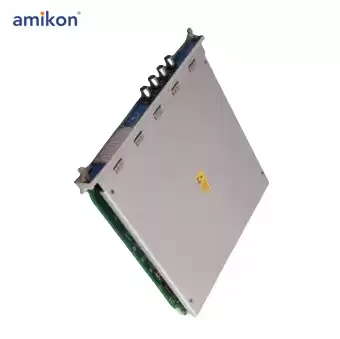

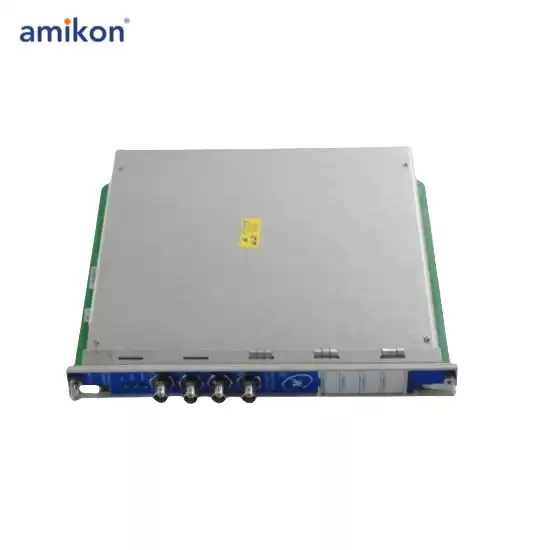

Bently nevada System Integrated PC Display 3500/95
|
3500/95 Types
|
The Bently Nevada 3500/95 System Integrated PC Display is an advanced monitoring solution designed for use with the Bently Nevada 3500 Series Machinery Protection System.
|
This integrated display provides a user-friendly interface for visualizing machine data, system diagnostics, and real-time monitoring of machinery health.
|
Provides accurate and reliable readings for vibration and displacement, essential for effective machinery health monitoring.
|
Parts delivered worldwide
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
DESCRIPTION:
The 3500/95 System Integrated Pc Display provides local or remote visualindication of all 3500 Machinery Protection System information using theincluded 3500 Data Acquisition and Operator Display software. The 3500software allows displays for single or multiple racks. The displayed informationincludes:
System Event List
Alarm Event Lists
Channel status and data
Rack configuration may take place using remote or local access. The designintegrates the display with a 2.0 GHz Celeron based Pc, 40GB hard drive, colorTFT display with touch screen, CD-ROM, Serial/Parallel/USB/Ethernet ports andWindows xP (minimum).
The display is a Panel Mount type that may be located up to 4000 feet from the3500 rack, when using the correct cable option and RS-422 communication protocol.
Specification:
Inputs
Power:AC(90-250 VAC)50/60 Hz
I/O Ports:
(4)-USB 2.0/1.1 Ports(
1)-RS-232 9 pin D-sub
(1)-10/100 Base -T w/ RJ45
(1)-25-Pin D-sub
----------------------------------------------------------
Outputs
Color Display:
10~ VGA (800 x 600l color TFT flat panel
OR
15~ XGA [1024 x 768l color TFT flat panel
OR
17*SXGA11280 x 1024 color TFT flat panel
Displays data in graphical andtext format. visibility is best whenused indoors. Qutdoor wisibility isreduced. For best outdoor use, acovering is recommended. Bulblife is approximately 50,000 hours.
