Standard 8mm Probe : TM0180 = M10×1; without armor
Probe Type : 07
Unthreaded Length : 00 = 00 mm
Case Length : 10 = 100 mm
|
|
Dimensions ：
|
20.5x22.5x3.5cm
|
Weight：
|
0.25kg
|
|
Power Consumption：
|
7.05 watts typical
|
Humidity：
|
90%, noncondensing
|
|
Storage Temperature ：
|
-40°C to +165°C
|
Operating Temperature：
|
0°C to +50°C
|
|

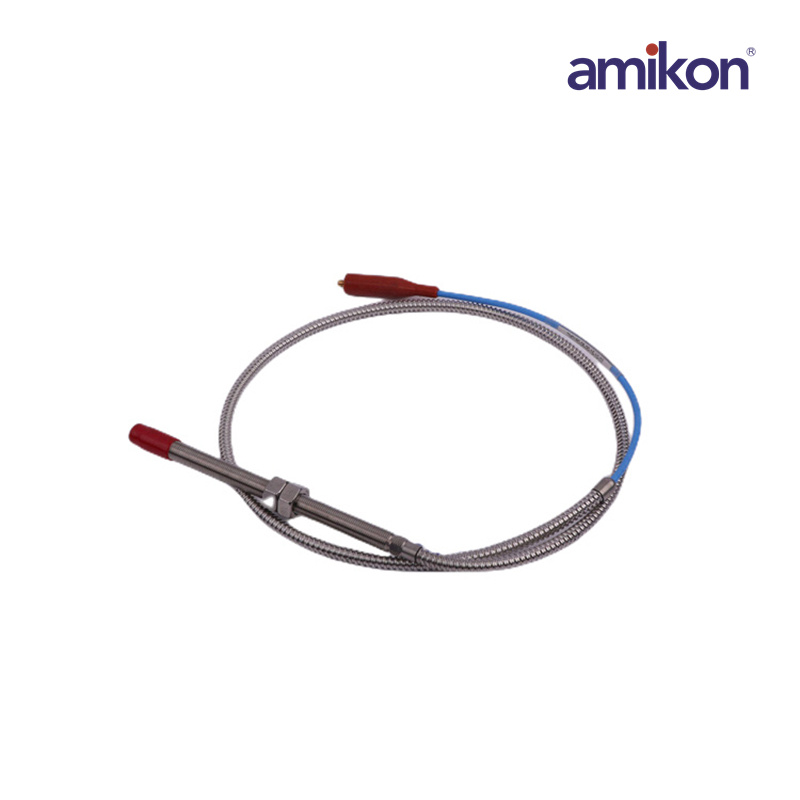

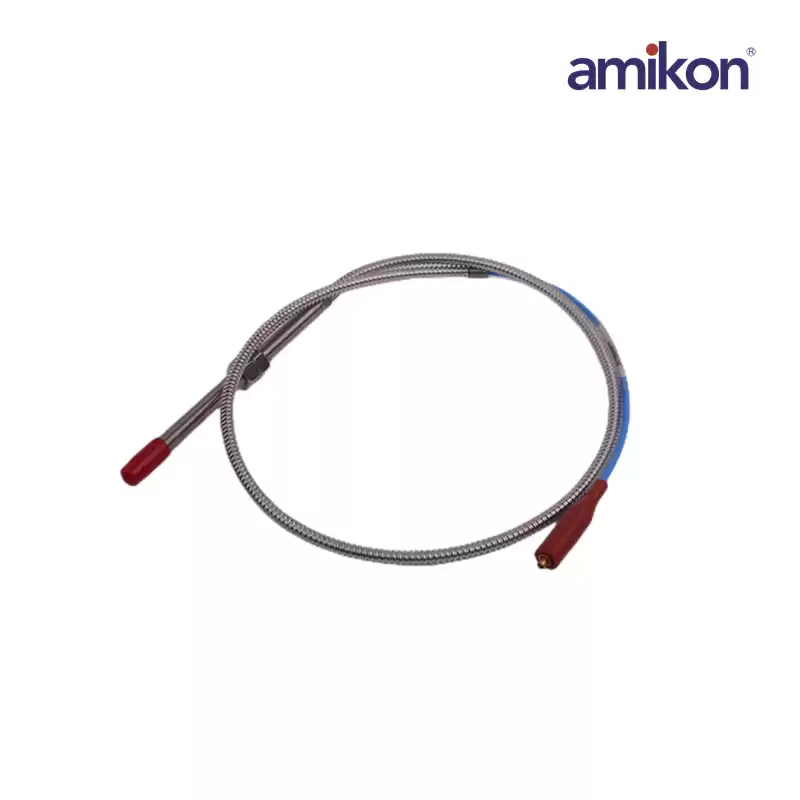

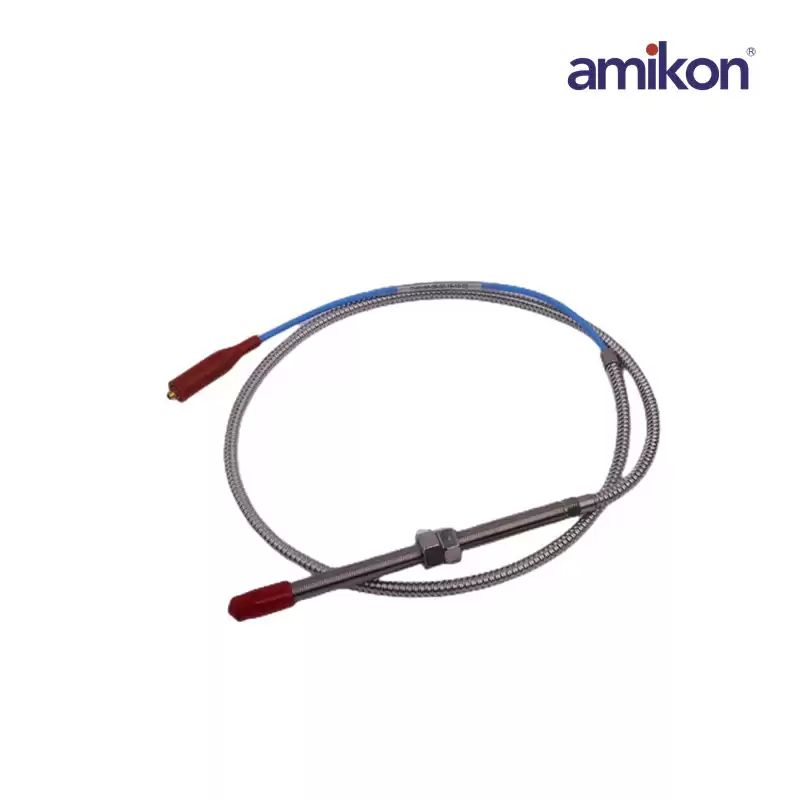

The TM0180-08-00-15-10-02 is 8mm Proximity Probe.The TM series proximity probe systems are designed tomeet API 670 standards. Each system consists of a probe,extension cable, and a driver. PVTVM’s transmitters (DTMand TR series) can directly interface with the probe andextension cable; therefore, eliminating the need of a probedriver. This smart design allows for easier field installationand greater economical benefits.
The TM0180 (8mm) probes aredesigned for long life cycles and are suitable for harshenvironments. PVTVM realizes one of the most significantproblems in proximity probe installations are ground loopsand loss of isolation due to damaged cable jackets.PVTVM’s custom rugged cable jacket prevents the probecable from breaking and tearing and is highly resistive tocorrosive environments.
|
