Bently nevada Velomitor CT Velocity Transducer 190501-00-00

Brand new and original sealed//Same Day Shipment


  • Warranty PeriodOne Year Warranty
  • Dimensions12cmx10cmx8cm
  • Weight0.3KG
  • Country of OriginUSA
  • Brand/ManufaturerBently Nevada
  • Payment Term100% Advance Payment T/T Bank Wire Transfer

Company infomation:

AMIKON LIMITED gives you access to a global supply of automation parts at your fingertips, ensuring that manufacturers can avoid unnecessary downtime. No matter where in the world, we are committed to helping businesses save millions in lost revenue.


Get in touch with us:

Sales Manager

E-mail

WhatsApp

Wechat

Lisa

sales7@amikon.cn

+86 18965423501

AMKPLC


About product:

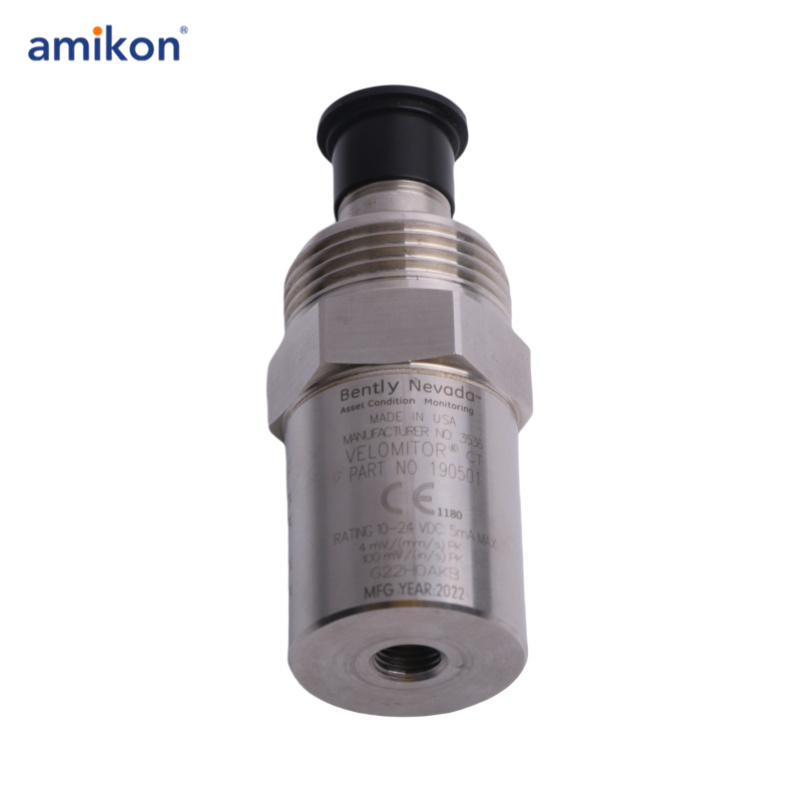

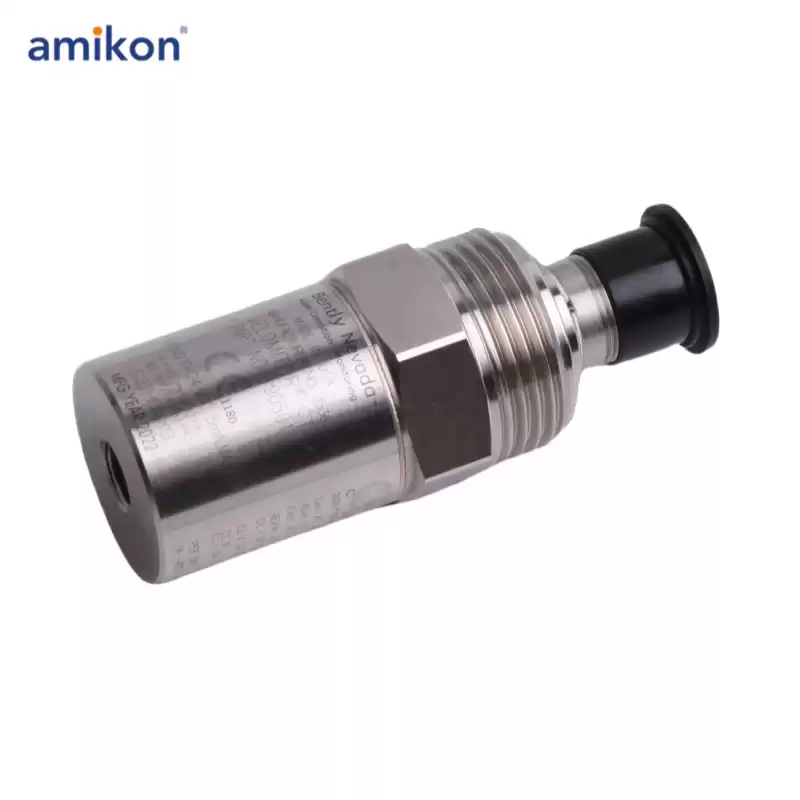

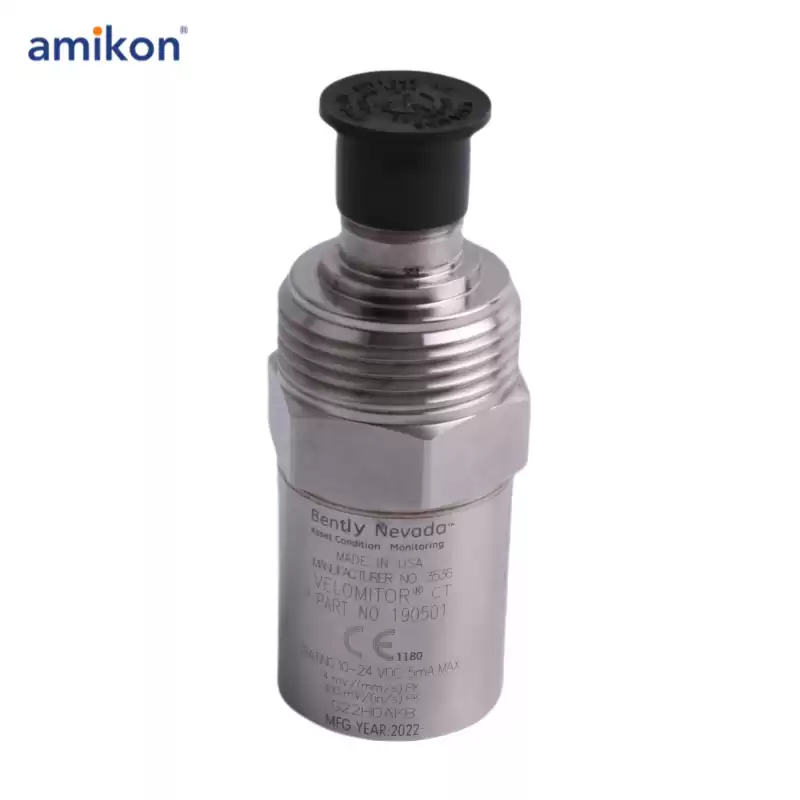

Bently nevada Velomitor CT Velocity Transducer 190501-00-00

190501-00-00    Types


190501 is a Velomitor CT Velocity Transducer Manufactured by Bently Nevada and used in Machinery Condition Monitoring.

A low-frequency variation of the Velomitor Piezo-velocity Sensor is the Velomitor CT Velocity Transducer. Its design takes into account the casing vibration velocity of the cooling tower and air-cooled heat-exchanger fan assemblies that run at or above 90 rpm (100 to 300 rpm typical).

Velomitor CT Transducer can detect amplitudes of vibration at these frequencies, as well as those produced by the fan motor and speed reducer.

Parts delivered worldwide

Award-winning service

More than 25 in stock

Full 12-month warranty

 We deliver worldwide


Characteristics
Weight: <297 g (10.5 oz.)
Mounting Surface: 33 mm diameter (1.3 in diameter)
Height: 82 mm (3.2 in)
Case Material:316L stainless steel
Low-Frequency
Casing Vibration Velocity is measured.
Cooling Towers and Air-Cooled Heat-Exchanger Fan Assemblies are compatible.

Mechanical Characteristics
33 mm diameter mounting surface (1.3 in diameter).
82 mm in height (3.2 in).
316L stainless steel is used for the case. MIL-C5015 2-pin 316L stainless steel connector, top.
4.5 N-m 0.6 N-m (40 in-lbf 5 in-lbf) mounting torque
When the velocity is measured from the bottom to the top of the transducer, Pin A becomes positive in relation to Pin B.
Angle of Mounting: Any orientation.

Configuration
Plate Stud M6x1 to M6x1 with 3/8-in 24 Adapter
MIL-C-5015 Connection Interface
Multiple Approvals
Environmental Limits
Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +100°C
Shock Limit: 5000 g pk, maximum.
Humidity Limit: 100% condensing,non-submerged.
Magnetic Field Susceptibility: <0.0068 mm/s/gauss (0.268mil/s/gauss) @ 50 gauss, 50-60Hz
