Product Features:
1.Sensitivity:
3.94mV/mm/s (100 mV/in/s) ±5%.
2.Frequency range:
Frequency range adjusted downward to 3.0 Hz to 900 Hz ±1.0 dB or 1.5 Hz to 1.0 kHz ±3.0 dB to enable velocity sensor to measure vibration for fans running as low as 90 rpm.
3.Cabling:
Up to a maximum cable length of 305 m (1,000 ft).

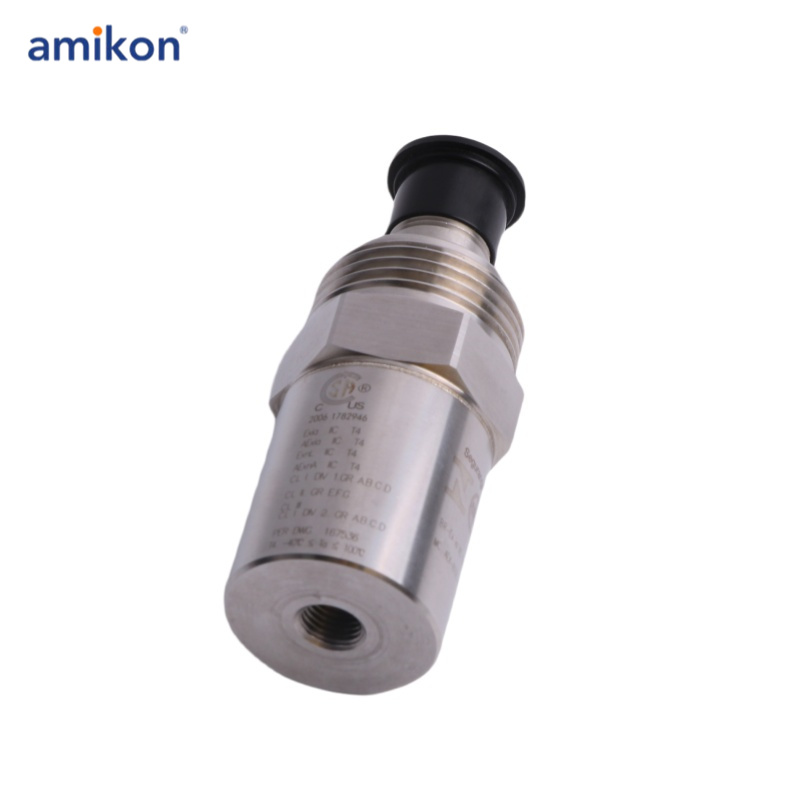

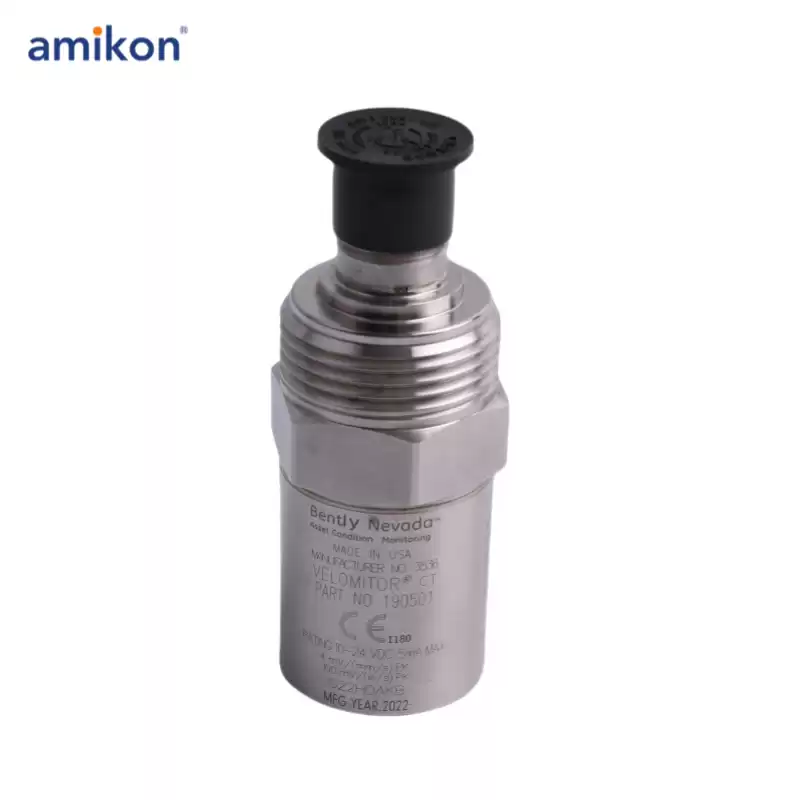

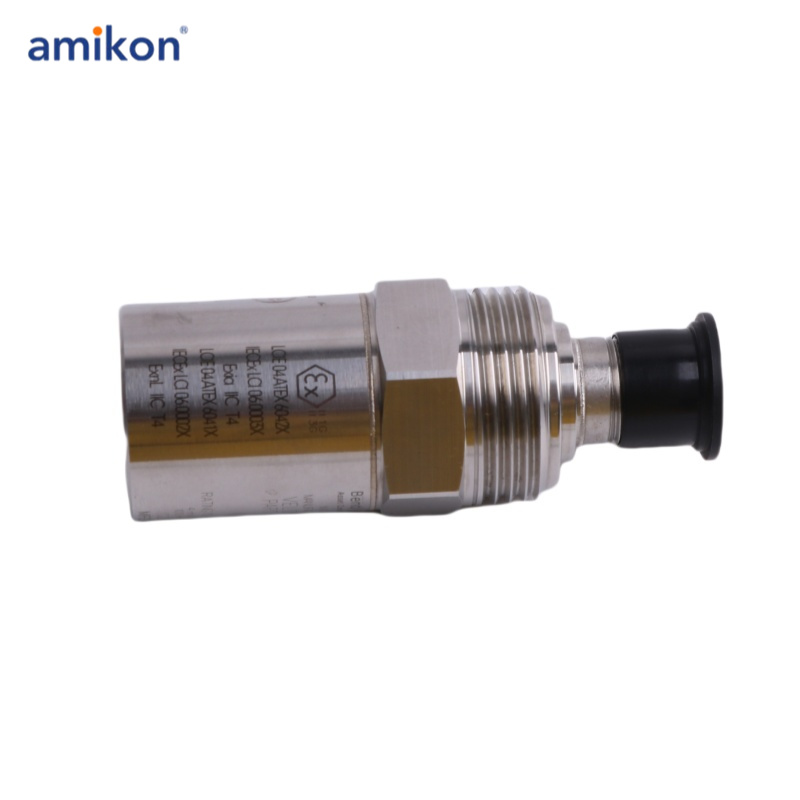

The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical).
The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.
|
Most common machine malfunctions (unbalance, misalignment, etc.) occur on the rotor and originate as an increase (or at least a change) in rotor vibration. For any individual casing measurement to be effective for overall machine protection, the system must continually transmit a significant amount of rotor vibration to the machine casing, or mounting location of the transducer.
|
In addition, be careful to install the accelerometer transducer on the bearing housing or machine casing. Improper installation may decrease the transducer amplitude and frequency response and/or generate false signals that do not represent actual vibration. Refer to the appropriate instruction manuals and Application Notes. Upon request, Bently Nevada provides engineering services that can identify the appropriate machine housing measurements and installation assistance if needed.
