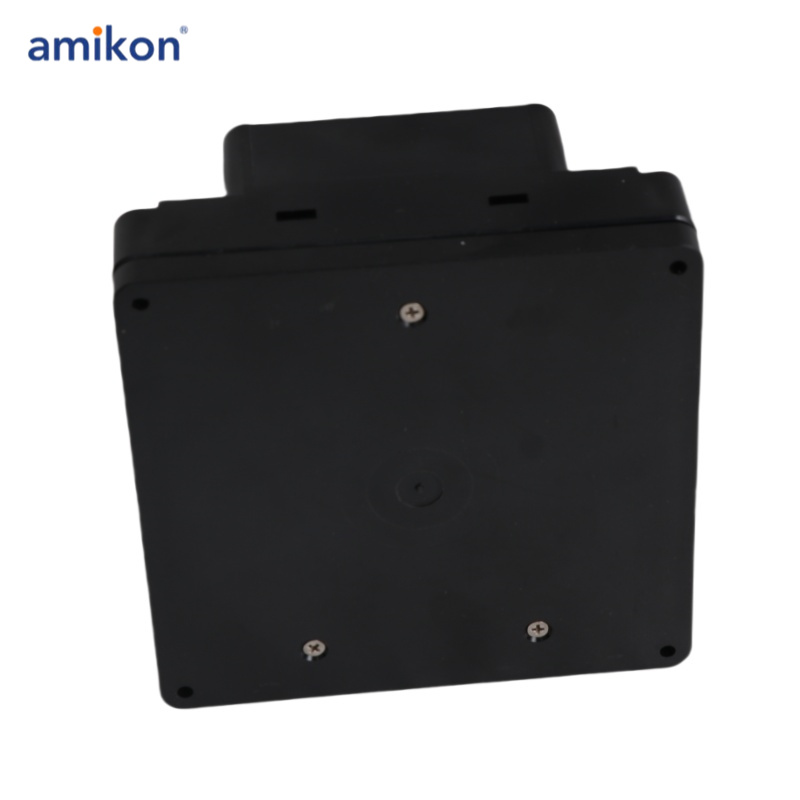

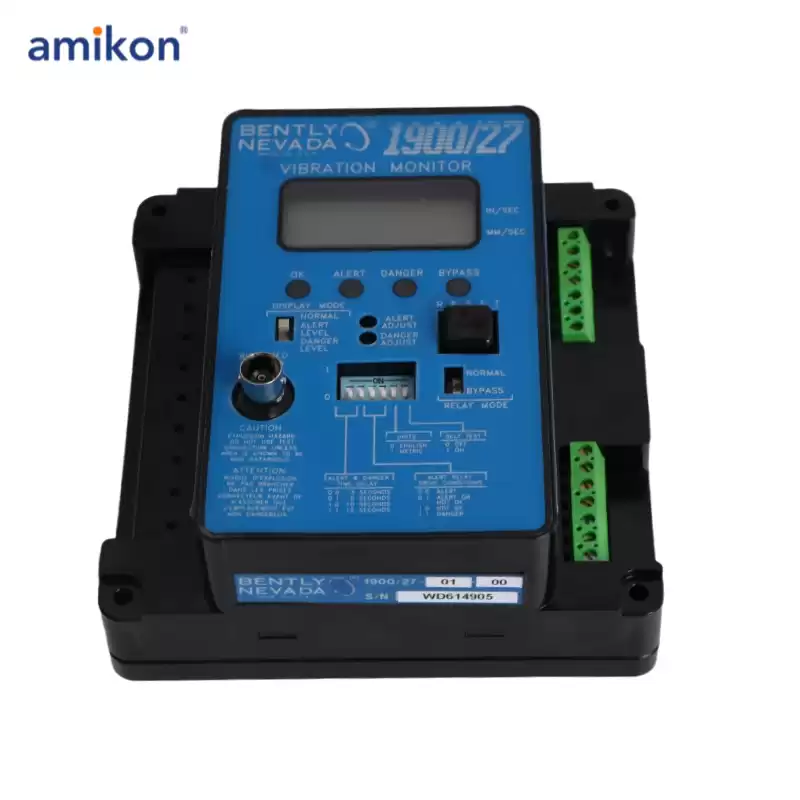

Bently Nevada Vibration Monitor Module 1900/27-03
|
|
1900/27-03 Types
|
The 1900/27 is a single-channel, stand-alone, locally mounted vibration monitor.
It can be used as a stand-alone machinery protection device, suitable for general-purpose or some essential machinery and provides a built-in 4-20 mA interface for trending the monitored parameter in plant control and automation systems.
|
|
The 1900/27 accepts a single transducer input from compatible Trendmaster® 2000 accelerometers, conditions the signal into peak velocity units, and provides local display and status indication as well as alarm relay contact outputs for connection to an external annunciator.
|
|
By using an optional Rack Buffered Output Transducer Interface Module (TIM),the 1900/27 can also be used in conjunction with our Trendmaster 2000 system.
It allows the user to apply machinery protection capabilities to all (or selected) seismic vibration points of the Trendmaster 2000 system.
|
|
Parts delivered worldwide
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
|
Specification
|
Details
|
|
Inputs
|
|
|
Compatible Transducers
|
Bently Nevada 200150 and 190520 Accelerometers
|
|
Input Sensitivity
|
100 mV/g
|
|
Maximum Acceleration
|
20 g peak
|
|
Maximum Differential Input Voltage
|
4 volts peak to peak
|
|
Power
|
|
|
AC/HDC Power Version
|
|
|
AC Voltage
|
85 to 264 Vac
|
|
DC Voltage
|
110 to 370 Vdc
|
|
Current Draw
|
60 mA (typ.), 120 mA (max.)
|
|
Frequency
|
47 Hz to 440 Hz, or DC
|
|
Inrush Current
|
20A (typ.) @ Vin=100Vac, 40A (typ.) @ Vin=200Vac
|
