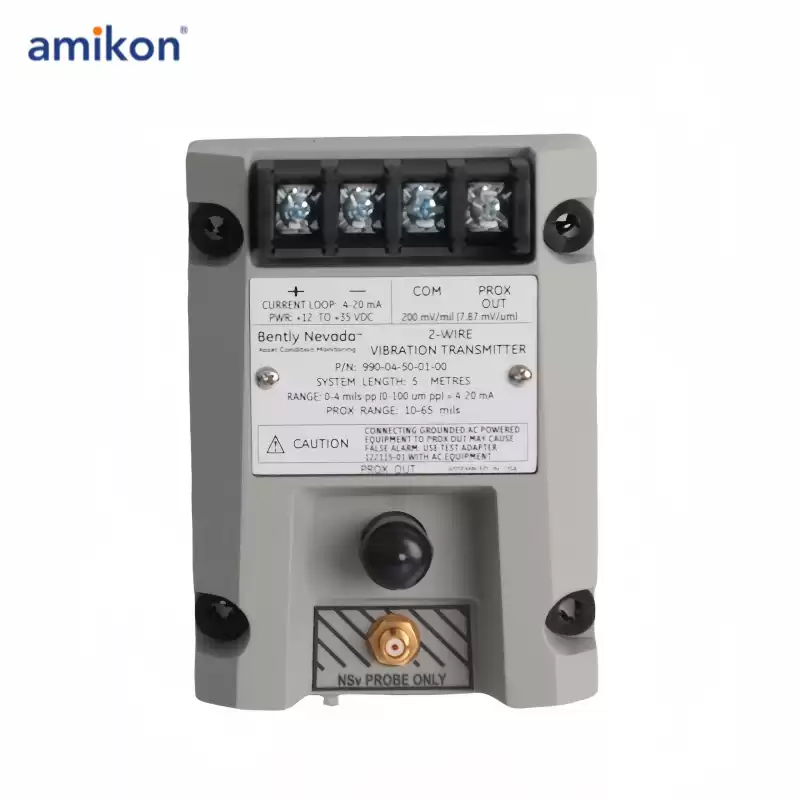

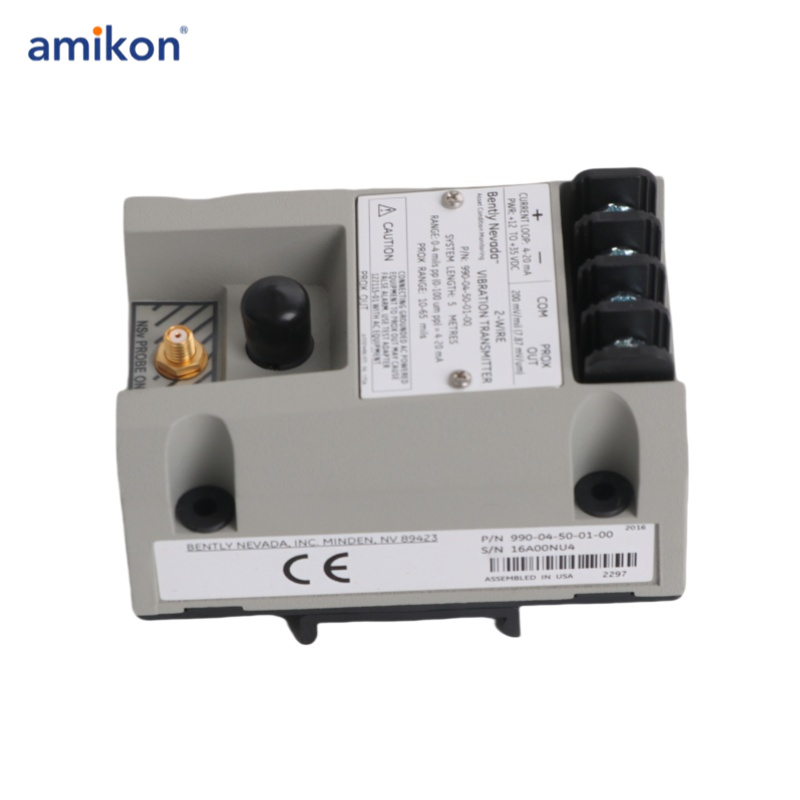

Bently Nevada Vibration Transmitter 990-04-50-01-05

Bently Nevada  Vibration Transmitter 990-04-50-01-05

The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as
the input to their machinery control system. The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system
length options).
The transmitter conditions the signal into appropriate peakto-peak vibration amplitude engineering units, and provides this value as a proportional 4 to 20 mA industry-standard signal as the input to the control system where machinery
protection alarming and logic occurs.

Manufacturer : Bently Nevada
Product No. : 990-04-50-01-00
Product Type : 990 Vibration Transmitter
Full-scale Option : 0 4 - 0-4 mils pp (0-100 μm pp)
System Length Option : 5 0 - 5.0 metres (16.4 feet)

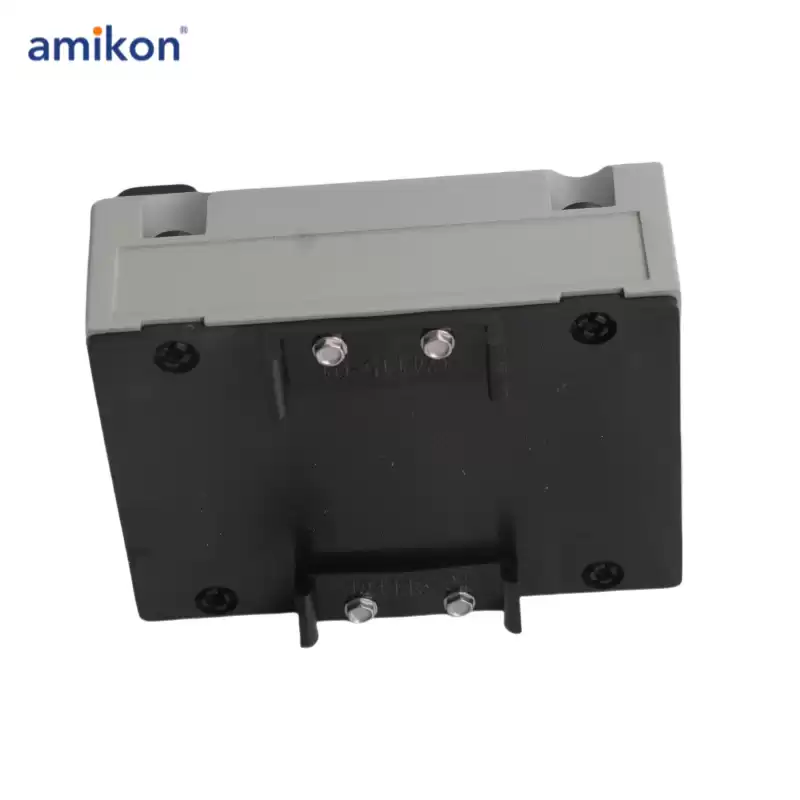

Mounting Option : 0 1 - 35 mm DIN rail clips
Agency Approval Option : 0 0 - Not required
Input : Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable.
Power : Requires +12 to +35 Vdc input at the transmitter terminal.
Maximum Loop Resistance : 1,000 Ω including cable at 35 Vdc.
Current Limiting : 23 mA typical.
