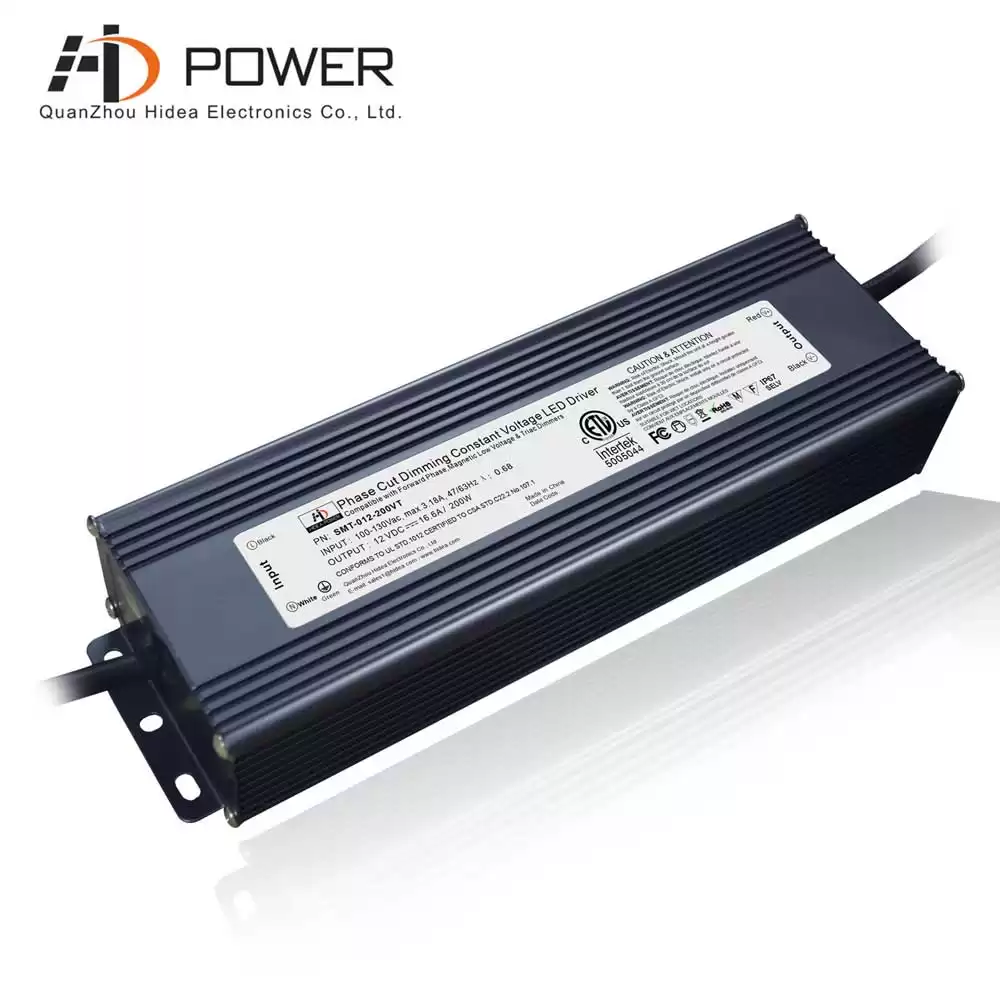

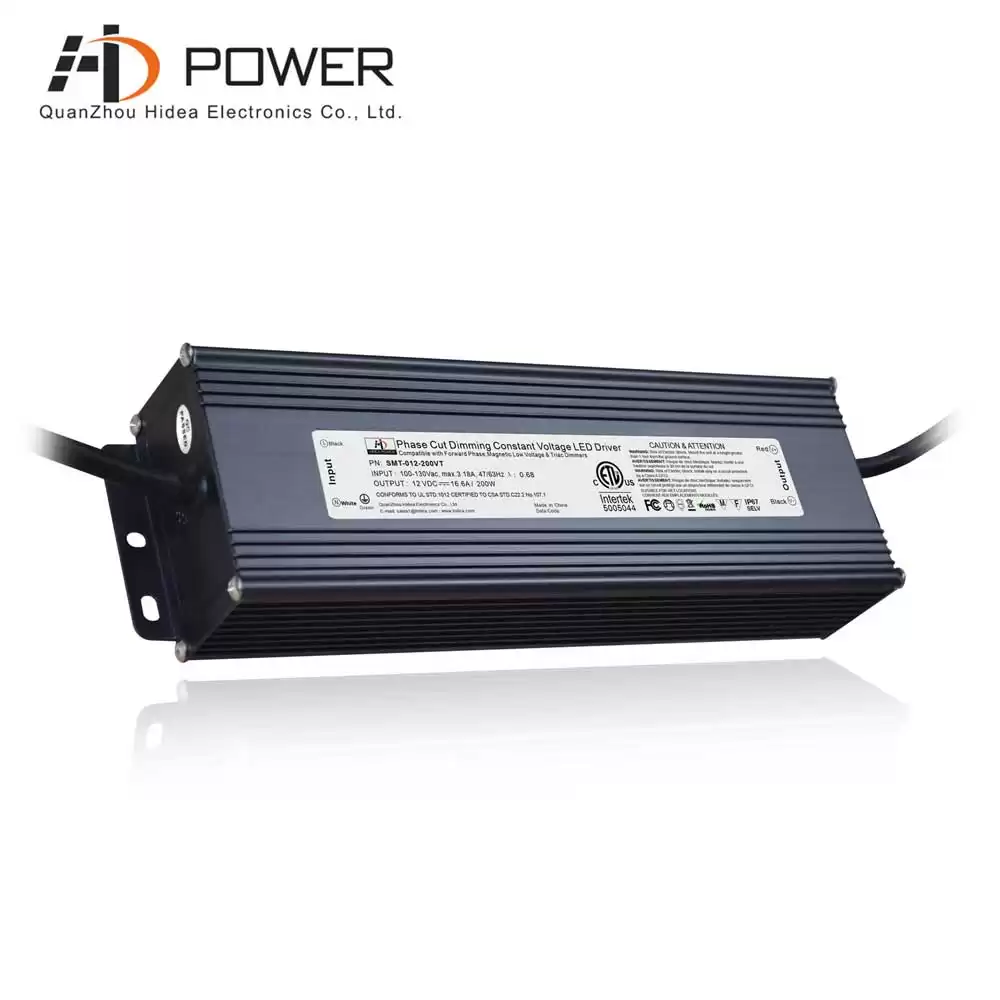

SMARTS's 200W triac dimming led driver complies with international LED power safety standards. It can be used for lamps of different brands in many countries, such as Litetronics Led Luminaires 150w.
Specification
|
Model
|
SMT-012-200VT
|
SMT-024-200VT
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
16.66A
|
8.3A
|
|
Rated power
|
200W
|
|
Input
|
Voltage Range
|
100~130VAC
|
|
Frequency Range
|
50~60HZ
|
|
Power Factor
|
0.65(Full loading)
|
|
Efficiency(Typ.)
|
83%
|
85%
|
|
AC Current(Max.)
|
3.2A
|
3.2A
|
|
Leakage current
|
﹤0.50mA/120VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recover automatically after fault condition is removed
|
|
Over Current
|
≤1.2*I out
|
|
Over temperature
|
100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down.
|
|
Over Loading
|
≤120%
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~95%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,5G 12min./1 cycle,period for 72min. each along X,Y,Z axes
|
|
|
Safety standards
|
UL1012
|
|
|
Withstand voltage
|
I/P-O/P:1500VAC
|
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
Safety&EMC
|
EMC EMISSION
|
FCC Part 15 B
|
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6,11(Surge 4KV)
|
|
Others
|
Weight
|
1.65Kg
|
With junction 2.38Kg
|
|
Size
|
256*78*47mm (L*W*H)
|
406*87*60mm (L*W*H)
|
|
packaging
|
305*295*210mm 10PCS/CTN
|
445*350*205mm 10PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃ of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
|
3.Loading should be 5-100%.
|
Compatible Light Type
SMT-012-200VT is a ETL,CE,ROHS,FCC listed rated 12v 16.67a 200 watt triac dimming led driver, the led drivers for AC & DC wires is about 20MM. this led driver is suitable for working with Led Luminaires of Litetronics dim to warm type.
Related Products
|

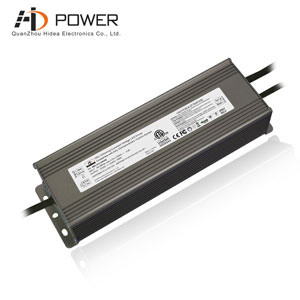

 IP67 dali dimming 200w 12v constant voltage ETL, 100-265vac for North America and Europe market...
