Laser welding replaces TIG.Laser welding is more accessible and affordable than ever，Hand held Laser Welding Machine can be used for Varieties of workpieces, welding at any angles.Titanium Laser Beam Welding High is one of the laser welding .Laser welding machine features higher welding efficiency,no need solder wire, small heat affected zone, solid and beautiful welding joints.
Handheld laser welding machine is at present applying to much different welding fileds, such as stitch welding, stack welding, vertical welding (T-type, L-type), etc.
Lighter handc held torch design, make welding easier and more convenient.is very popular in 3D welding and cutting industries.
ND18 Hand-held wobble laser welding head+System solution
1.This welding head could be widely used in complex and irregular welding process such as cabinets, kitchen, staircase, shelf, gridiron, stainless steel door and window guardrail, distribution box, stainless steel furniture and other industries. It is a perfect replacement of traditional argon arc welding, in welding thin stainless steel plate, iron plate, aluminum plate and other metal materials.
2.Smart internal design and interactive control system expand the tolerance range and welding width of the processing parts, and solve the disadvantage of minor laser welding spot, and provide better welding forming.
3.Light shape, Ergonomic design, advanced structure, and reliable performance ensure comfort grip and simple operation.
4.Nice welding seam, fast welding speed, no consumables, no welding marks, no discoloration, no later polish.
5.This head could be equipped with a variety of angular nozzles to meet the welding needs of different products.

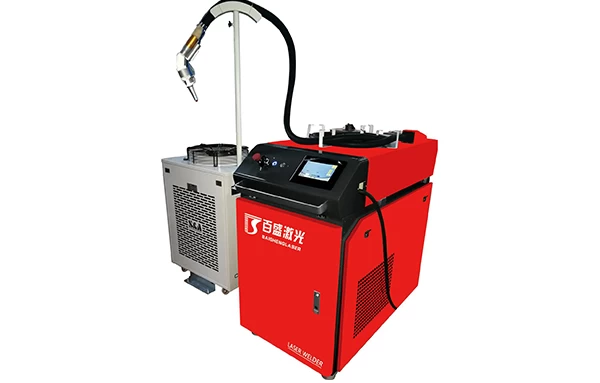

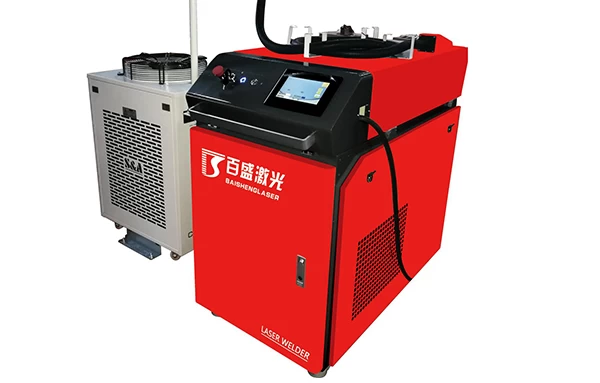

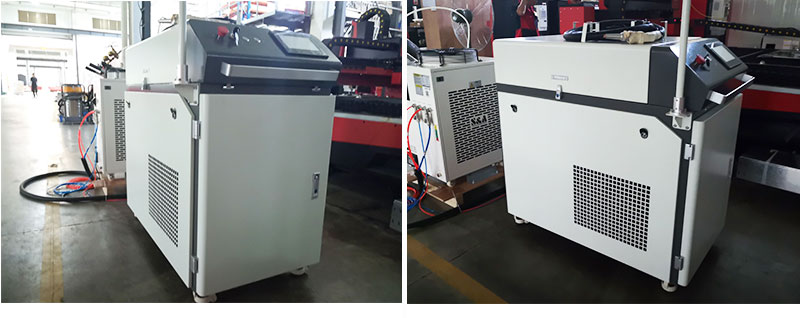

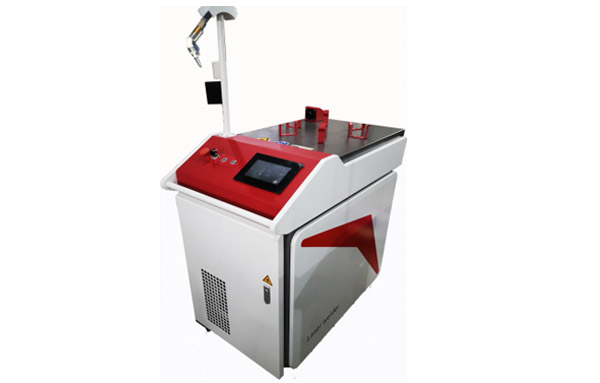

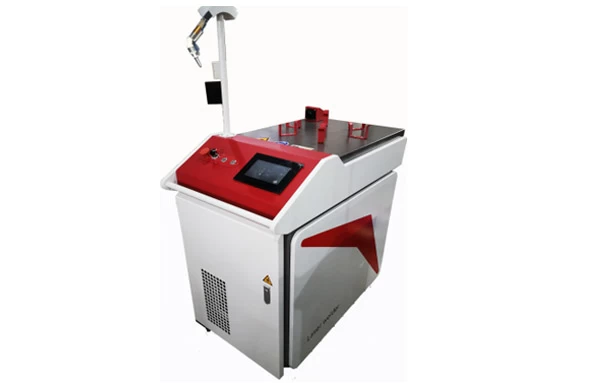

Figure 1: smaller footprint laser welder ,all-in-one design ,laser source ,water chiller stowed inside the cabin.

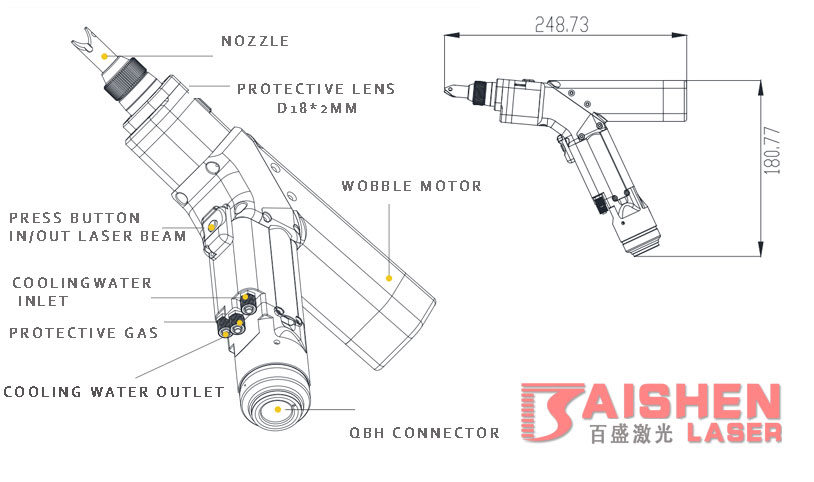

Figure 2-WSX ND18 WOBBLE MINI WELDING HEAD. This laser head exclusive for max 1500W laser welding application .molten depth up to 4mm.
F

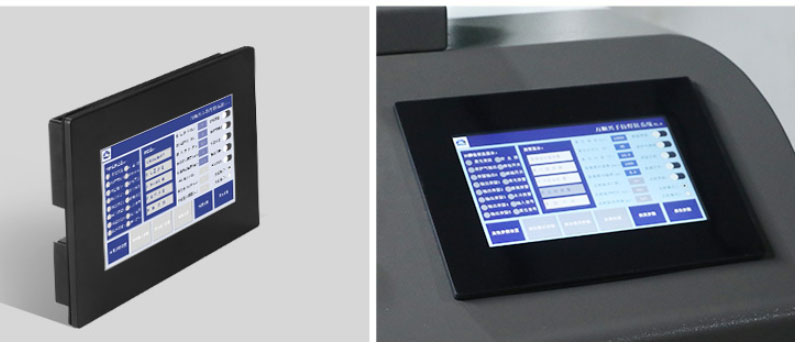

Figure 3 -7 inches touch screen WSX control display
Specifications
|
hand held laser head
|
ND18
|
China WSX brand
|
|
system
|
WSX welding system
|
|
|
manual welding head
|
WSX 3D head
|
WSX system
|
|
laser
|
RFL-C1500
|
Raycus
|
|
water chiller
|
CWFL-1500
|
S&A brand
|
|
wave length
|
1070±20 nm
|
|
|
laser Incident Mode
|
coaxial
|
|
|
head connect way
|
QBH
|
|
|
collimating lens
|
50mm
|
|
|
focus length
|
80/120mm
|
|
|
adjustable width
|
0-4mm
|
|
|
head weight
|
1.36kg
|
|
|
thickness of welding
|
CS/ 0.5—4.0mm/ SS/ 0.5-4.0mm
|
1500w
|
|
speed
|
CS thickness of welding
0.5mm max4m/min
1mm max1.5m/min
2mm max 0.5m/min
SS thickness 0.5m max5m/min
1mm max 2.5m/min
2mm max 0.5m/min
Aluminum 0.5mm max speed3m/min
1mm max 1.5m/min
1.5m max 0.5min /min
|

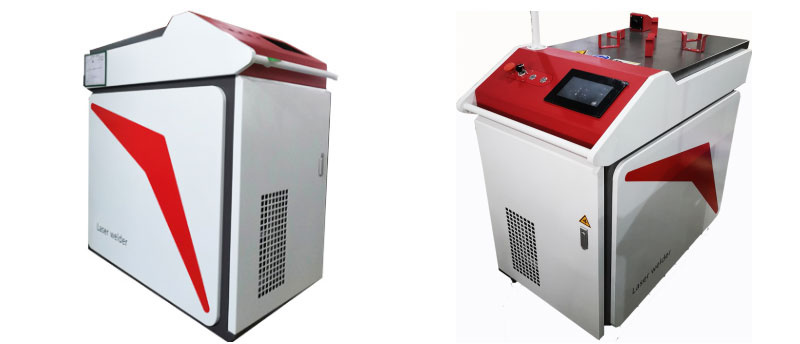

FIGURE 4-READY STOCK -Delivery Period :7-10 days.
Figure 5 -WORKSHOP
APPLICATIONS
Laser welding has numerous advantages and benefits, Laser welded mild steel tube, two sheet -right angle welding together. flat welding of two sheets.
Speed of laser welding
With laser welding, it is easy to reach weld speeds of 5 m/min, which is higher than that from conventional TIG welding, but lower than that from induction welding. However, the laser can reach these speeds even on thicker materials; it depends on laser power .laser head and the buyer budget.
Weld seam properties
A weld seam made by any technology has three basic zones – molten zone, heat affected zone, and transition zone in the basic material. Laser welding makes the seams narrower because of fast cooling rates, an advantage because this produces low distortion and low heat degradation of the basic material
